Product Presentation; Intended Use - RCT Power Storage DC 8.0 Manual

3 Product Presentation

Intended use

3.1
Power Storage DC 8.0 and 10.0 are stationary 3-phase inverters with integrated battery charging unit.
The energy received from the connected solar generator and the battery is converted into grid-compliant AC current and fed
into the grid. PV energy can also be charged directly into the battery on the DC side.
Please note:
The Power Storage DC is not designed for other use cases or connections to other devices.
Any deployment of the device that is different from the intended use is considered a misuse.
RCT Power GmbH is not liable for damages resulting from misuse of the device.
Any misuse terminates the warranty, guarantee and general legal liability of the manufacturer.

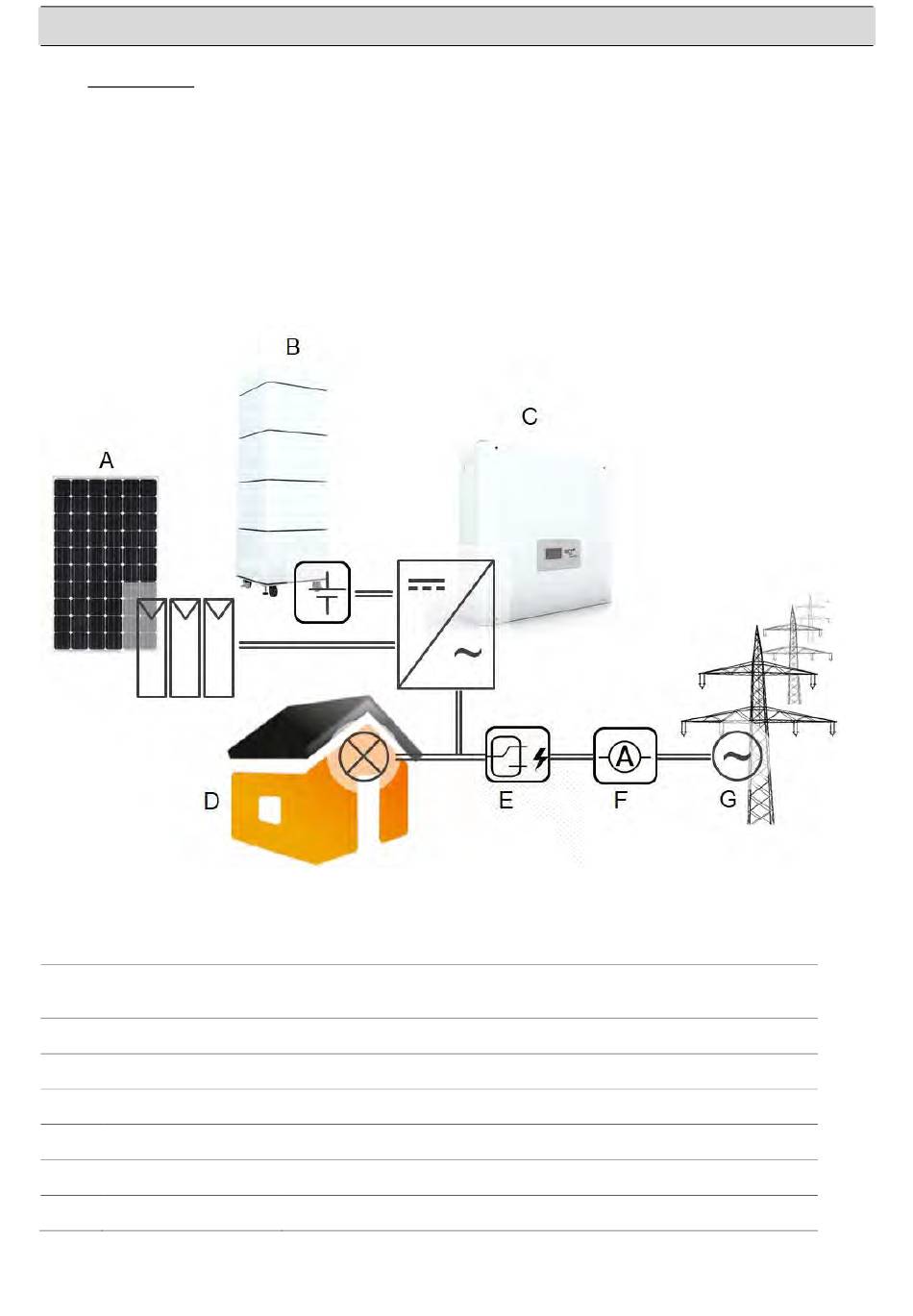

3-1 Intended use of the Power Storage DC with the Power Battery in the PV system.
Pos Description
A
PV Generator
B
Battery
C
Inverter
D
Household
E
Power Switch
F
Power Sensor
G
Public grid
Comment
Monocrystalline silicon; polycrystalline silicon and thin film without
grounding and protection class II
Power Battery 3.8, 5.7, 7.6, 9.6, 11.5
Power Storage DC 8.0, 10.0
Domestic electricity consumers
Switches to island operation mode in the event of a power failure.
Current sensors for AC power measurements
TT, TN-C, TN-S, TN-C-S
