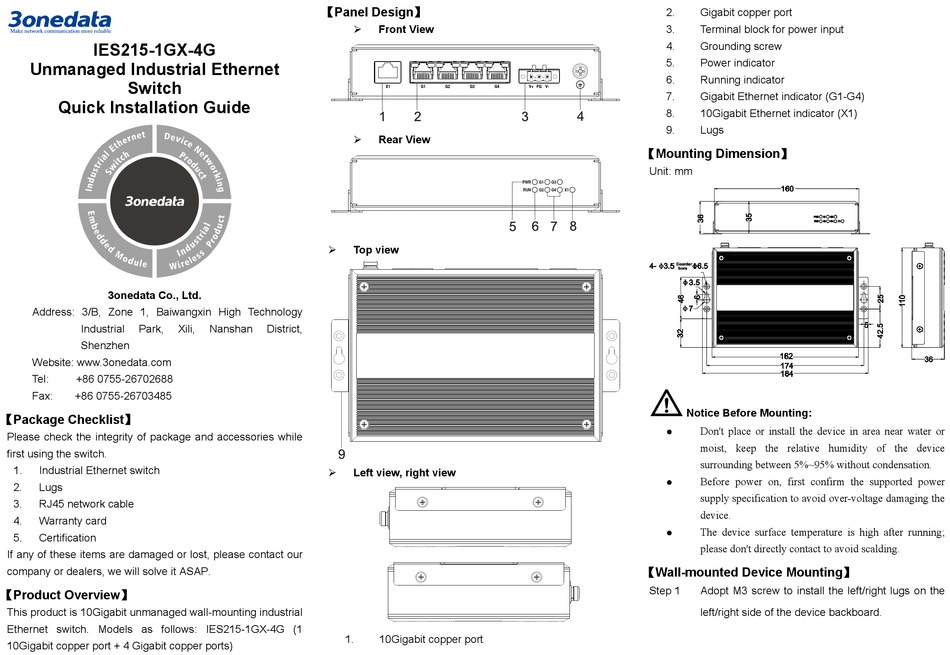

3onedata IES215-1GX-4G Quick Installation Manual

IES215-1GX-4G
Unmanaged Industrial Ethernet
Switch
Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili,
Shenzhen
Website: www.3onedata.com
Tel: +86 0755-26702688
Fax: +86 0755-26703485
【Package Checklist】
Please check the integrity of package and accessories while
first using the switch.
1. Industrial Ethernet switch
2. Lugs
3. RJ45 network cable
4. Warranty card
5. Certification
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】
This product is 10Gigabit unmanaged wall-mounting industrial
Ethernet switch. Models as follows: IES215-1GX-4G (1
10Gigabit copper port + 4 Gigabit copper ports)
【Panel Design】

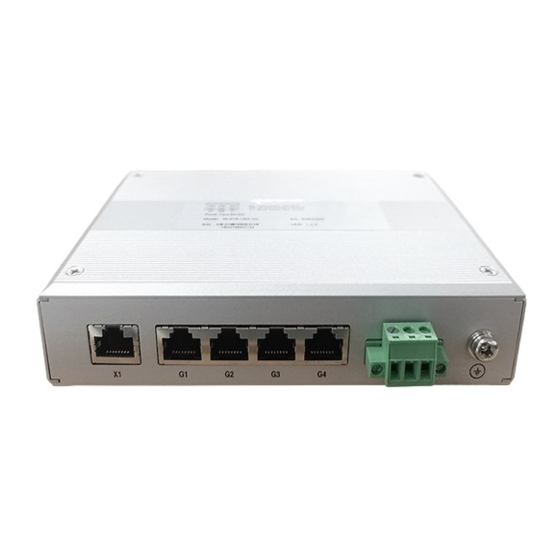

Front View

Rear View

Top view

Nanshan District,
Left view, right view

1. 10Gigabit copper port
2. Gigabit copper port
3. Terminal block for power input
4. Grounding screw
5. Power indicator
6. Running indicator
7. Gigabit Ethernet indicator (G1-G4)
8. 10Gigabit Ethernet indicator (X1)
9. Lugs
【Mounting Dimension】
Unit: mm
Notice Before Mounting:
Don't place or install the device in area near water or

moist, keep the relative humidity of the device
surrounding between 5%~95% without condensation.
Before power on, first confirm the supported power

supply specification to avoid over-voltage damaging the
device.
The device surface temperature is high after running;

please don't directly contact to avoid scalding.
【Wall-mounted Device Mounting】
Step 1 Adopt M3 screw to install the left/right lugs on the
left/right side of the device backboard.
