Tsun TSOL-ESK400-SE Quick Installation Manual

Tsun TSOL-ESK400-SE Quick Installation Manual

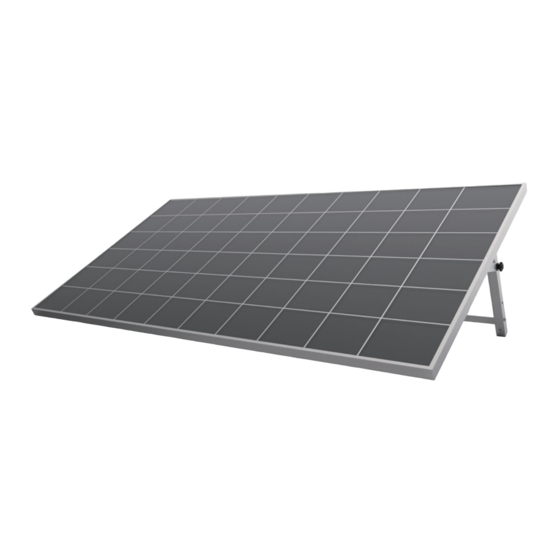

Easy solar kit

Advertisement

Quick Links

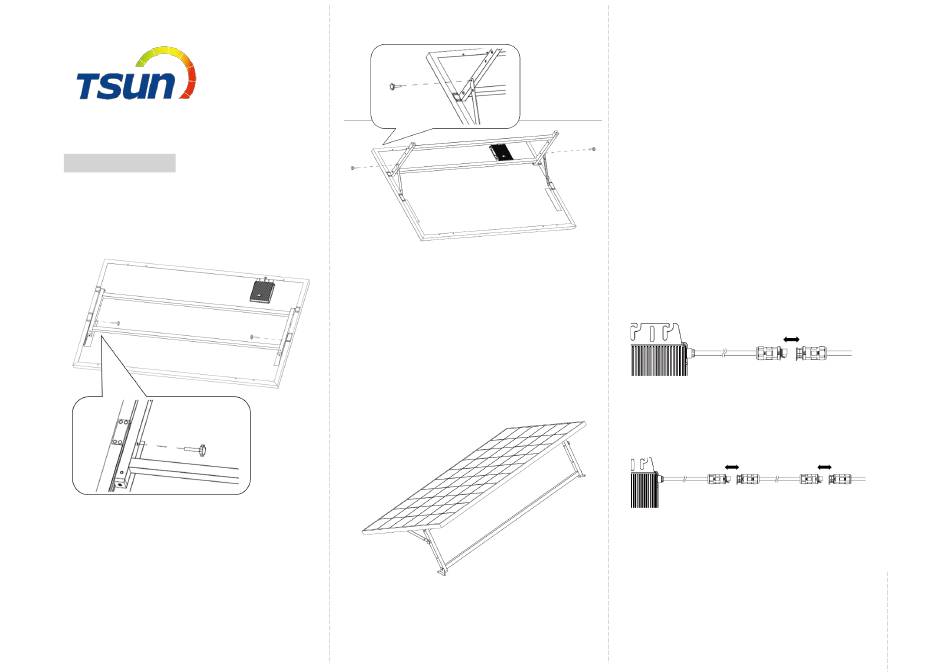

Quick Installation Guide
TSOL-ESK400-SE
Step 1: Open the ESK lock
Pick the Easy Solar Kit out. Put down it slowly and
make the bracket upside. There are two ESK locks
on the bracket. Open the ESK locks as shown below.
Step 2: Fix the bracket to the base plate
Lift up the bracket. Screw on the ESK locks to fix the
bracket as shown below.
1
Warning: The bracket must be fixed, which will
promote the wind loading rating of Easy Solar Kit.
Step 3. Find a suitable location
Turn around the Easy Solar Kit and make the
bracket downside. Find a suitable location and put
down the Easy Solar Kit lightly. Adjust the direction
and make the solar panel facing the sunlight.
2
Caution: Please put the Easy Solar Kit on a flat and
non-shadow location.
Caution: Easy Solar Kit has a 2m end cable and
should be set near the socket. Or use the expansion
cable as shown in Step 5.
Caution: Please adjust the direction at noon to get
a better electric energy production during the day
time.
Step 4. Extend the end cable (optional)
Extension cable (TSOL-MC200-G2, 2m) can be
used to extend the end cable.
Dismantle the end cable.
Connect the two sides of extension cable to the
microinverter and the end cable.
Step 5. Install more Easy Solar Kit (optional)
More Easy Solar Kits can be connected together
to form a whole system.
Take out the end cable of the second Easy Solar
3
