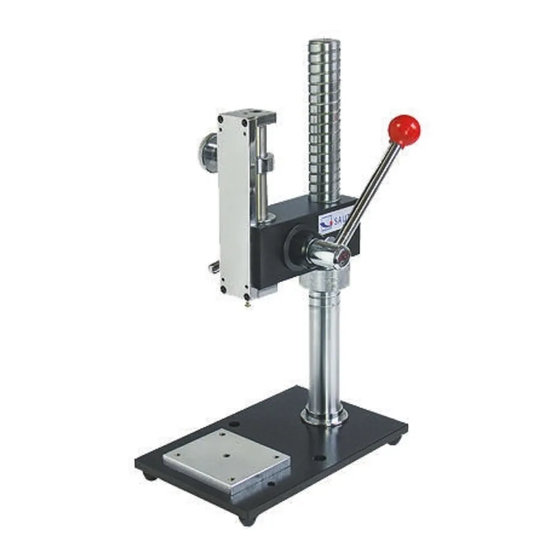

- Page 1 Sauter GmbH Ziegelei 1 Tel: +49-[0]7433- 9933-199 D-72336 Balingen Fax: +49-[0]7433-9933-149 E-Mail: info@sauter.eu Internet: www.sauter.eu Instruction Manual Manuel Lever Test Stand SAUTER TVP Version 1.2 05/2015 PROFESSIONAL MEASURING TVP-BA-e-1512...
- Page 2 Instruction Manual Manuel Lever Test Stand Thank you for buying a manual lever test stand of the brand SAUTER. We hope you are pleased with your high quality measurement system and its high repeatability. If you have any queries, wishes or helpful suggestions, do not hesitate to call our ser- vice number.
- Page 3 1 Scope of delivery SAUTER TVP 2 Warning If force measurements are carried out irregularly, this can lead to serious injuries of people and also material damages. Therefore, these measurements may only be car- ried out by experienced and qualified persons.
- Page 4 5 Pictures with dimensions Dimension in mm 115 mm Inner diameter: 7mm (without thread) 73 mm 65 mm 30mm Inner diameter: 7mm (without thread) 35mm 58 mm M6 Inner thread (all 5 holes) TVP-BA-e-1512...
