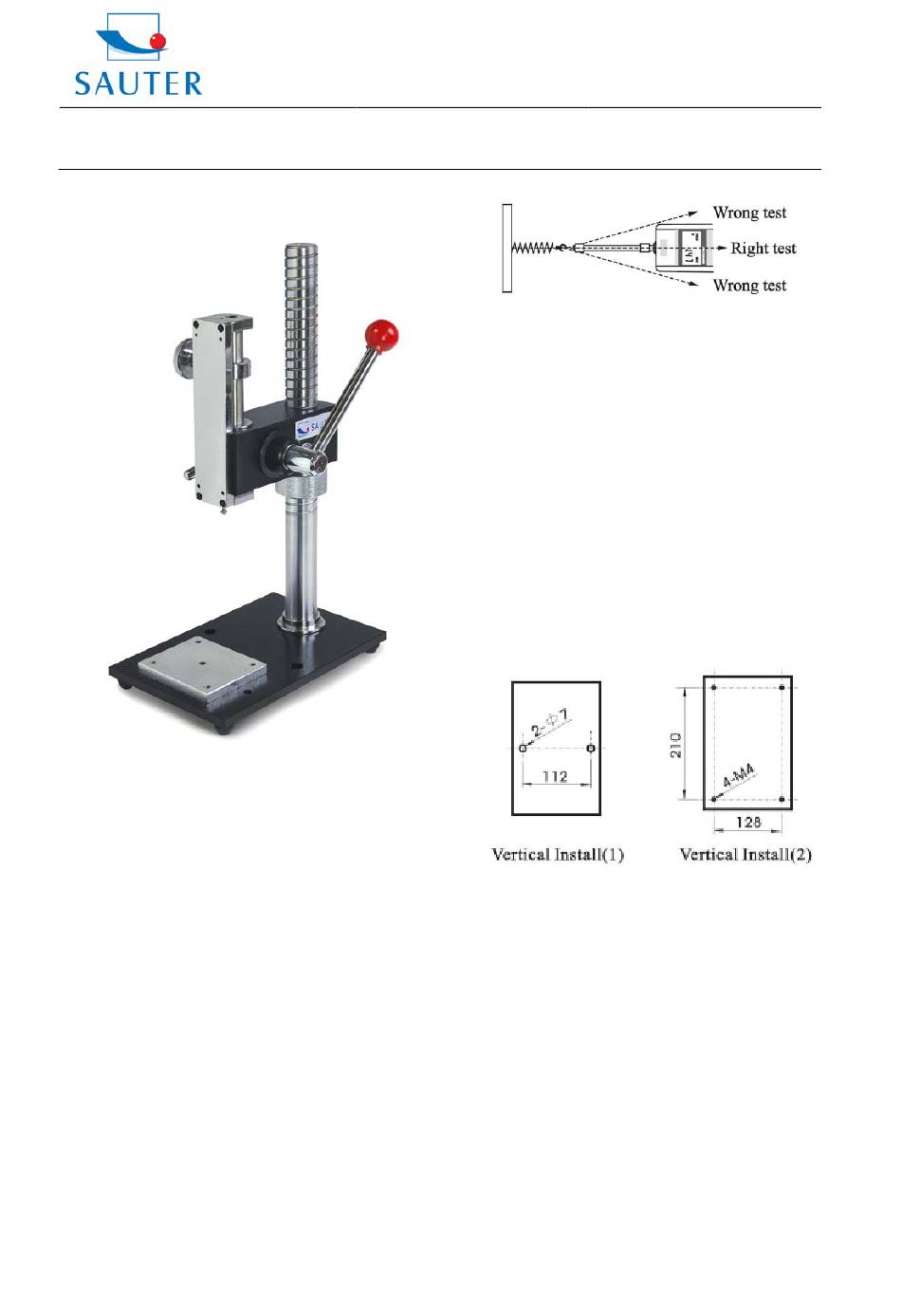

sauter TVP-L Series Instruction Manual

Thank you for buying a SAUTER test stand. We hope you
are pleased with your high quality test stand with its big
functional range. If you have any queries, wishes or helpful
suggestions, do not hesitate to call our service number.
1.

Included in delivery

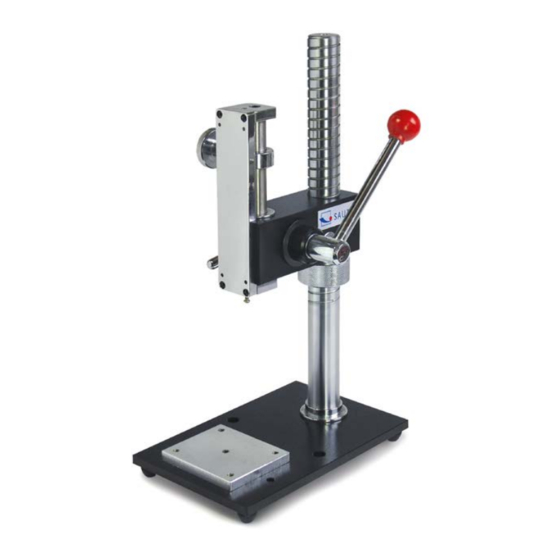

- SAUTER TVP
- Various hooks
2.

Warning

Intended use
The instrument you have acquired serves to determine the
measuring value of the material to be measured. It is
intended to be used as a "non-automatic" instrument, i.e.
the material to be measured is manually and carefully
attached at the instrument. The measuring value can be
read off after a stable measuring value has been obtained.
TVP-BA-e-1311
Sauter GmbH
Ziegelei 1
D-72336 Balingen
E-Mail: info@sauter.eu

Instruction Manual

TVP
Be careful about the limit load of test stand and force
gauge. Do not go over the maximum force.
Capacity: up to 500 Newton
Unit net weight: 10,5 kg
Minimum height above base plate: 115 mm
Maximum height above base plate: 318 mm
Height : 420 mm / Length: 233 mm /depth : 150 mm
Dimensions of the base plate:
^
Tel: +49-[0]7433- 9933-199
Fax: +49-[0]7433-9933-149
Internet: www.kern-sohn.com
3.

Technical Specifications

4.

Fixture of the measuring instruments

By means of 4 M3 screws
1
