- Page 1 Instructions for Use USD 3055 Allegro™ 3D Biocontainers and Allegro Totes 1000 L, 2000 L and 3000 L...
-
Page 2: Table Of Contents
Table of Contents 1. Introduction ..............................3 2. Warning ................................3 3. Receipt of Equipment..........................3 4. Installation and Operation ...........................3 4.1 Preparation and installation of the Allegro base and extension module ............4 4.2 Preparation and installation of the hoist ....................7 4.3 Installation of the Allegro biocontainer/system..................10 4.4 Filling the Allegro biocontainer/system ....................11 4.5 Draining the Allegro biocontainer ......................13 4.5.1 From the bottom (1000 L, 2000 L, and 3000 L) ................13... -
Page 3: Introduction
If some of the procedures do not suit your needs, please consult Pall or your local distributor before finalizing your system. Use of this product in a manner other than in accordance with Pall’s current recommendations may lead to injury or product loss. -
Page 4: Preparation And Installation Of The Allegro Base And Extension Module

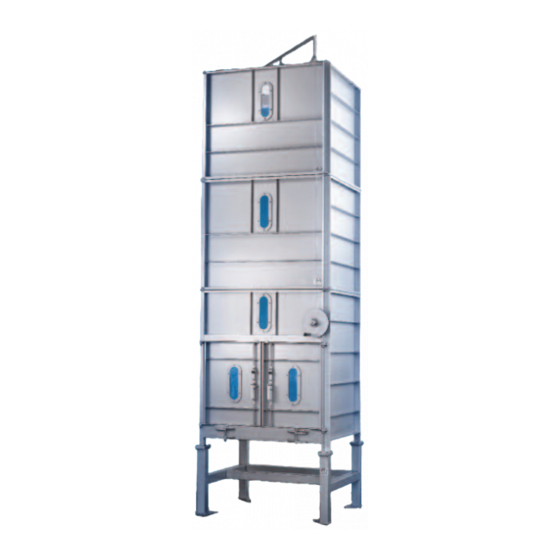

Figure 1 Base module and extension modules Biocontainer Lifting Hoist 3000 L Extension Module 2000 L Extension Module Base Module 1000 L Base stand Table 1 General hardware assembly overview Item Part number Dimensions Weight Base Stand LGR3000STAND 1066 mm x 1260 mm x 600 mm high 70 Kg Base Module LGR3000BASE... - Page 5 Stand frame alignment with base module 5. Once the bolts on the base module are aligned with the holes on the stand, slowly lower the fork lift to drop the bolts into place (Figure 5). Figure 5 Bolts inserted into four holes www.pall.com/biopharm...
- Page 6 6. Secure nut and washer using an adjustable wrench to fasten the entire stand to the base module (Figure 6). Figure 6 Secure bolts with nuts and washers 7. Attach an extension module(s) using a fork lift or hoist on the top of the base module as follows: NOTE: Extension module is not used for the 1000 L - Attach the two lifting plates to the top of the extension module by dropping one end over a position pin and aligning the other side with a bolt into the hole.
-
Page 7: Preparation And Installation Of The Hoist
Fasten the other hole on the bracket feet using a bolt with nut and washer (Figure 11). This is installed in the same manner as the lifting plate mentioned above. Figure 11 Bracket frame secured. Note: Crossbar will not be attached at this step yet. www.pall.com/biopharm... - Page 8 2. Feed the stainless cable through the pulley on the top corner of the extension module and pull the cable toward the ground until the carabiner rests on the pulley (Figure 12). Figure 12 Cable pulled through side pulley 3. Slide the other end of the stainless cable through the small hole located inside the friction wheel.
- Page 9 The cross frame arms should be adjusted so they are 15 – 20 mm from the tote inner corners (Figure 16). Figure 16 Knob turned to extend crossframe arm 8. Using the friction wheel, raise the crossbar inside the tote to prepare for biocontainer installation (Figure 17). Figure 17 Operator raising crossframe www.pall.com/biopharm...
-
Page 10: Installation Of The Allegro Biocontainer/System
9. Prior to Allegro biocontainer installation, the lift pin needs to be released to unlock the port plate clamp (Figure 18). Figure 18 Lifting pin being released 10. The swivel locking plate is used to secure and unsecure the ports of the Allegro biocontainer and needs to be opened to install the Allegro biocontainer. -
Page 11: Filling The Allegro Biocontainer/System
Once the biocontainer is secured into the base of the tote and aligned with four hoist connection perform the following: 1. Check that the outlet lines are closed 2. Using the friction wheel, raise the biocontainer (Figure 23) Figure 23 Raising the Allegro biocontainer using the friction wheel www.pall.com/biopharm... - Page 12 Warning: Do not open the doors during filling operation. Note: Allegro 1000 L 3D biocontainers can be filled from either the top or bottom ports. The 2000 L and 3000 L can only be filled from the bottom ports. The biocontainer will naturally move during filling.
-
Page 13: Draining The Allegro Biocontainer
Problem: Excessive creasing and folds are observed during filling of the biocontainer and excessive pressure observed on the friction wheel. Cause: The selected biocontainer may have been installed backwards with the label not above the center port. Solution: The biocontainer will have to be drained and repositioned. www.pall.com/biopharm... -
Page 14: Scientific And Laboratory Services
Scientific and Laboratory Services Pall operates a technical service to assist in the application of all of its products. This service is readily available to you and we welcome your questions so that we can help. In addition, a full network of technical representatives is available throughout the world.
