Pall Minimate EVO TFF Quick Start Manual

QUICK START GUIDE
Minimate EVO TFF System
TM
Component information
Part No: OAPMPUNV
Description: Minimate EVO TFF System,
115V AC – 230V AC 50/60 Hz
System includes:
• MasterFlex L/S variable speed pump
with Easy – Load pump head
• VWR stir plate
• 500 mL Reservoir with Lid, includes
o-ring and fittings
• Drip Tray
• Pressure Gauges
• Adjustable Drip Tray feet
• Adapter Plug international, 100V-250V
AC for pump (note: the plug does not
change current)
• Power Adapter Plug, 100V-240V AC
power supply, 12V DC input for
stir plate
Fittings/Parts Bag:
1) Male luer plugs (4)
2) 3-way valve for reservoir (2)
3) 1-way valve for reservoir Lid (2)
4) Male luer lock-1/8" hose barb elbow (4)
5) Male luer lock-1/8" hose barb (3)
6) Male luer coupler (1)
7) Female luer lock-1/8" hose barb (1)
8) PharMed tubing (2 ft.)
9) Stir Bar (1)
10) Minimate Capsule Stand (1)
11) Screw for Minimate Capsule (1)
12) Screw clamp for tubing (1)
13) Sinker (1)
14) Tubing clamps (8)
Minimate EVO TFF Kits / Components Information
Part No. Description
Minimate EVO TFF Reservoir Kit.
System includes:
97008
• Reservoir 500 mL with fittings
• Lid with fittings and o-ring
Minimate EVO TFF Drip Tray Kit
System includes:
97009 • Drip Tray with reservoir and filter capsule brackets
• Pressure gages (2) with mounts and fittings
• Minimate Capsule stand
Minimate EVO TFF Stir Plate Kit
System includes:
97010 • VWR Stir Plate
• Power adapter plug, 100V-240V AC power supply, 12V DC input
for stir plate
MasterFlex L/S Variable Speed Pump
System includes:
97011 • MasterFlex L/S variable speed pump
• Adapter Plug international, 100V-250V AC for pump (note: the
plug does not change current)

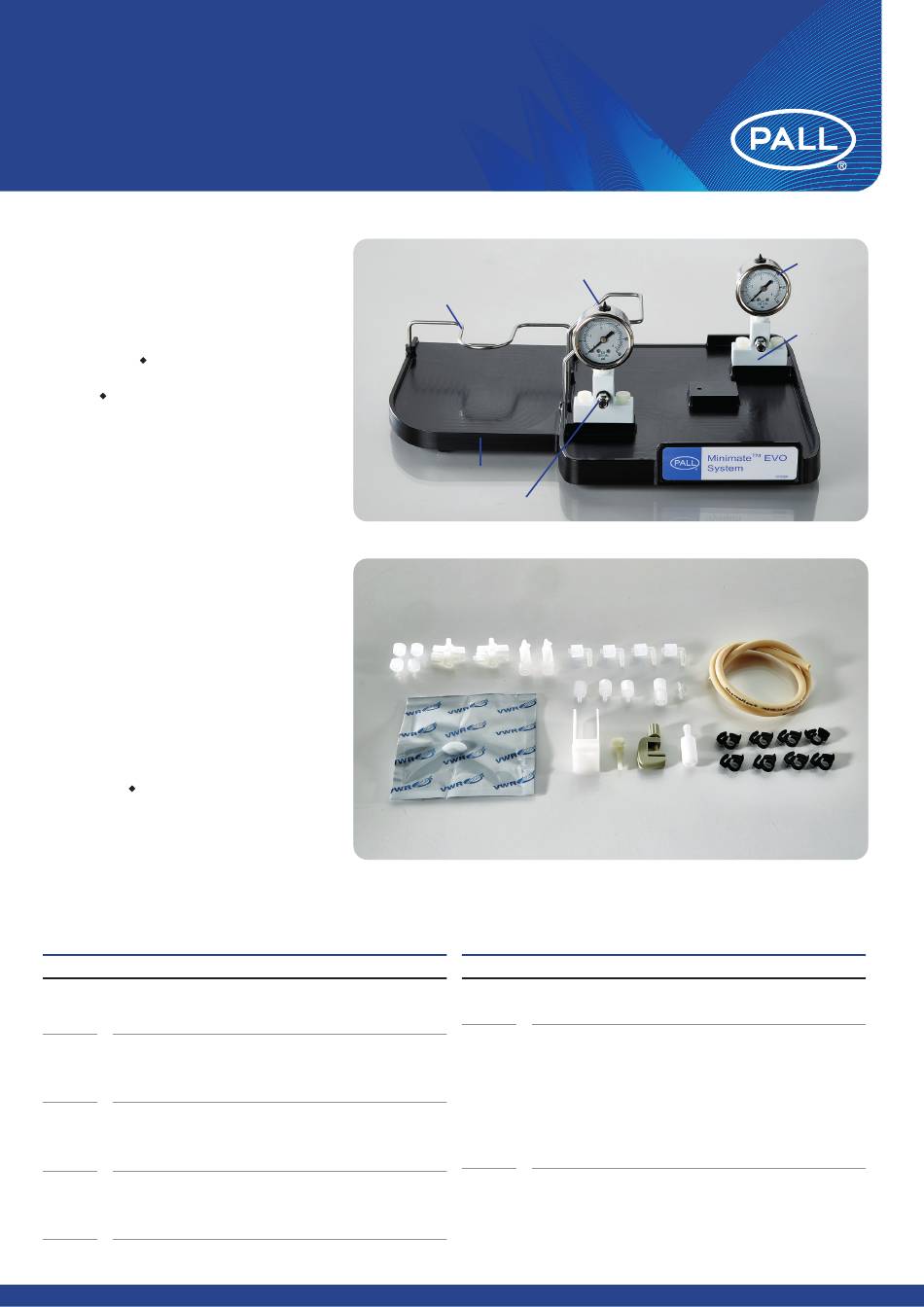

Reservoir
bracket
Drip tray
Fitting
Tray Assembly
1 2
9
Fittings/Parts Bag
Part No.
97012
97014
Capsule
bracket
3 4
5 6 7
10 11 12 13
Description
MasterFlex Easy Load Pump Head
System includes:
• MasterFlex Easy Load Pump Head
Minimate EVO TFF Fittings Kit includes:
• 3-way valve for reservoir (2)
• 1-way valve reservoir Lid (2)
• Male luer coupler (1)
• Male luer lock - 1/8" hose barb (3)
• Male luer lock - 1/8" hose barb elbow (4)
• Female luer lock - 1/8" hose barb (1)
• Tubing clamps (8)
• PharMed tubing (2 ft.)
• Screw clamp for tubing (1)
• Male luer plug (4)
Pressure
gauge
Gauge
mount
8
14
