TM
Minimate
EVO System
Component information
Part No.
Description
TM
OAPMPUNV
Minimate
EVO System, 115V AC –
230V AC 50/60 Hz
System includes:
MasterFlex® L/S variable speed pump with
Easy – Load pump head
VWR® stir plate
500 mL Reservoir with Lid, includes
o-ring and fittings
Drip Tray
Pressure Gauges
Adjustable Drip Tray feet
Adapter Plug international, 100V-250V AC
for pump (note: the plug does not change
current).
Power Adapter Plug, 100V-240V AC
power supply, 12V DC input for stir plate.
Fittings/Parts Bag:
1) Male luer plugs (4)
2) 3-way valve for reservoir (2)
3) 1-way valve for reservoir Lid (2)
4) Male luer lock-1/8" hose barb elbow (4)
5) Male luer lock-1/8" hose barb (3)
6) Male luer coupler (1)
7) Female luer lock-1/8" hose barb (1)
8) Pharmed ® tubing (2 ft.)
9) Stir Bar (1)
10) Minimate
TM
Capsule Stand (1)
TM
11) Screw for Minimate
Capsule (1)
12) Screw clamp for tubing (1)
13) Sinker (1)
14) Tubing clamps (8)

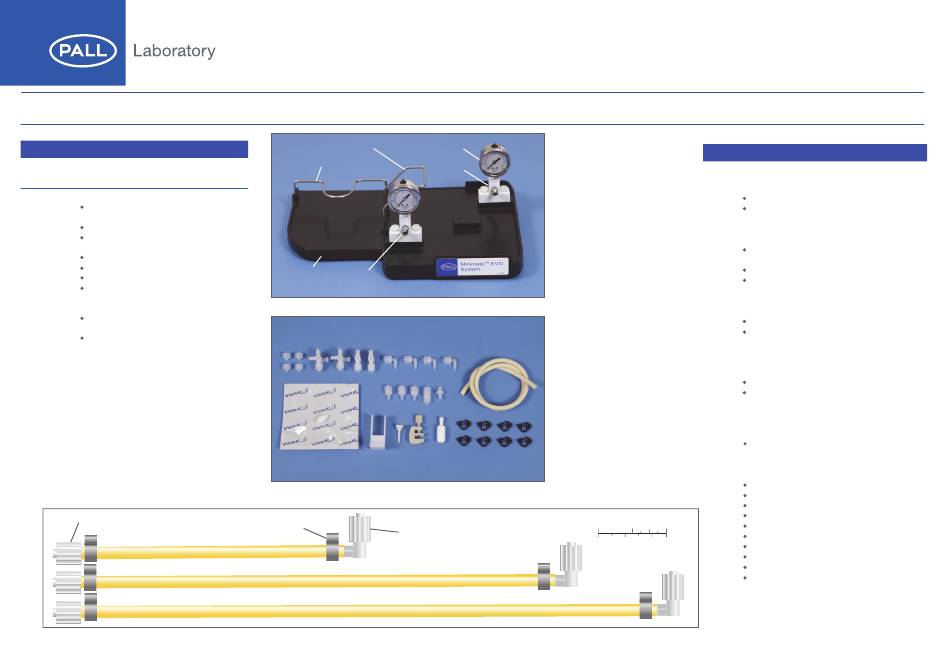

Figure 1: Cut Pharmed tubing (yellow) from Minimate EVO System to match lengths of tubing below (tubing in illustration are to length)
Male luer lock-1/8" Hose Barb
Short tube 3-7/8" (99 mm) long
Mid length tube 7" (178 mm) long
Long tube 8-1/2" (216 mm) long
Quick Start Guide
Capsule bracket
Reservoir bracket
Drip Tray
Fitting
Tray Assembly below
1
3
2
9
10
11
Fittings / Parts Bag
Tubing clamp
Pressure
Gauge
Gauge
mount
4
5
6
7
8
12
13
14
Male luer lock-1/8" Hose Barb Elbow
Minimate EVO Kits / Components Information
Part No. Description
97008
Minimate
System includes:
Reservoir 500 mL with fittings
Lid with fittings and o-ring
97009
Minimate
System Includes:
Drip Tray with reservoir and filter capsule
brackets
Pressure gages (2) with mounts and fittings
Minimate
97010
Minimate
System Includes:
VWR® Stir Plate
Power adapter plug, 100V-240V AC power
supply, 12V DC input for stir plate
97011
MasterFlex® L/S Variable Speed Pump
System Includes:
MasterFlex® L/S variable speed pump
Adapter Plug international, 100V-250V AC for
pump (note: the plug does not change current)
97012
MasterFlex® Easy Load Pump Head
System Includes:
MasterFlex® Easy Load Pump Head
97014
Minimate
System Includes:
3-way valve for reservoir (2)
1-way valve reservoir Lid (2)
Male luer coupler (1)
Male luer lock - 1/8" hose barb (3)
1"
0
1/2"
Male luer lock - 1/8" hose barb elbow (4)
Female luer lock - 1/8" hose barb (1)
10
20
25.4 mm
Tubing clamps (8)
Pharmed ® tubing (2 ft.)
Screw clamp for tubing (1)
Male luer plug (4)
P/N 97071
TM
EVO Reservoir Kit
TM
EVO Drip Tray Kit
TM
Capsule stand
TM
EVO Stir Plate Kit
TM
EVO Fittings Kit
