- Page 1 Instructions for Use USD 2883 Allegro™ 200 L and 500 L Plastic Totes, Lids and Trolleys For use with Allegro 3D biocontainer systems and bag systems from other manufacturers (100L, 200L and 500 L) (Part numbers LGRPTTE200L, LGRPTTEL200L, LGRPTRL200L, LGRPTTE500L, LGRPTTEL500L and LGRPTRL500L)
-
Page 2: Table Of Contents
Table of Contents 1. Introduction ..............................3 2. Warnings ..............................3 3. Materials of Construction and Operating Limits ..................4 4. Receipt of Equipment – Allegro Plastic Totes and Allegro Single-use Systems........4 4.1 Receipt of Allegro Plastic Totes and Accessories ..................4 4.1.1 Allegro Tote ............................4 4.1.2 Allegro Tote Trolley..........................4 4.1.3 Allegro Tote Lid ..........................5 4.1.4 Packaging Retention ........................5... -
Page 3: Introduction
500 L plastic totes, trolleys and lids. Additionally, installation and use of Allegro single-use 3D systems with capacities of 100 L or 200 L in the Allegro 200 L plastic tote, or 500 L in the Allegro 500 L plastic tote is described. -
Page 4: Materials Of Construction And Operating Limits

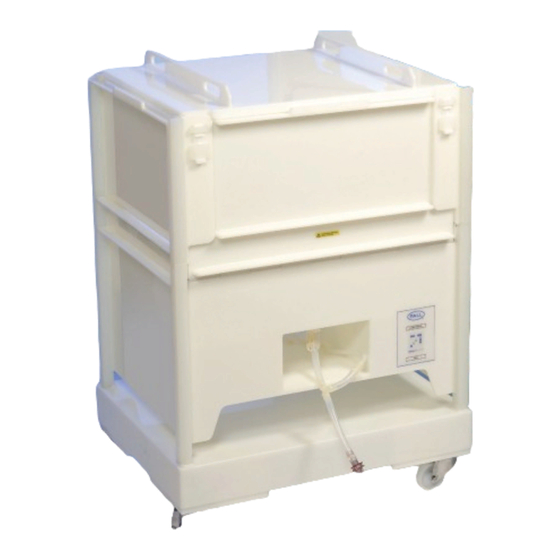

Receipt of Equipment – Allegro Plastic Totes and Allegro Single-use Systems Receipt of Allegro Plastic Totes and Accessories The Allegro 200 L and 500 L plastic totes, accessory trolley and accessory lid are individually packaged. Assembly of components together is covered in Section 5. -
Page 5: Allegro Tote Lid
3. Do not remove the Allegro systems from packaging until just before use. NOTE: Allegro 200 L and 500 L plastic totes have a base port which is fitted with Allegro Port Bracket (Part number LGRPFBP200L and LGRPFBP500L). The tote orifices are 100 x 100 mm (200 L tote)and 100 x 200 mm (500 L tote);... - Page 6 Table 2 Allegro 200 L Plastic Tote and Accessories Description Allegro 200 L Allegro trolley for Allegro port bracket Allegro lid for plastic tote Allegro 200 L for Allegro 200 L Allegro 200 L plastic tote plastic tote plastic tote...
-
Page 7: Tote Trolley Preparation
Do not lift the tote using the folded side panels or the lateral structural bars. CAUTION: Pall does not recommend lifting or otherwise placing an already filled tote onto a trolley. The legs of the tote locate into raised pockets at the corners of the trolley. Ensure that all 4 legs are correctly located. - Page 8 Figure 7 Brake engaged Trolleys are recommended to be used only for moving single totes (full or empty), or collapsed totes in stacked or non-stacked positions (see section 5.5). In order to move empty or full totes, release the brakes (Figure 8 and Figure 9). Figure 8 Release brakes Figure 9...
-
Page 9: Tote Preparation
5.1.2 Tote Preparation The procedure for opening the collapsible totes (200 L and 500 L) is as follows: Figure 10 Open the first side panel Figure 11 Open the second side panel www.pall.com/biopharm... - Page 10 Figure 12 Open the back panel Figure 13 Open the front panel Figure 14 Engage the latches to lock the panels into position CAUTION: the panels can fold back if they are not secured with the latches. Ensure that the internal surfaces of tote are undamaged, clean, dry, and free from particulate matter.
-
Page 11: System Preparation, Installation And Use Of Allegro Single-Use Biocontainer Systems In An Allegro Plastic Tote
Avoid using the inlet ports to support the biocontainer while sliding the port bracket into position. Figure 15 200 L Bottom port bracket fixing position Figure 16 Fixing the 200 L bottom port bracket to the hexagonal section of the bottom outlet port www.pall.com/biopharm... - Page 12 3. Hold the Allegro 3D biocontainer with the base port and port bracket facing down and closest to you and the top multi-port system uppermost. Keep the side panels on the uppermost face of the Allegro 3D biocontainer. 4. Prepare to place the Allegro 3D biocontainer into the base of the tote from above. Do not unfold the bag.
-
Page 13: Installation Of A Single-Use Biocontainer System In The 500 L Tote
Figure 25 with a red dot. Avoid using the inlet ports to support the biocontainer while sliding the port bracket into position. Figure 20 Opening or disengaging the front door top latches www.pall.com/biopharm... - Page 14 Figure 21 Opening or disengaging the front door side latches Figure 22 Remove the front access door Figure 23 Removing the 500 L tote front access door when the totes are stacked Figure 24 Feeding the 500 L system through the front access door when the totes are stacked...
- Page 15 Ensure that no tension is exerted on tube connections to the biocontainer ports, and that there is sufficient slack for any other tube connections to system components. www.pall.com/biopharm...
- Page 16 Figure 28 Locating the port bracket in the orifice of the tote and feeding the system tubing through the slot, following the closure of the clamp 7. Align the corners of the Allegro 3D biocontainer with the corners of the tote, with- out unfolding the biocontainer.
-
Page 17: Using The Allegro Plastic Totes With Other Suppliers' Single-Use Systems
The Allegro plastic tote can also be used with the systems from other suppliers by rotating the port bracket, as shown in Figure 32 and 33. Figure 32 Orientation of the port bracket for (a) 200 L and (b) 500 L totes for use with Pall Allegro single-use systems Front of Tote... -
Page 18: Filling An Allegro 3D Biocontainer System
Front of Tote For further information regarding the installation of other supplier’s single-use systems into Pall hardware, or Pall single-use into non-Pall hardware, please contact a local Pall representative. Filling an Allegro 3D Biocontainer System WARNING: Do not overfill the Allegro 3D biocontainer above its maximum volume specification. - Page 19 Figure 35 Commence filling Figure 36 Allegro biocontainer self-aligning while filling in progress 4. Fill the container to the desired level. Figure 37 Fill up to recommended volume specification www.pall.com/biopharm...
-
Page 20: Using The Tote Lids
Figure 38 Do not open the access panel when the system is fully or partially filled 5. Upon completion of filling, turn off the pump and close the filling line. Disconnect the filling line in accordance with the requirements of the connection device and your own site procedures. -
Page 21: Dispensing From The Top
Allegro Tote Stacking Allegro plastic totes are suitable for stacking – examples are shown in Figures 39 and 40. Refer to Tables 4 and 5 for stacking limits. Table 4 Stacking Specifications Allegro 200 L Plastic Tote Fill Level Configuration Without Trolley... - Page 22 Figure 39 500 L stacked open totes Figure 40 500 L stacked collapsed totes Stacking should be carried out when totes are empty. For 500 L totes that are to be stacked and used with Allegro biocontainer systems, installation of the single-use systems within the totes should be done through the front access door after stacking as shown in Figures 23 and 24 above (section 5.2.2).
-
Page 23: Maintenance And Spare Parts
In case of damage or defects each tote has been designed to be completely traceable with a unique batch identifier on the bottom panel of the tote. Pall liability under any warranty is limited solely to replacing, or issuing credit for the Allegro hardware that may become defective during the Warranty Period. -
Page 24: Allegro System Disposal
Scientific and Laboratory Services (SLS) Pall operates a technical service to assist in the application of all of its products. This service is readily available to you and we welcome your questions so that we can help. In addition, a full network of technical representatives is available throughout the world.
