Summary of Contents for Forest OPCS88

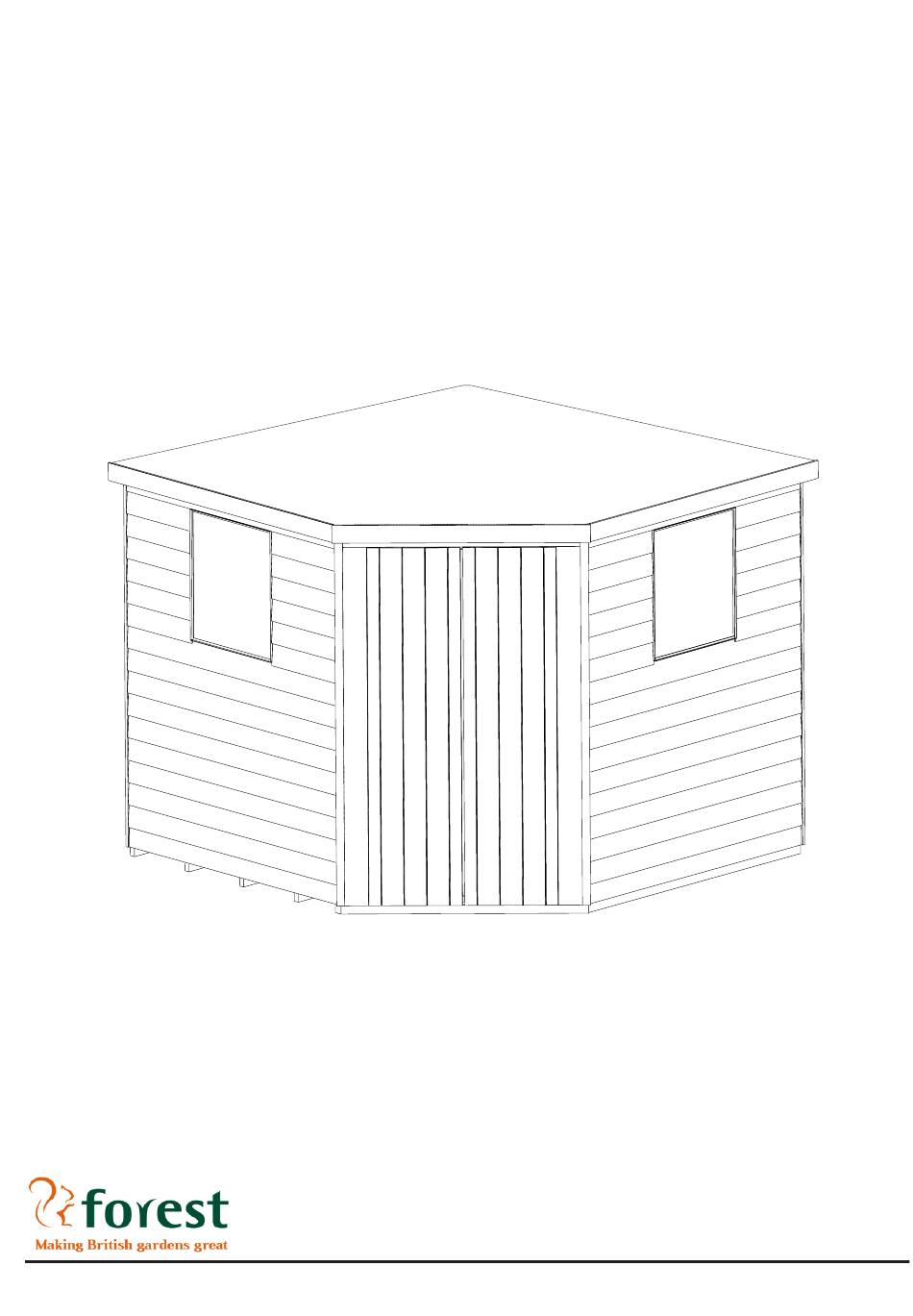

- Page 1 CORNER SHED 8"x8" OPCS88 Issue 0118 Forest Garden Ltd | Unit 288 | Oak Drive | Hartlebury Trading Estate | Hartlebury | Worcestershire | Dy10 4JB...
- Page 2 Important : Assembly INFORMATION of this shed requires a minimum of two adults. This building is pressure treated to ensure longevity of all timber components and to protect against rot. This may leave a colour difference on some parts that will even out as the moisture content stabilises.
- Page 3 Step 3 50mm 50mm Screws Screws Panel 4 (Left Back) Size: 2260x1929mm Connect Connect SCREW MUST GO Walls Walls THROUGH FLOOR PANEL AND INTO THE BATTENS OF FLOOR PANEL MUST PRE DRILL 50mm Screws Into Floor 50mm Screws Into Floor OVER- LAPPING DETAIL A...
- Page 4 Step 7 MUST PRE DRILL 30mm 30mm Batten 4 (Front Cover) Screws Screws Size: 40x12x1915mm 30mm Screws 30mm 30mm 30mm Screws Screws Screws Batten 4 (Front Cover) Size: 40x12x1915mm Batten 5 (Back Cover) Batten 5 (Back Cover) Size: 44x16x1915mm Size: 44x16x1915mm Batten 6B (Far Back Cover) Batten 6 (Far Back Cover) Size: 40x12x1839mm...
- Page 5 Step 11 Step 12 Through MUST PRE DRILL MUST PRE DRILL HALF Roof Panel Into BATTEN Overhang 30mm Screws 30mm Screws 30mm Screws INTO ROOF BATTEN INTO 30mm 30mm ROOF Screws Screws BATTEN DETAIL F DETAIL G 30mm Screws 30mm INTO Screws ROOF...
- Page 6 Step 16 Step 17 Window (Window) Size: 556x688mm Batten 8 (Door) Strip (Window) Strip (Window) Size: 45x28x1763mm Size: 665mm Size: 665mm Strip (Window) Size: 665mm Inside Window 60mm of Shed Screws Outside of Shed Cill Board Both Windows Attention: Take care when placing the screws.
