Summary of Contents for Forest OPCSUM88

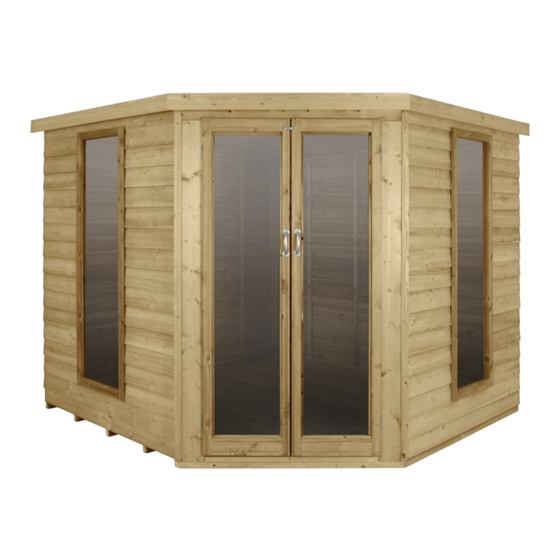

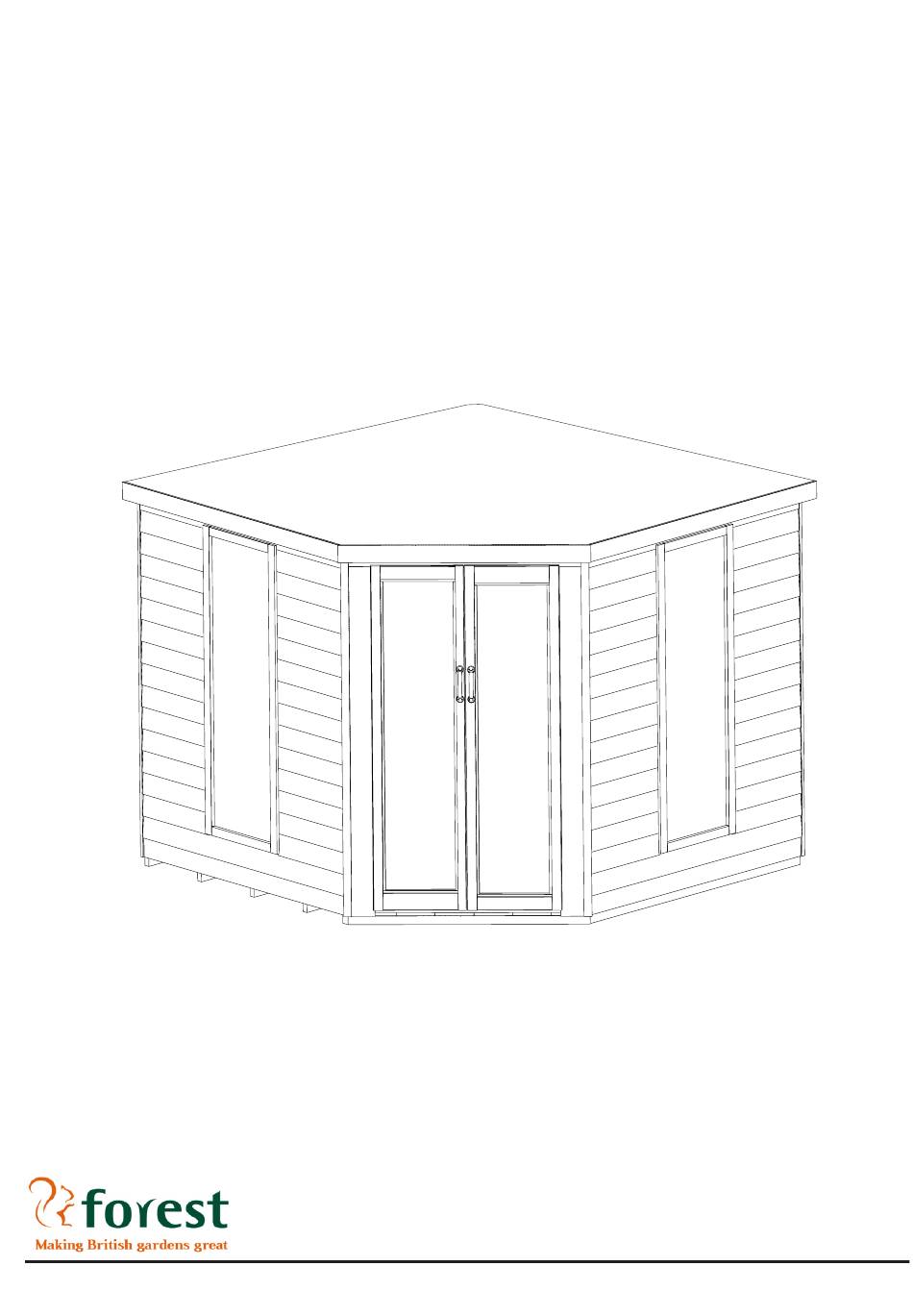

- Page 1 CORNER SUMMER HOUSE 8"x8" OPCSUM88 Issue 0118 Forest Garden Ltd | Unit 288 | Oak Drive | Hartlebury Trading Estate | Hartlebury | Worcestershire | Dy10 4JB...
- Page 2 Important : Assembly INFORMATION of this shed requires a minimum of two adults. This building is pressure treated to ensure longevity of all timber components and to protect against rot. This may leave a colour difference on some parts that will even out as the moisture content stabilises.
- Page 3 Step 3 50mm 50mm Screws Screws Panel 4 (Left Back) Size: 2260x1929mm Connect Connect SCREW MUST GO Walls Walls THROUGH FLOOR PANEL AND INTO THE BATTENS OF FLOOR PANEL MUST PRE DRILL 50mm Screws Into Floor 50mm Screws Into Floor OVER- LAPPING DETAIL A...
- Page 4 Step 7 30mm 30mm Screws Screws Batten 4 (Front Cover) Size: 40x12x1915mm 30mm Screws Batten 4 (Front Cover) Size: 40x12x1915mm 30mm 30mm Screws Screws 30mm Batten 5 (Back Cover) Screws Batten 5 (Back Cover) Size: 44x16x1915mm Size: 44x16x1915mm Batten 6B (Far Back Cover) Batten 6 (Far Back Cover) Size: 40x12x1839mm Size: 28x12x1839mm...
- Page 5 Step 11 Step 12 Through HALF Roof Panel 30mm Into BATTEN Screws Overhang 30mm Screws 30mm Screws 30mm Screws INTO INTO 30mm ROOF ROOF BATTEN Screws BATTEN DETAIL F DETAIL G 30mm Screws INTO ROOF BATTEN 30mm 30mm 30mm Screws Screws Screws 30mm...
- Page 6 Step 16 Step 17 Door Panel (Right + LEFT) Size: 475x1796mm Window 2 (Window) Panel Flush Size: 1633x372mm Pins Hinge Batten 15 (Window) Size: 24x12x375mm Each Batten 20mm 20mm Screws Screws Batten 8 (Window) Size: 24x12x1612mm 10mm DETAIL H Both Both Doors Doors...
