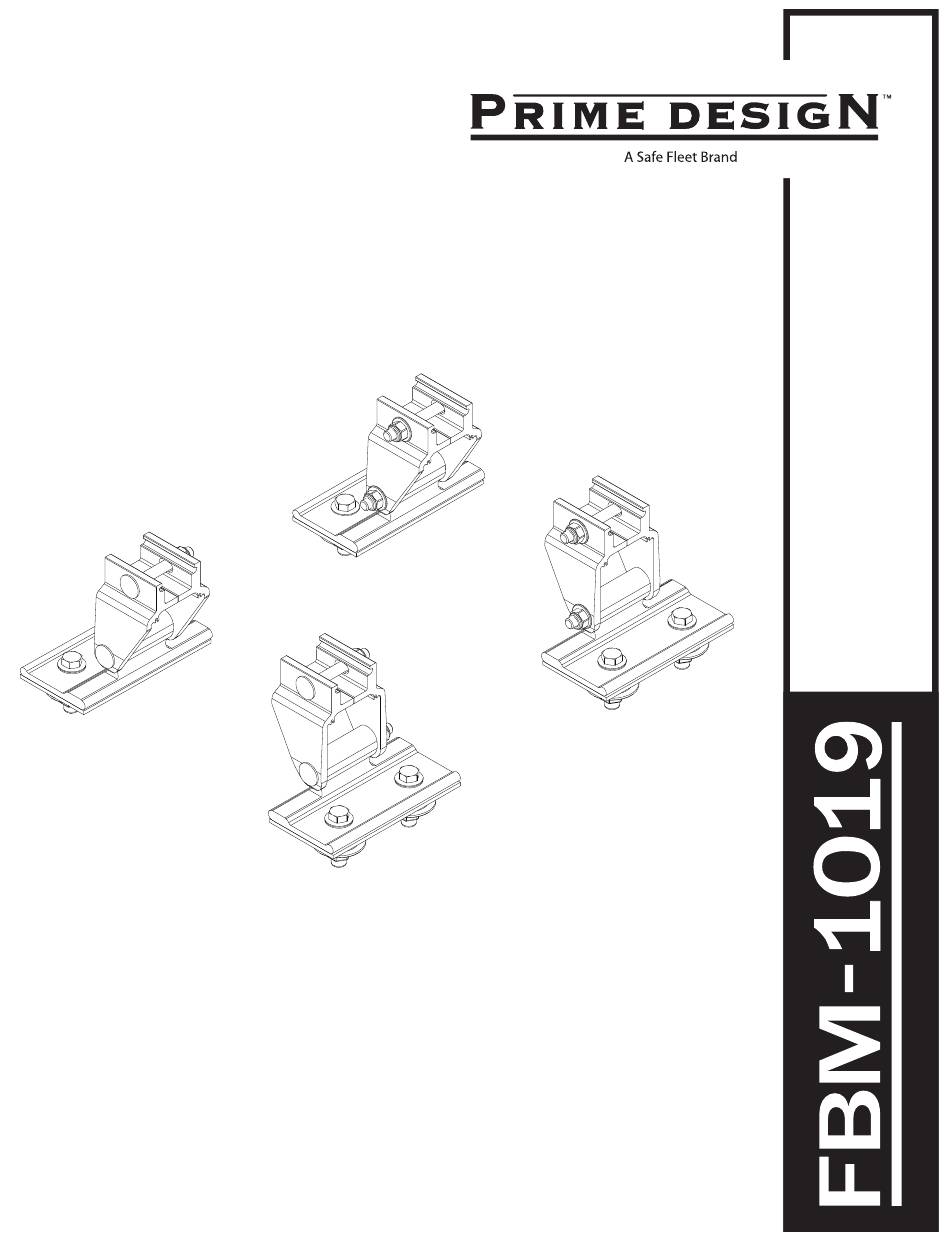

- Page 1 PRIME DESIGN, A SAFE FLEET BRAND Address: 580 Opperman Drive, Eagan, MN 55123 ▪ Toll Free: 1.8.PRIME.RACK Fax: 651-552-1799 ▪ Email: info@primedesign.net ▪ Website: www.primedesign.net...
- Page 2 FBM-1019 Mounting Brackets shown in position on a generic cap for illustrative purposes only. Mounting Brackets must be located in Cap manufacturer’s designated locations. 1—Mounting Brackets .......... (Qty 4) M8 HEX HEAD BOLT (x2) 35MM/45MM (see note below) M8 CARRIAGE BOLT (x1) SEALING WASHER (x2) M8 CARRIAGE BOLT (x1) GUTTERLESS POST LEFT (x1)
- Page 3 FBM-1019 Set mountings into pre-drilled holes as shown. MOUNTING BRACKETS F r o R i g R e a Bolt Sealing Washer Mounting Bracket Foam Pad Rubber Washer Rear Front Fender Washer Locknut Nut Cap F r o R e a F r o R e a Torque nuts to 90 in-lbs...
- Page 4 NOTE: Rack should be adjusted to attach the MOUNTING Mounts to Heavy Duty Crossbars only. Shown with AluRack Pickup for illustrative purposes only Loosen nuts on all Mounting Brackets Channel Mountings align to Crossbars Position Rack until evenly spaced Torque to 90 in-lbs between rear Channel Mountings Even Even...
