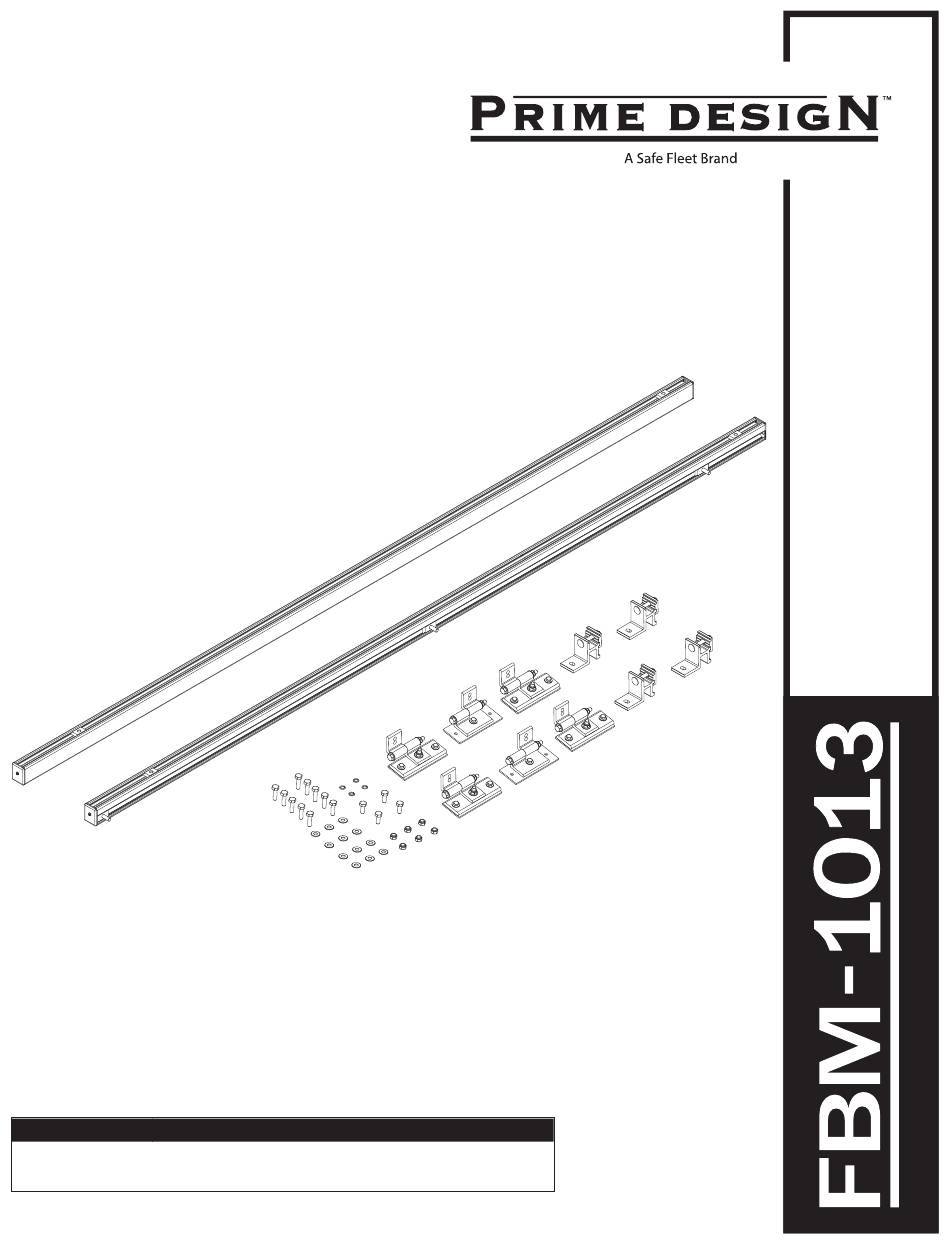

2015+ Ram ProMaster City L1H1 Base Mounting Kit
Page 2
Packaging Contents
Pages 3-6
Low Roof Short Wheelbase (122.40")/L1H1
PRIME DESIGN, A SAFE FLEET BRAND ▪ Address: 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118
Toll Free: 1.8.PRIME.RACK ▪ Fax: 651-552-1799 ▪ Email: info@primedesign.net ▪ Website: www.primedesign.net
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Safe Fleet Prime Design FBM-1013
Summary of Contents for Safe Fleet Prime Design FBM-1013
- Page 1 Page 2 Packaging Contents Pages 3-6 Low Roof Short Wheelbase (122.40”)/L1H1 PRIME DESIGN, A SAFE FLEET BRAND ▪ Address: 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118 Toll Free: 1.8.PRIME.RACK ▪ Fax: 651-552-1799 ▪ Email: info@primedesign.net ▪ Website: www.primedesign.net...
-
Page 2: Contents Overview
CONTENTS OVERVIEW TWO CROSSBAR CONFIGURATION NOTE: This Manual contains information covering two and three Crossbar configurations. If your model is a two Crossbar configuration, disregard all Center Crossbar installation information and parts references. 1—FBM-1013 ............(Qty 1) Channels, 78.00” w/Hardware Kit Stiff Channel 78”... -
Page 3: Mounting Brackets
L1H1 FBM ASSEMBLY SEQUENCE ERGORACK CONFIGURATION ALURACK CONFIGURATION NOTE: Base, Rotation, Crossbar, and Side Rail features are shown for illustrative purposes only. These features are not included with this Base Mounting Kit, and must be purchased separately. MOUNTING BRACKETS CHANNELS Install the Channel Mounting Brackets into the vehicle’s Apply Anti-Seize to all M8 T Bolt studs, then attach the roof mounting holes and torque to 90 in-lb. - Page 4 Position the Channel ends until contacting the Install Channel Brackets as shown. End Caps as shown in Figure A. Torque all Mounting Bracket Nuts to 90 in-lb. F r o F r o Fig. A R e a R i g R e a M8 X 20MM Lock Washer...
- Page 5 CROSSBARS (ERGORACK) CROSSBAR ADJUSTMENT Shown with LH Base, and RH Rotation for illustrative purposes only 3E.1 F r o Front Even Even Rear Even Even Torque all of these 3E.2 Crossbar Clamp nuts to 90 in-lbs 3E.3 Verify the specified distance from the 4.50”...
- Page 6 CROSSBAR CROSSBARS (ALURACK) ADJUSTMENT Shown with L1H1 AluRack for illustrative purposes only h i c F r o Center 3A.1 h i c Torque all of these 3A.2 Crossbar Clamp nuts to 90 in-lbs. 3A.3 Verify the specified distance from the ends of both Mounting Bracket to the ends of both Channels.
- Page 7 Page Intentionally Left Blank...
- Page 8 USAM-FBM1013-US01 Rev-C 0720...
