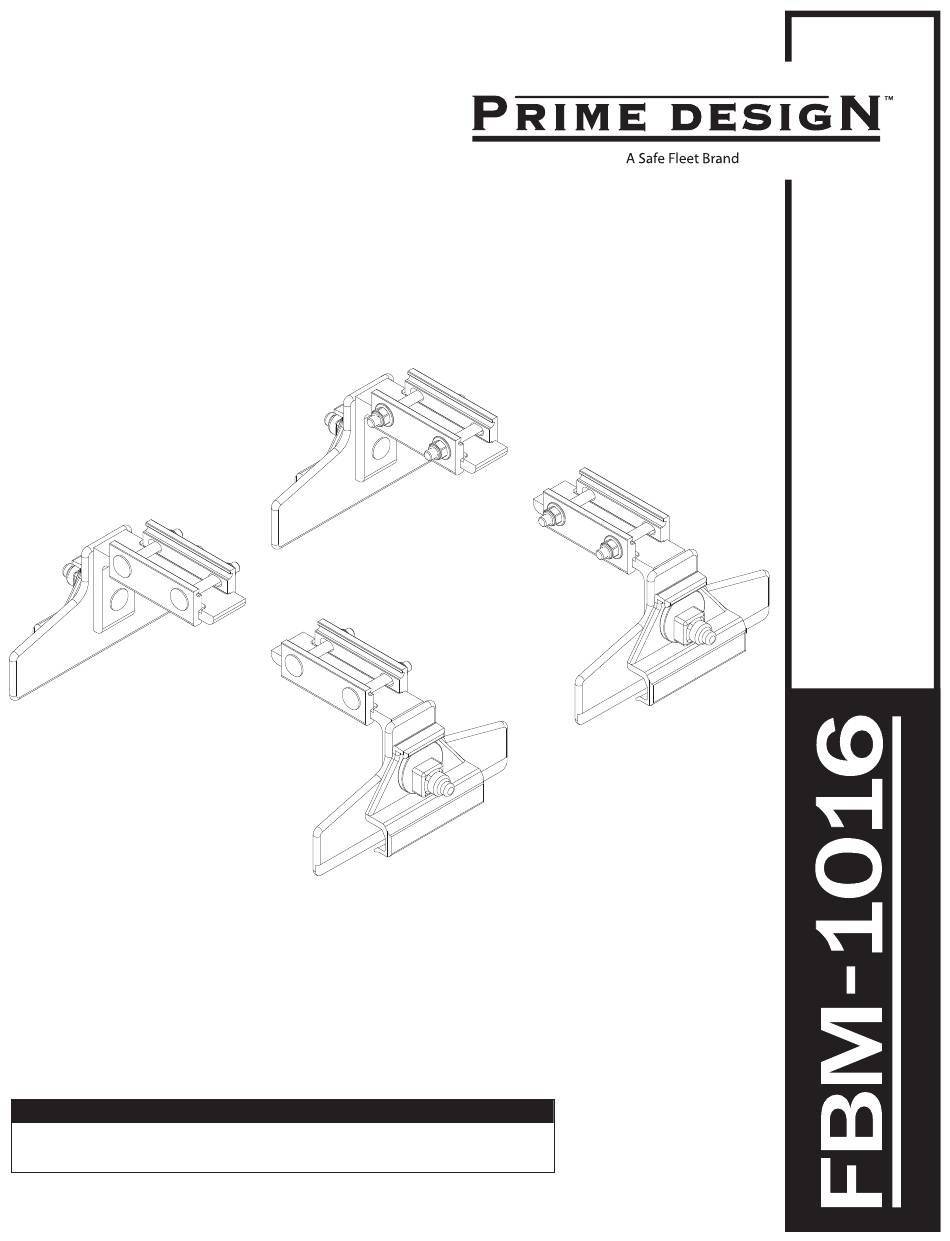

1996+ Chevrolet Express Gutter Mount Frame Base Mounting Kit
Page 2
Packaging Contents
Pages 3-6
Low Roof Medium/Extended Wheelbase (135"-155")
PRIME DESIGN, A SAFE FLEET BRAND
Address: 580 Opperman Drive, Eagan, MN 55123 ▪ Toll Free: 1.8.PRIME.RACK
Fax: 651-552-1799 ▪ Email: info@primedesign.net ▪ Website: www.primedesign.net
Advertisement
Related Manuals for Safe Fleet PRIME DESIGN FBM-1016
Summary of Contents for Safe Fleet PRIME DESIGN FBM-1016
- Page 1 1996+ Chevrolet Express Gutter Mount Frame Base Mounting Kit Page 2 Packaging Contents Pages 3-6 Low Roof Medium/Extended Wheelbase (135”-155”) PRIME DESIGN, A SAFE FLEET BRAND Address: 580 Opperman Drive, Eagan, MN 55123 ▪ Toll Free: 1.8.PRIME.RACK Fax: 651-552-1799 ▪ Email: info@primedesign.net ▪ Website: www.primedesign.net...
-
Page 2: Contents Overview
CONTENTS OVERVIEW NOTE: All Mounting Brackets come pre-assembled with bolts facing the same orientation. For safety, it’s recommended to position all protruding Top Clamp bolts inward. This will necessitate a partial reassemble of two of the four Mounting Brackets as shown in Steps 1.1–1.6 on pages 3 & 4. 1—FBM-1016 ............ -
Page 3: Mounting Brackets
FBM ASSEMBLY SEQUENCE MOUNTING BRACKETS Set aside two of four FBM-1016 Mounting Brackets, and perform Steps 1.1–1.6 to both, then proceed to Step 2.1 Rotate the Clamp Assembly 180° Loosen the indicated Clamp Nuts Lower the Clamp Assembly onto the Mounting Bracket. Tighten only enough to retain Clamps on Mounting Bracket. - Page 4 CROSSBARS Shown with LH Base, and RH Rotation for illustrative purposes only Position the Mounting Brackets according to the illustrations shown below while ensuring all bolts protrude inward as noted on page 2. Loosen the Mounting Z Plate Cam Nut, but do not remove Z Plate Rotate the Mounting Z Plate Cam 180°...
- Page 5 VEHICLE MOUNTING SEQUENCE Set to distances shown below: Use Dimensions A for 2 Crossbar models. Beginning with the Rear Crossbar, position it on the vehicle’s roof, then proceed to Step 3.2 to tighten the Rear Crossbar Mounting Brackets in place. Place the remaining Crossbar(s) onto the roof and set according to designated dimensions shown below, but do not tighten.
- Page 6 Z Plate Cam held in position with 19mm wrench Z Plate Cam Nut Place a 13mm box end wrench onto the Z Plate Cam Nut 13mm Ensure the vehicle’s roof gutter is engaged within the Z Plate, and the Mounting Plate is fully seated inside the gutter.
- Page 7 Page Intentionally Left Blank...
- Page 8 USAM-FBM1016-US01 Rev-B 0720...
