Mercia Garden Products 0619RANE0325FGSD3TW-V1 General Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

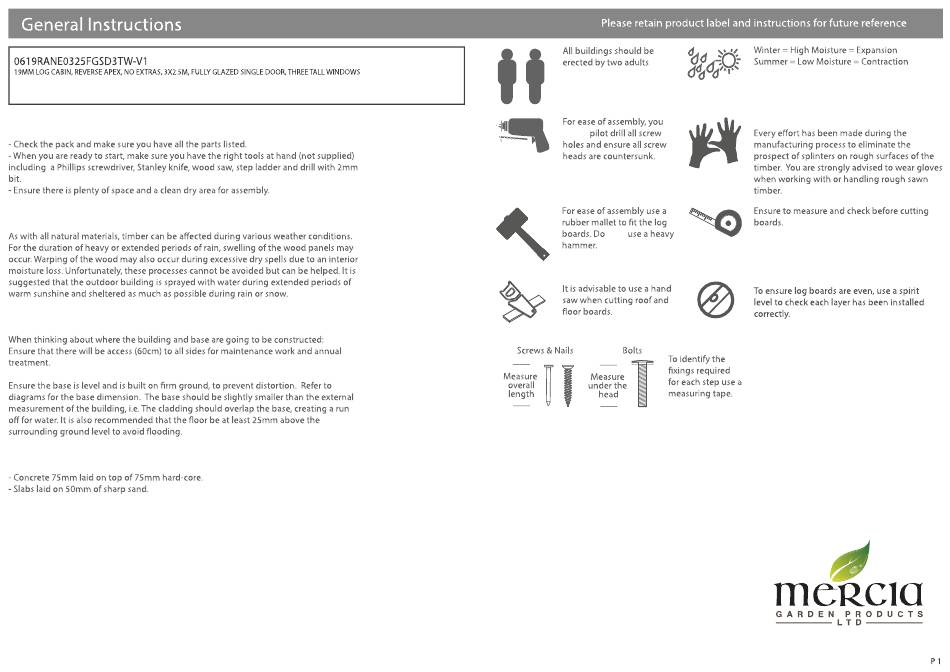

BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
TIMBER
BUILDING A BASE
TYPES OF BASE
Whilst all products manufactured are made to the highest standards of Safety and in
the case of childrens products independently tested to EN71 level, we cannot accept
responsibility for your safety whilst erecting or using this product.
Refer to the instructions pages for your speci c product code
MUST
2mm Drill bit
NOT
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
CAUTION

Advertisement

loading
Need help?

Need help?

Do you have a question about the 0619RANE0325FGSD3TW-V1 and is the answer not in the manual?

Questions and answers

Related Manuals for Mercia Garden Products 0619RANE0325FGSD3TW-V1

Summary of Contents for Mercia Garden Products 0619RANE0325FGSD3TW-V1

  • Page 1 EN71 level, we cannot accept responsibility for your safety whilst erecting or using this product. For assistance please contact customer care on: 01636 821215 Refer to the instructions pages for your speci c product code Mercia Garden Products Limited, Sutton On Trent, Newark, Nottinghamshire, NG23 6QN www.merciagardenproducts.co.uk...

  • Page 2: Window Contents

    Single Door Contents: Before assembly please make sure you have a suitable base ready to erect your building MADE IN GREAT BRITAIN Fully Glazed Door QTY 1 AI-06LOGSANFGMD750X1900-V1 Window Contents: Door Frame Left Upright - 71x70x2065mm QTY 1 AI-0619LOGDUFL-V3 Door Frame Right Upright - 71x70x2065mm QTY 1 AI-0619LOGDUFR-V3 Window Frame Left Upright - 71x70x2065mm QTY 3 AI-0619LOGDUFL-V3...

  • Page 3: Pre-Assembly

    Main Building Contents Roof Board - 12x121x1344mm QTY 56 MB12-1344 Floor Board - 12x121x2264mm QTY 26 MB12-2264 Gable - 2500mm QTY 1 Notched Window Gable - 2500mm QTY 1 AI-0619RANE0325FGSD3TW-G Storm Brace - 27x44x2000mm QTY 8 AI-0619RANE0325FGSD3TW-GW F2744-2000 Closure Trim - 16x28x2400mm (approx length) QTY 11 S1628-2400 Starter Board - 19x66x2996mm QTY 2 LB19RT66-A-2996...
  • Page 4 IMPORTANT: Pre-drill before xing screws. Step 3 Step 1 IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 19 QTY 2 Parts Needed - No. 30 QTY 2 No. 24 QTY 2 No. 31 QTY 2 No’s. 19 & 24 No’s.
  • Page 5 Step 4 IMPORTANT : Pre-drill before xing screws. Step 5 Parts Needed - No. 20 QTY 6 Parts Needed - No. 2 QTY 3 No. 22 QTY 6 No. 3 QTY 3 No. 24 QTY 6 No. 4 QTY 3 No.
  • Page 6 IMPORTANT : Pre-drill before xing screws. Step 6 Step 7 IMPORTANT : Pre-drill before xing screws. Parts Needed - No. 1 QTY 3 Parts Needed - No. 8 QTY 1 No. 9 QTY 1 No. 1 No. 10 QTY 1 No.
  • Page 7 Step 9 Step 8 Parts Needed - No. 21 QTY 18 Parts Needed - No. 21 QTY 18 (No.21) (No.20) **If you have not yet assembled your door frames please refer to step 7. **If you have not yet assembled your window frames please refer to steps 5&6.
  • Page 8 Step 10 Step 11 Parts Needed - No. 20 QTY 6 No. 25 QTY 6 (No.25) **If you have not yet assembled your window frames please refer to steps (No.21) 5&6. *Please note: This image is for **If you have not yet assembled your illustrative purposes and may differ window frames please refer to steps from your choice in product...
  • Page 9 Step 12 Step 13 Parts Needed - No. 20 QTY 12 Parts Needed - No. 20 QTY 12 No. 22 QTY 6 No. 22 QTY 6 No. 24 QTY 6 No. 24 QTY 6 No. 25 QTY 12 No. 25 QTY 12 No’s.
  • Page 10 Step 14 Step 15 IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 23 QTY 1 Parts Needed - No. 17 QTY 1 No. 36 QTY 1 No. 18 QTY 1 No. 17 & 18 (No.23) (No.36) *Ensure that the boards are level and ush with each other as you *Ensure that the boards are level lay each one.
  • Page 11 Step 17 Step 16 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 26 QTY 3 Parts needed - No. 32 QTY 56 s No. 26 No. 32 No. 38 ensure to pre-drill to avoid the boards splitting *Please note: The gable shown is for illustrative purposes and may differ in width from your choice in product.
  • Page 12 Step 19 Step 18 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 27 QTY 2 Parts Needed - No. 7 QTY 1 No. 13 QTY 2 Once the roof is xed, (No.7) (No.13) No.27 *Please Note: This image is for illustrative purposes and may differ from your choice in product.
  • Page 13 Step 21 Step 20 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 33 QTY 26 Parts Needed - No. 14 QTY 1 No. 15 QTY 1 No. 33 No. 16 QTY 1 No. 15 internally No.
  • Page 14 Step 24 Step 22 IMPORTANT: Pre-drill before xing screws. Parts needed - No. 37 Parts needed - No. 35 QTY 6 Roof Roof 3100mm (L) X 1000mm (W) No. 35 *Ensure there is approximately *Measure and cut the closure trims to 50mm of overhanging felt each t the internal space.
  • Page 15 Step 25 Step 26 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed: No. 6 QTY 3 Parts Needed - No. 28 QTY 4 No. 29 QTY 2 No. 12 QTY 1 No’s. 28 & 29 (No. 6) (No.
  • Page 16 Step 27 IMPORTANT: Pre-drill before xing screws. Parts needed - No. 34 QTY 8 No. 34 It is ESSENTIAL that you apply wood internally treatment immediately after the building has been assembled. *Ensure the storm braces are secured at the highest point possible on each side. **Storm braces will help your building expand and contract properly.
