Planning the machine room

When planning the machine room, it is important to make sure there is enough space around the plant
to allow for repairs and maintenance tasks to be performed.

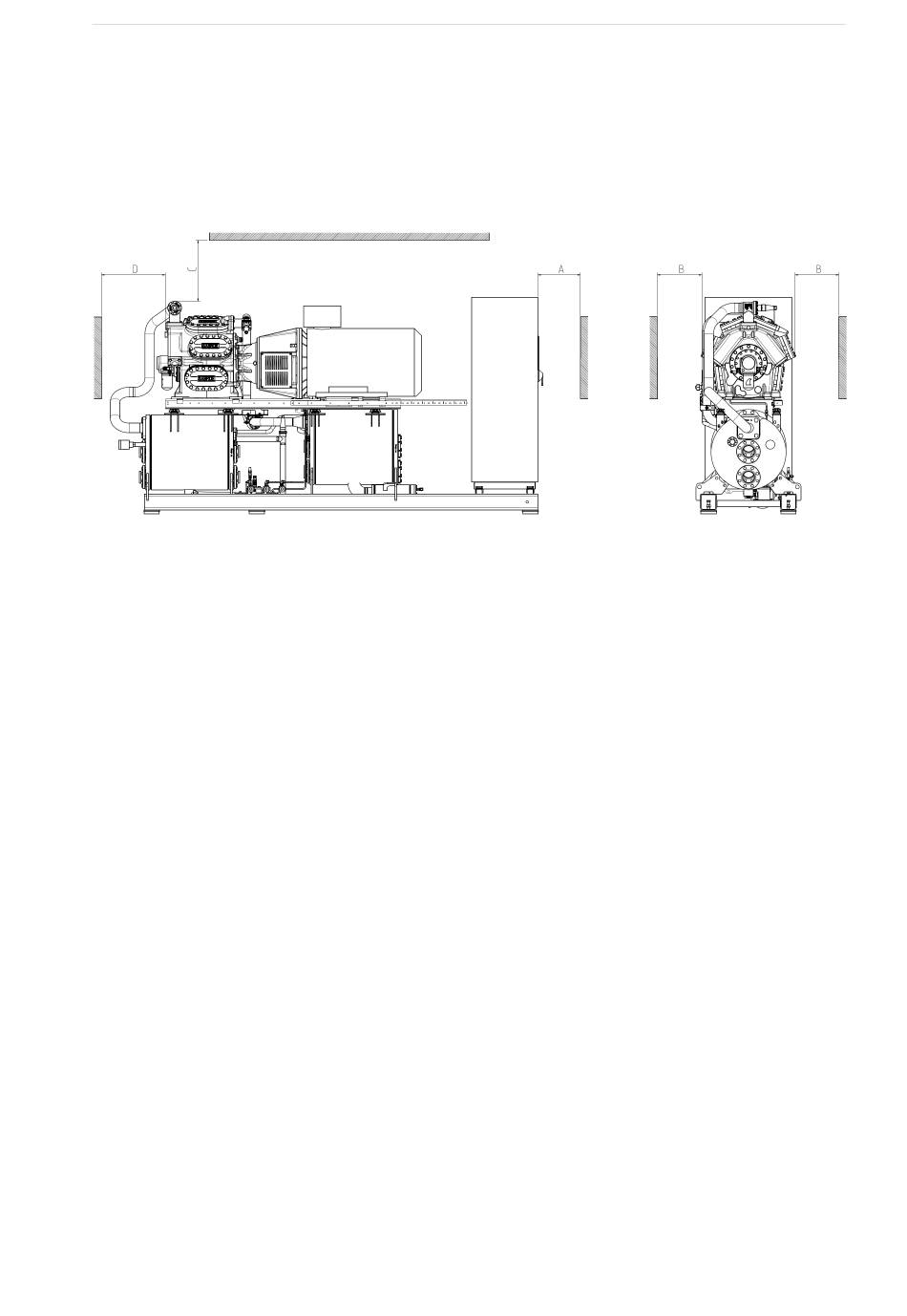

Fig. 2 shows the minimum required spacing.
Fig. 2
A) For operation and opening of electric panel
B) For withdrawing suction filter and pistons
For withdrawing pistons
C)
D) For withdrawing crane shaft
ChillPAC 104-106-108
ChillPAC 112-116
HeatPAC 24-26-28
HeatPAC 104-106-108-704-706-708
HeatPAC 112-116-712-716
The foundation must have the necessary bearing strength and be as plane as possible.
1100 mm
200 mm
200 mm
500 mm
1000 mm
400 mm
500 mm
1000 mm
