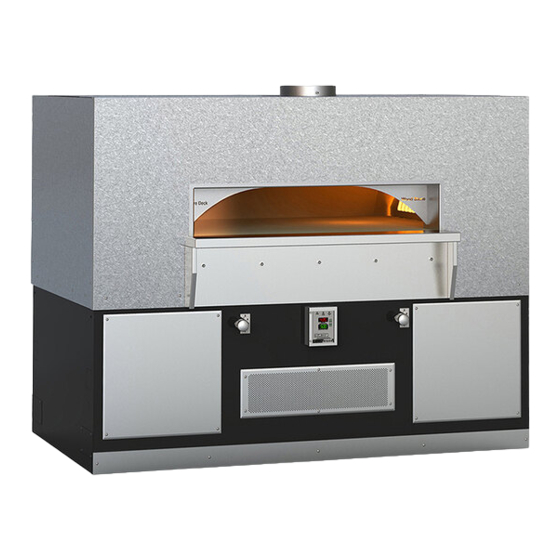

Wood Stone FD-9660 Installation And Operation Manual

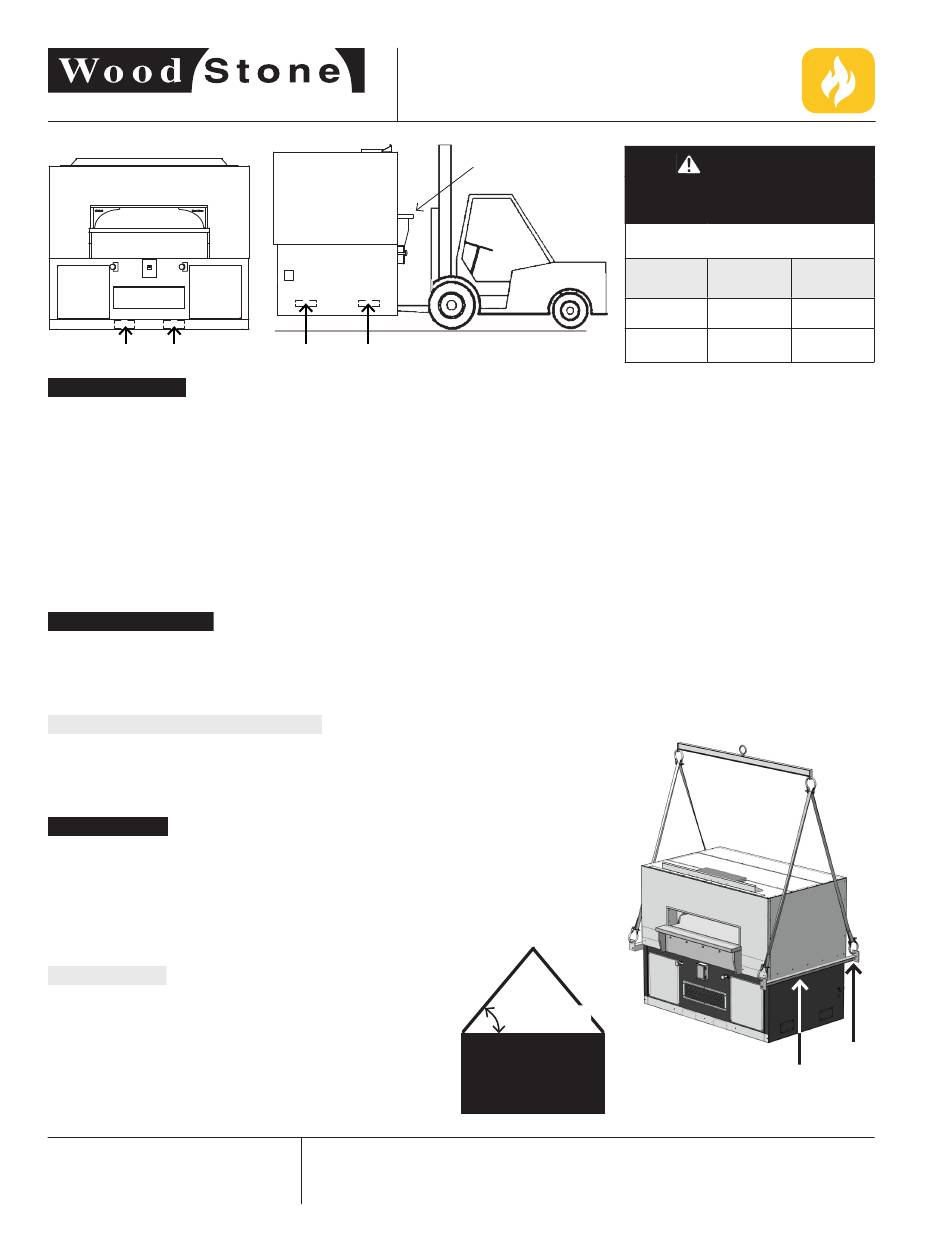

Front Forklift / Pallet Jack Pockets
USING A FORKLIFT.
The Wood Stone Fire Deck 9660 weighs approximately 6,000 lbs�, and the Fire Deck 11260 weighs approximately 6,800 lbs� Both
are top heavy�
Use a forklift with adequate fork lengths and lifting capacity� When using a forklift, always use the forklift pockets� Lifting the oven
any other way with a forklift may result in damage� Use extreme caution and make sure that the forks extend all the way through
the pockets provided� The fork pockets accommodate forks up to 9" wide� Fork length must be at least 6' long� If it is necessary to
approach the oven from the front, be sure the mast does not contact the mantle (shelf)�
There are fork pockets at the front and sides of the oven� Note: Forklift capacity is different if lifting from the front/rear or the sides�
Once the oven is on a smooth flat level surface it can be rolled on its optional heavy-duty, temporary shipping Casters (details next
page)�
USING A PALLET JACK.
The oven may also be moved with a Pallet Jack using the front or rear fork pockets only� Once the oven is on a smooth, flat floor it
can be rolled to its final position� DO NOT ATTEMPT TO MANUALLY ROLL THE OVEN UP OR DOWN A RAMP OR INCLINE. Do not
position yourself between the moving oven and an immovable object or surface such as a wall or door frame�
DO NOT TURN THE OVEN ON ITS
Moving a Wood Stone oven can present interesting challenges to even the most
experienced riggers� Make sure to secure the proper equipment and make safety
your first priority� Please don't hesitate to call the factory for technical support�
USING A CRANE.
If you are planning to use a crane to unload the oven,
specify a flatbed truck delivery.
Use the Pickeyes provided on the sides of the oven to lift the oven with
a crane� The Spreader Bar should be of a sufficient length to keep the
sling from contacting the oven, and oriented as shown in fig 1�
DELIVERY NOTE.
The customer will receive an Oven Shipping Notification when
the oven leaves the Wood Stone factory� This will include a
PRO# and a trucking company contact number� Wood Stone
recommends that you confirm the delivery date/time with the
trucking company before committing to heavy equipment and/
or labor� Our goal is a smooth and safe delivery�
M0259.05 DECEMBER 2019
An ongoing program of product improvement may
require us to change specifications without notice.
8
PG OF 40
UNLOADING & MOVING THE OVEN
Fire Deck FD-9660 & FD-11260
Installation and Operation Manual
Side Forklift Pockets
SIDE!.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
Use caution
near mantle
Model
FD-9660
FD-11260 12,000 lbs 17,000 lbs
Shown: FD-9660
Pickeye
Capacity
per Beam
4,000 lbs
50°MIN Angle
LOAD
Orient Spreader Bar
as shown in fig. 1
800.988.8103
TOLL FREE
360.650.1111
TEL
360.650.1166
FAX
WARNING
Minimum Required
Forklift Capacities
6' FORKS MINIMUM
Lifting from Lifting from
Front or Rear Sides
11,000 lbs 13,000 lbs
fig. 1
Shown:
FD-9660
Pickeye
Beam
