E2S IS-D105 Instruction Manual

The IS-D105 sounder is CE marked for
compliance with the European
Explosive Atmospheres Directive
2014/34/EU and the European EMC
Directive 89/336/EEC

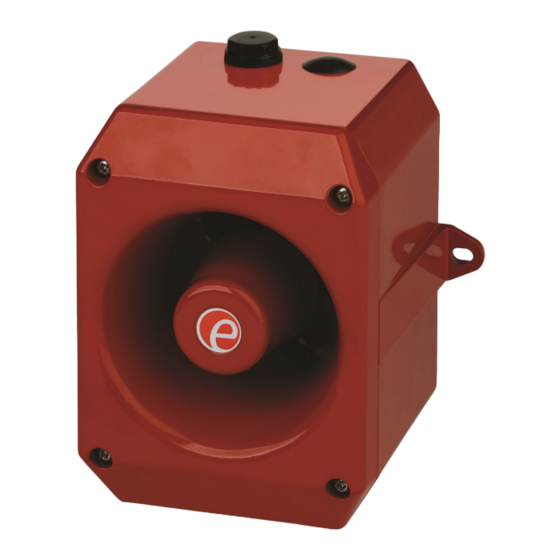

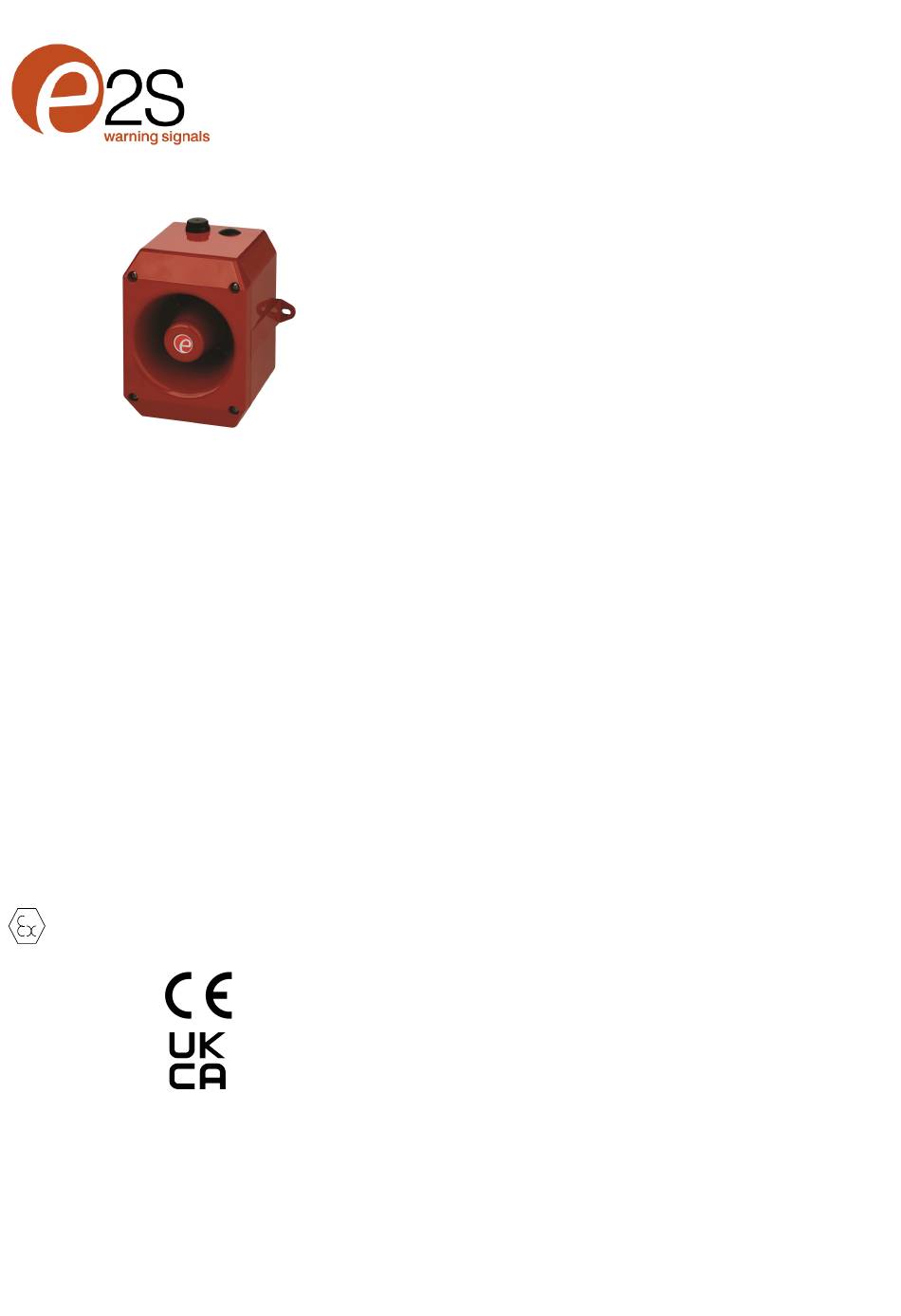

1) Introduction
The IS-D105 is an ATEX, IECEx and UKEX certified
intrinsically safe sounder which produces a loud warning
signal in a hazardous area. Forty-nine first stage alarm
sounds can be selected by internal switches and each one
can be externally changed to a second or third stage alarm
sound. The sounder may be used in all gas groups IIA, IIB
and IIC. An IS-DL105 intrinsically safe combined sounder and
beacon is also available.
2) Ratings and Markings
2.1 ATEX/IECEx/UKEX certification
The IS-D105 sounder complies with the following standards:-
EN IEC 60079-0:2018 / IEC60079-0:2017
EN60079-11:2012 / IEC60079-11:2011
II 1G Ex ia IIC T4 Ga (-40ºC <= Ta <= +60ºC)
CE Marking and
Notified Body No.
UKCA Marking and
Notified Body No.
The EC-Type Examination Certificate SIRA 04ATEX2301X
has been issued by the Notified Body Sira. This confirms
compliance with the European ATEX Directive 2014/34/EU
for Group II, Category 1 G equipment. The sounder carries
the Community Mark and subject to local codes of practice,
may be installed in any of the EEA member countries. The
product has also been approved to both the IECEx scheme
_______________________________________________________________________________________________________________________________
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document No. D187-00-001-IS
INSTRUCTION MANUAL
Intrinsically Safe Sounder
2813
0518
Issue 4 12-09-22
IS-D105
with Certificate no. IECEx SIR04.0038X, and the UKEX
scheme with certificate number CSAE 21UKEX2551X.
This instruction sheet describes installations which conform
to:
EN60079-14:2008/IEC60079-14:2007 Electrical Installation in
Hazardous Areas.
When designing systems for installation outside the UK, the
local Code of Practice should be consulted.
The certification marking is as follows:
1) The certificate number has an 'X' suffix, which
indicates that the certificate contains one or more
special conditions for safe use. Those installing or
inspecting the equipment should refer to this section
of the certificate.
2) The equipment has not been assessed as a safety-
related
2014/34/EU Annex II, clause 1.5).
3) Installation of this equipment shall be carried out by
suitably-trained personnel in accordance with the
applicable code of practice.
4) Repair of this equipment shall only be carried out by
the manufacturer or in accordance with the
applicable code of practice.
5) The certification of this equipment relies on the
following materials used in its construction:
Enclosure: Aluminium Pressure Die Cast Body LM6
Sealing of Enclosure & Mechanism: 'O' Ring
If the equipment is likely to come into contact with
aggressive substances, then it is the responsibility of
the user to take suitable precautions that prevent it
from being adversely affected, thus ensuring that the
type of protection is not compromised.
"Aggressive substances" - e.g. acidic liquids or
gases that may attack metals, or solvents that may
affect polymeric materials.
"Suitable precautions" - e.g. regular checks as part
of routine inspections or establishing from the
material's data sheet that it is resistant to specific
chemicals.
2.2 Zones, Gas Groups and Temperature Classification
The IS-D105 sounder has been certified Ex ia IIC T4 Ga.
When connected to an approved system it may be installed
in:
Zone 0 explosive gas air mixture
continuously present.
Zone 1 explosive gas air mixture likely to occur in
normal operation.
Zone 2 explosive gas air mixture not likely to occur,
and if it does, it will only exist for a short time.
Be used with gases in groups:
Group IIA
Group IIB
www.e2s.com
Sheet 1 of 5
device (as referred
propane
ethylene
Tel: +44 (0)20 8743 8880
to by Directive
