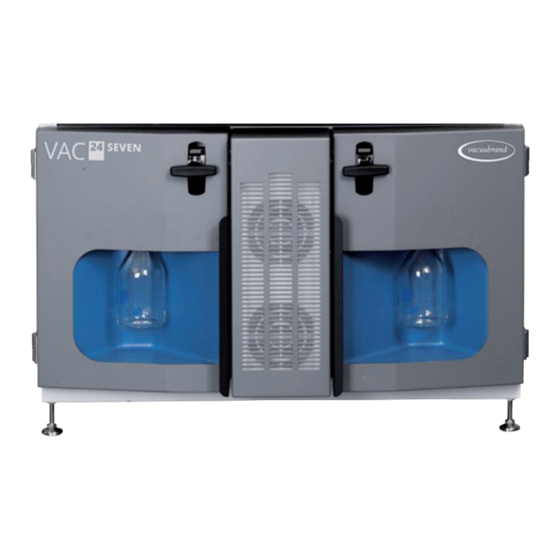

vacuubrand VAC 24seven Instructions For Use Manual
Vacuum pumping unit
Hide thumbs
Also See for VAC 24seven:
- Instructions for use manual (50 pages) ,
- Instructions for use manual (62 pages) ,
- Instructions for use manual (72 pages)
Related Manuals for vacuubrand VAC 24seven
Summary of Contents for vacuubrand VAC 24seven
- Page 1 Accessories Technology for Vacuum Systems Vacuum pumping unit Interconnection set for 2 pump modules Instructions for use Original instructions EN OI no.: 20901488...
- Page 2 Interconnection set for 2 Pump modules Product description The interconnection set is intended to extend the suction and the exhaust line between two pump modules of a vacuum pumping unit VAC 24seven. The included screws (1) (1) are for fixing the Pump module onto the other existing pump module.
- Page 3 Interconnection set for 2 Pump modules Included materials Interconnection set VAC 24seven #20745011 Order N°. 4x Hexagon screws with flange M10x25 A2 20635293 Interconnection set KF40 (1x outlet + 1x inlet) 2x Tube ID40 PTFE AS Ultra EX 20637156 4x AL clamp DN38...
- Page 4 Interconnection set for 2 Pump modules How to install the inlet-pipe 20901488_EN_VAC_24seven_Verbindgset-2xPumpmod C-Rev_V1.1_140921...
- Page 5 Interconnection set for 2 Pump modules 20901488_EN_VAC_24seven_Verbindgset-2xPumpmod C-Rev_V1.1_140921...
- Page 6 Interconnection set for 2 Pump modules How to install the outlet-pipe 20901488_EN_VAC_24seven_Verbindgset-2xPumpmod C-Rev_V1.1_140921...
- Page 7 Interconnection set for 2 Pump modules 20901488_EN_VAC_24seven_Verbindgset-2xPumpmod C-Rev_V1.1_140921...
- Page 8 Installed interconnection set A = Inlet B = Outlet [Fig.] Rear side VAC 24seven with interconnection set for 2 pump modules (Parts on customer side are drawn partially transparent). IMPORTANT! Before commissioning, check the clamping rings again and tighten them >...
- Page 9 Interconnection set for 2 Pump modules 2x Interconnection sets installed at 3 Pump modules (example) 20901488_EN_VAC_24seven_Verbindgset-2xPumpmod C-Rev_V1.1_140921...
- Page 10 This manual is only to be used and distributed in its complete and original form. It is strictly the user's responsibility to carefully check the validity of this manual with respect to the product. Manufacturer: VACUUBRAND GMBH + CO KG VACUUBRAND GMBH + CO KG Alfred‑Zippe‑Str. 4 Alfred‑Zippe‑Str.
