Summary of Contents for Furniture of America CM7673Q

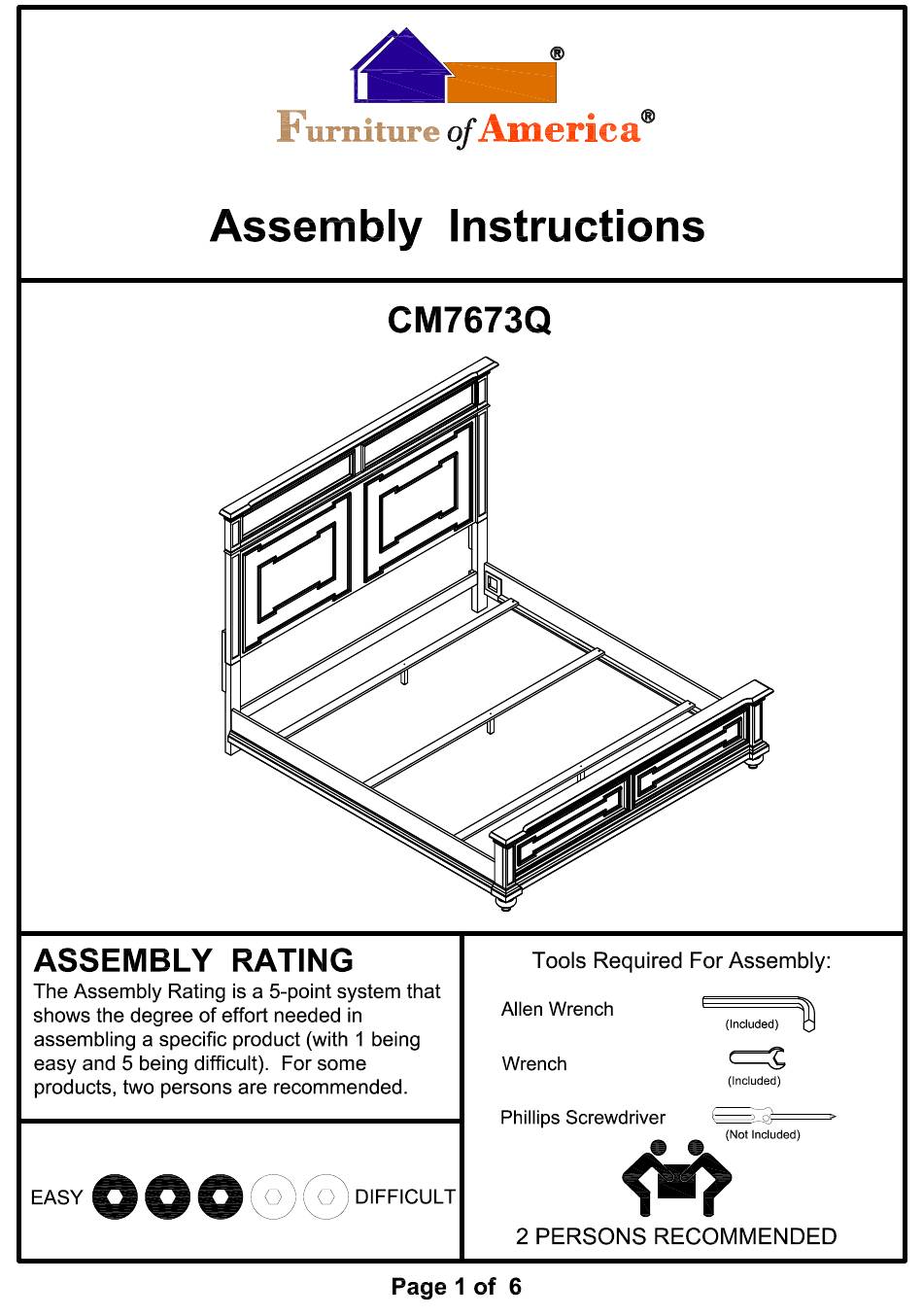

- Page 1 Rev: 16-06-15...
- Page 4 1. Prepare 4 bolt assemblies by first inserting a lock washer (#B) onto the bolt (#I) then a flat washer (#C) onto that same bolt (#I). Align the headboard support (#5) to the holes along the legs, then insert the bolts into each end. Secure. #I x 2pcs 2.
- Page 5 1. Insert the threaded studs (#F) into the holes along the head- board (#1) and footboard (#3). Turn right to tighten. 2. Place the side rails (#4) onto those threaded studs (#F), then apply the hex nut (#G) from within. Secure using the wrench (#H).
- Page 6 Place the slats (#6) onto the rails, then insert a screw (#E) into each end. Secure using a screwdriver.
- Page 7 Rev: 16-06-15...
- Page 10 1. Prepare 4 bolt assemblies by first inserting a lock washer (#B) onto the bolt (#I) then a flat washer (#C) onto that same bolt (#I). Align the headboard support (#5) to the holes along the legs, then insert the bolts into each end. Secure. #I x 2pcs 2.
- Page 11 1. Insert the threaded studs (#F) into the holes along the head- board (#1) and footboard (#3). Turn right to tighten. 2. Place the side rails (#4) onto those threaded studs (#F), then apply the hex nut (#G) from within. Secure using the wrench (#H).
- Page 12 Place the slats (#6) onto the rails, then insert a screw (#E) into each end. Secure using a screwdriver.
