Quick Start Guide

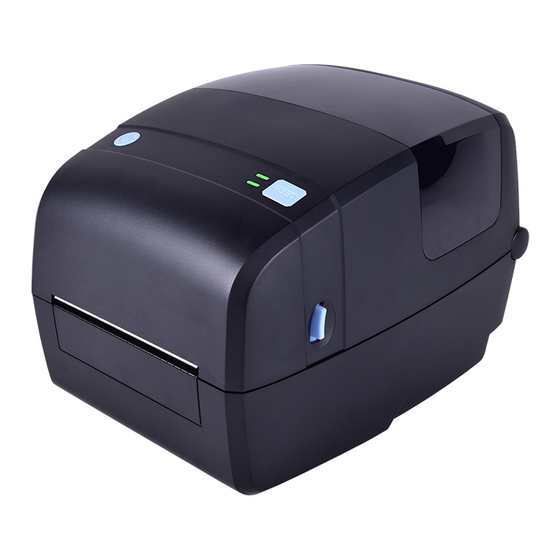

Alpha
Xiamen Hanin Electronic Technology Co.,Ltd.
ADD: 5F, 8#, Aide Airport Industrial Park, Huli District, Xiamen, China.
TEL： 400-806-9290
WEB： www.hprt.com
Packing List
Printer
Label Roll
CD
USB Cable
！
Note: The packing materials are actually based on the order.
AC Adapter
Power Cord
Quick Start Guide
Quick Start Guide
RibboRn
Appearance and Components
Front View
Power Bu�on
Opera�on Keys
Printer Cover
Rear View
USB Port (Type B)
！
Note: The views above are for your reference. Ports vary by
your choice.
Inside View
Ribbon Supply Wheel
Moveable Roll Holders
Locking Tab
Moveable Label Guides
USB Connec�on
1.Connect the AC adapter to power receptacle.
2.Connect the power cord to AC adapter.
3.Connect the other end of power cord to the outlet.
1
Status Indicator
Feed Bu�on
Cover Open Levers
Serial Port
Power Receptacle
Ethernet Port
Printhead Module
Ribbon Supply Pin
Kick-stand Cover Lock
Label Sensor
Platen
2
3
Varies by regions
Advertisement
Table of Contents
Related Manuals for HPRT Alpha
Summary of Contents for HPRT Alpha
- Page 1 Status Indicator Quick Start Guide Power Bu�on Feed Bu�on Opera�on Keys Cover Open Levers Printer Cover Alpha Rear View Serial Port Power Receptacle USB Port (Type B) Ethernet Port ！ Note: The views above are for your reference. Ports vary by your choice.
- Page 2 4.Rotate the ribbon rewind wheel un�l ribbon is pulled �ghtly. 5.Close the printhead module. Then press the lock and close 6.Press down the cover un�l it snaps closed. the cover slightly. ！ Note: Please refer to windows driver installa�on in Alpha User Manual.
