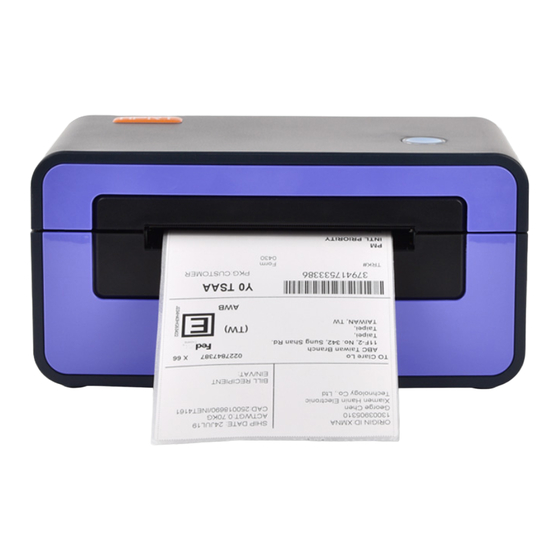

HPRT SL42 User Manual

Hide thumbs Also See for SL42:
Table of Contents

Advertisement

Quick Links

Xiamen Hanin Electronic Technology Co.,Ltd.
ADD:
5F, 8#, Aide Airport Industrial Park, Huli District, Xiamen, China
Tel.:
+86-(0)592-5885991
Web:
www.hprt.com

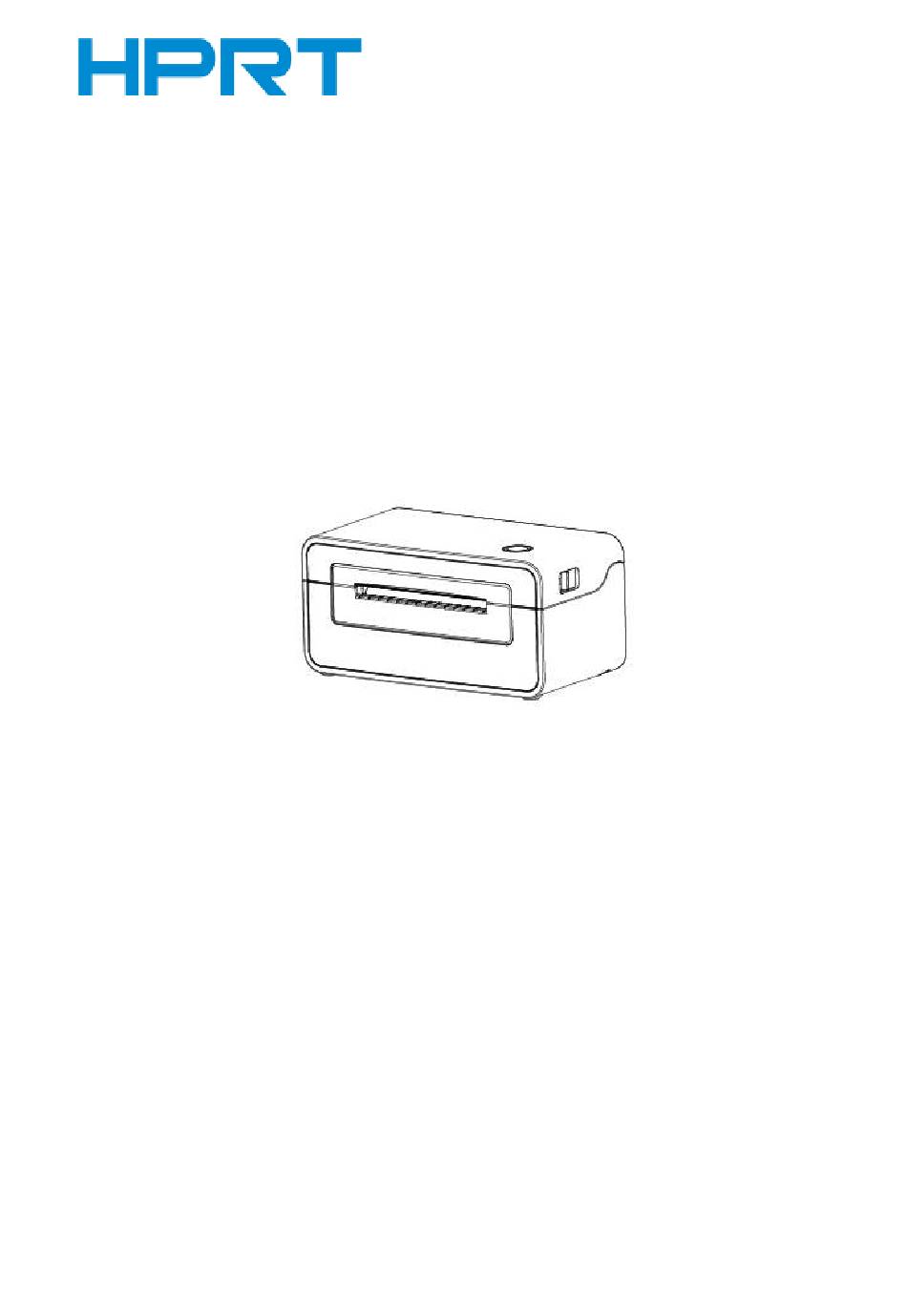

SL42
User Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SL42 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HPRT SL42

Summary of Contents for HPRT SL42

  • Page 1 SL42 User Manual Xiamen Hanin Electronic Technology Co.,Ltd. ADD: 5F, 8#, Aide Airport Industrial Park, Huli District, Xiamen, China Tel.: +86-(0)592-5885991 Web: www.hprt.com...

  • Page 2: Table Of Contents

    CONTENT Manual Information ......................... 2 Important Safety Instructions ....................3 Chapter 1 Introduction......................6 1.1 Packing List ......................... 6 1.2 Appearance and Components ..................7 1.3 Dimension ........................8 Chapter 2 Specifications ......................9 Chapter 3 Installation & Usage ....................11 3.1 Media Loading ......................
  • Page 3 SL42 User Manual ◼ Statement This manual content may be changed without permission and our company reserve the rights to make changes in technology, spare parts, hardware and software of the products. Please contract our company, if the user need further information about the products. Without any written permission from our company, any section of this manual is prohibited to be copied or transferred in any form.

  • Page 4: Manual Information

    SL42 User Manual MANUAL INFORMATION This user manual contains basic information for product usage as well as for emergency measures that may be required. 1.Windows Driver Manual This manual contains the information of Windows Driver loading and main function. 2.Utility Manual This manual contains the information of the use of software and the modification of operating conditions.

  • Page 5: Important Safety Instructions

    SL42 User Manual IMPORTANT SAFETY INSTRUCTIONS Before using the printer, please read carefully the following safety consideration in case of bodily injury or equipment damage. 1.Safety warning The print head will become very hot during printing, please do not touch the printhead and peripheral parts during printing and printing just finished.
  • Page 6 SL42 User Manual Note: Violating following instructions may cause slight damage of the appliance. 1) If you observe a strange smoke, odour or noise from the printer, unplug it before taking following measures. • Switch off the printer and unplug the set from the mains.
  • Page 7 SL42 User Manual 3.Other Precautions The copyright for this user manual and various other manuals is property of our company. Any copying or conversion into electronic form and saving of this material without the express written permission is strictly prohibited. Use of the information contained in this manual is not subject to any patent liability.

  • Page 8: Chapter 1 Introduction

    SL42 User Manual CHAPTER 1 INTRODUCTION 1.1 Packing List Note: 1.Unpack the printer and keep the packing materials in case you need to ship the printer in the future. 2.Any damages exist, please contact the local dealer. Note ： The packing materials are actually based on the order.

  • Page 9: Appearance And Components

    SL42 User Manual 1.2 Appearance and Components ￭ Front View ￭ Rear View ￭ Inside View Note ： The views above are for your reference. Ports vary by your choice.

  • Page 10: Dimension

    SL42 User Manual Dimension...

  • Page 11: Chapter 2 Specifications

    SL42 User Manual Chapter 2 Specifications Items Parameter Printing method Direct thermal Resolution 203dpi(8dots/mm) Printing Printing speed 50-150mm/s Printing width 50-108mm Printing length 25mm - 300mm Processor 32 bits RISC CPU Memory Flash Paper out detection, seam label detection, black...
  • Page 12 SL42 User Manual Items Parameter Code 39, Code 93, EAN 8/13 (add on 2 & 5), UPC A/E (add Barcode on 2 & 5), I 2 of 5, Codabar, Code 128 (subset A, B, C) QR Code Communication Interfaces FEED button with three color lights...

  • Page 13: Chapter 3 Installation & Usage

    SL42 User Manual CHAPTER 3 INSTALLATION & USAGE 3.1 Media Loading 3.1.1 Paper Roll Loading ■ Folding Paper Loading 1.Turn the power on, adjust the paper guides to fit the width of paper. 2.Insert the paper into the entry slot.
  • Page 14 SL42 User Manual ■ External Paper Roll Loading NOTE: 1. When the printer is power on, the paper will be inhaled into the path automatically. 2. The external paper roll holders needs to be aligned with the hooks at the bottom of the...
  • Page 15 SL42 User Manual 3.1.2 Paper Jam 1. Press the cover open levers and hold upwards. 2. Open the printer cover. 3. Take out the jammed paper, then clean up the print head and platen.
  • Page 16 SL42 User Manual 4.Reload a new paper.
  • Page 17 SL42 User Manual 3.1.3 Loading the external paper roll...

  • Page 18: Power Connection

    SL42 User Manual 3.2 Power Connection 1. Make sure the printer’s power switch is in the off position. 2. Connect the power cord to printer. 3. Connect the other end of power cord to the outlet. NOTE: 1.Use the original power adapter only, in case that the damage caused by charging improperly.

  • Page 19: Peripherals Connection

    SL42 User Manual 3.3 Peripherals Connection 3.3.1 Interface Cable Connection The standard for the printer’s interface cable shows in the following. -- USB B-Type Cable Installation steps: 1. Connect the printer to power. Refer to the "3.2 Power Connections" section for detailed instructions.

  • Page 20: Paper Sensor

    SL42 User Manual 3.4 Paper Sensor When printing, the paper needs to be detected by a label detector. Using different kinds of paper, the detector is located in a different position. If the detector is in an incorrect position that will cause the printer to fail to detect properly, resulting in an abnormal phenomenon of jumping paper.
  • Page 21 SL42 User Manual Figure 2...
  • Page 22 SL42 User Manual 3.4.2 Black Label When using Black Label paper (figure III), move the detector to detect the black label paper until it is positioned at the location of the Black label (figure IV). Figure 3...
  • Page 23 SL42 User Manual Figure 4...

  • Page 24: Operation Panel

    SL42 User Manual 3.5 Operation Panel 1.Feed Buttton: ◼ Turn on In the shutdown state, turn on the power switch behind the printer, then the indicator will be light on. ◼ Turn off When the power switch is turned off, the printer shuts down and the indicator light is off. In the power-on state, turn off the power switch behind the printer, then the indicator will be light off.

  • Page 25: Basic Function

    SL42 User Manual 3.6 Basic Function 3.6.1 Power On/ Power Off 1) Press “O” to power off the printer. Press “l” to power on the printer. Press the feed button, the printer sends the paper out to the specified position depending on the type of paper used.
  • Page 26 SL42 User Manual 3.6.3 Quick Calibration Users must carry out the calibration under the conditions below: ￭The first time to use the printer since installation. ￭The first time to use the printer since sensor cleaning. ￭Reuse the printer when it has not been used for a long time.
  • Page 27 3.6.4 Print Self-test Page The self-test checks the printer’s current settings, status and whether the printer has any problems or not. Please confirm the following status. Firmware version, printer parameter setting status, print quality and external equipment related settings information, etc. If there are no problems with the printer, please check other devices or software.

  • Page 28: Chapter 4 Interface

    CHAPTER 4 INTERFACE 4.1 USB Interface SIGNAL NAME VBUS...

  • Page 29: Chapter 5 Maintenance & Adjustment

    CHAPTER 5 MAINTENANCE & ADJUSTMENT Adhesives and coatings of the media can transfer to the printer parts over time along the media path including the thermal print head and media sensor. This build-up can accumulate dust and debris. Failure to clean the print head, media path, and media sensor could result in inadvertent loss of labels, label jams and possible damage to the printer.

  • Page 30: Chapter 6 Label Printer Utility Instructions

    CHAPTER 6 LABEL PRINTER UTILITY INSTRUCTIONS 6.1 Installation Preparation Download HPRTUtilityLabel application program in CD. 6.2 Usage Note: the following takes Windows 7 operating system for example, which may vary depending on the operating system on your computer. 1.Download “HPRTUtilityForLabel_ V2.0.0.0”. 2.Then open the “HPRTUtilityForLabel_Channel.exe”.
  • Page 31 3.Add/Modify/Delete Printer, Connect Test. ●Click “Add Printer”. Choose the printer and port (eg: USB), then click “OK”, showed in “Printer List”.
  • Page 32 ●Click “Delete Printer”. Click “OK” to delete the printer and click “Cancel” to cancel the command. ●Click “Connect Test” to test whether the connection is successful or not. If connection succeeds, it shows as follows. If connection fails, it shows as follows. Note: Note: Please connect your printer to power firstly, choose one port (depend on the printer you bought) to connect to the PC.
  • Page 33 4.Function. ●Click “Printer Information”, showing printer information. (varies by different printers) ●Click “Print Test Text”. Type the text. Click “Print”, then printer starts to print the test text. ●Click “Print Self Information”, then printer starts to print self-test page. ●Click “Label Auto Learn”, then printer will carry out the calibration.
  • Page 34 ●Click “Parameter Setting”. User can set up the BT config, density, paper mode and so on. 1) BT setting: Note: When the "simple pairing" is checked, the printer does not need to enter the Bluetooth password to connect, when the "simple pairing" is not checked, the printer needs to enter a Bluetooth password to connect.
  • Page 35 2) Print density (choose range:0~15):...
  • Page 36 3) Heat Adjust...
  • Page 37 4) Paper Mode (Label, Receipt, BlackMark):...
  • Page 38 5) Print Speed (choose range:2,3,4): 6) Click “Set” and back to the main menu. ●Click “Restore Factory Settings”. Click “OK” to restore factory settings and click “Cancel” to cancel the command. 5.Click “Quit”, and finish printer settings.

  • Page 39: Chapter 7 Windows Driver Instruction

    Microsoft Windows Server 2012(64 bit) Microsoft Windows Server 2008 R2 Microsoft Windows Server 2008 SP2(32 bit/64 bit) Microsoft Windows Server 2003 R2 SP2(32 bit/64 bit) 7.2 Installation Preparation Download Windows Driver application program in CD. Eg.: HPRT Label Printer Driver-v-26.3.0...

  • Page 40: Installation

    7.3 Installation Warning: There are some differences under different operating system. Please operate it according to the tips. Recommend to close security software before installation in case of preventing installation. 1.Select one interface to connect your printer to computer. 2.Turn on the printer and check if it is connected to computer successfully. 3.Double click Windows Driver.
  • Page 41 5. Select the default installation port name of printer driver, then click “Next”. 6.Click"Finish".
  • Page 42 7.After installation, the icon will be found in “Start” → “Devices and Printers”. Note: 1.If you have already installed the driver (No matter what kind of ports), it will generate a USB port automatically when connecting the printer to computer. 2.Any problems exist, please use our utility tool in CD.

  • Page 43: Usage

    7.4 Usage 7.4.1 Printing Preferences 1.Click “Start” → “Devices and Printers”. Right click the icon and choose “Printing preferences”.
  • Page 44 2.According to different needs, set the page.
  • Page 45 ●Click “Paper Name”, then choose the paper type.
  • Page 47 ●Click “Manager” to add a new stock. ●Choose “Rotate” or “Effect”, it will be showed in the “Preview”.
  • Page 49 ●Click “Advanced” to set “Save Paper”, “Density”, “Speed”, “Test”, “Media Handing”, “Media Type”. 1) Save Paper 2) Density...
  • Page 50 3) Speed 4) Test...
  • Page 51 1) Media Handing 2) Media type...
  • Page 52 3.Click “Watermark”, it recommends to use BMP format.
  • Page 53 4.Click “Halftone”.
  • Page 54 7.4.2 Printer Properties 1.Click “Start”→ “Devices and Printers”. Right click the icon and choose “Printer properties”.
  • Page 55 2.Click “General” → “Print Test Page”, and printer will print labels with current settings.
  • Page 56 3.Click “Ports”, then choose the port needed.
  • Page 57 4.Click “Advanced” to set the available time for the printer.

  • Page 58: Removing

    7.5 Removing Note: Please turn off the printer or unplug the USB cable before removing the driver. 1.Double click Windows Driver. 2.Choose “Uninstall printer driver”, then click “Next”.
  • Page 59 3.Choose the printer driver name needed to uninstall, then click “Next”. 4.Click"Yes".
