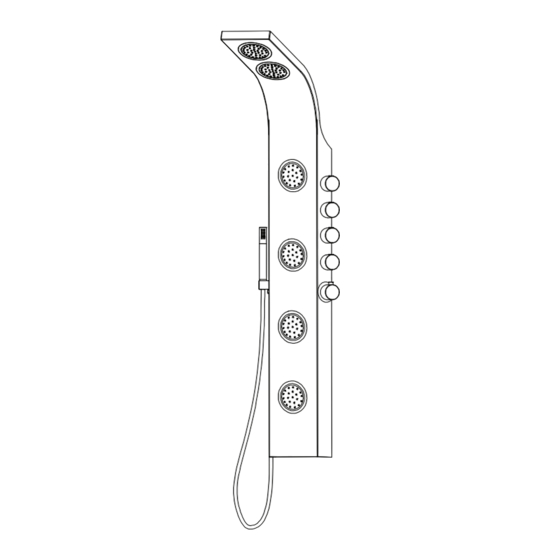

Decor Star PL-033-SS
Features
- Elegant & Durable stainless steel frame construction
- 3 stage shower functions (Rainfall, Top and Bottom Horizontal Massage Spray, Hand Shower)
- 2 adjustable top rainfall pads and 4 adjustable horizontal spray massage jet pads with 22 nozzles on each pad
- Pressure-balance valve minimizes the chance of scalding.
- 2 Year Manufacturer Warranty w/ US Based Customer Service.
Decor Star
1
PL-033-SS Rev. A2 092017
Advertisement
Related Manuals for Decor Star PL-033-SS
Summary of Contents for Decor Star PL-033-SS
- Page 1 - 2 adjustable top rainfall pads and 4 adjustable horizontal spray massage jet pads with 22 nozzles on each pad - Pressure-balance valve minimizes the chance of scalding. - 2 Year Manufacturer Warranty w/ US Based Customer Service. Decor Star PL-033-SS Rev. A2 092017...
- Page 2 Thank you for purchasing Decor Star products. Please read the information below and keep this installation guide for future reference. If you require assistance, please contact our customer service department at 1-800-879-1197, Monday - Friday 9AM - 5PM Pacifi c Time. Or by email at support@decorstarusa.com.
- Page 3 An outlet box such as the Sioux Chief Ox Box 696-G2001MF, 696-G2303MF, or 696-2403MF is recommended to expedite the installation process of the shut off valves. (NOTE: additional parts such as brass reducer / adapters are required but not included with this product) Decor Star PL-033-SS Rev. A2 092017...
- Page 4 NOTE: This distance vary by models, always take the actual measurement from the shower panel) (This is the distance from the oor to the bottom edge of the shower panel) Decor Star PL-033-SS Rev. A2 092017...
- Page 5 Technical Data Recommended Operating Pressure: 50-80 PSI 200mm 495mm 7.87” 19.49” 1500mm 59.06” 690mm 27.17” 575mm 580mm 22.64” 22.83” 350mm 13.78” 72.5mm *All Measurements are Approximate 2.85” Decor Star PL-033-SS Rev. A2 092017...
- Page 6 02. Hand Shower Water Supply Connector 03. Locking Nut 04. Hand Shower 05. Hand Shower Cradle 06. Rubber Washer 07. Hand Shower Hose 08. Screws X 4 09. Mounting Brackets X 2 10. Wall Anchors X 4 Decor Star PL-033-SS Rev. A2 092017...
-
Page 7: Installation
27.17” 3. Using a drill with a tile bit, drill the hole slowly into the tile. Do not drill into any piping or wiring in the wall. Insert the anchors into the wall. 1” Decor Star PL-033-SS Rev. A2 092017... - Page 8 Turn on both valves and test all functions on the shower panel and check for leaks at this point. You should have good water flow to the shower panel and full temperature control from the knobs. Decor Star PL-033-SS Rev. A2 092017...
- Page 9 (NOTE: Do not seal the bottom of the panel.) 7. Connect hand shower hose to the main panel body. Attach the hand shower to the hose. (NOTE: Install the rubber washer to prevent leak.) Decor Star PL-033-SS Rev. A2 092017...
-
Page 10: Operation
6. When using spray cleaners, spray fi rst onto a soft cloth or sponge. Never spray directly onto the faucet as droplets can enter openings and gaps and cause damage. 5. After cleaning, rinse thoroughly with clean water to remove any cleaner residue. Decor Star PL-033-SS Rev. A2 092017...
