GigaVUE-HC1-PLUS
Hardware
Installation Guide
GigaVUE H Series
Product Version: 6.0
Document Version: 1.0
(See Change Notes for document updates.)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GigaVUE H Series and is the answer not in the manual?

Questions and answers

Related Manuals for Gigamon GigaVUE H Series

Summary of Contents for Gigamon GigaVUE H Series

  • Page 1 GigaVUE-HC1-PLUS Hardware Installation Guide GigaVUE H Series Product Version: 6.0 Document Version: 1.0 (See Change Notes for document updates.)

  • Page 2: Change Notes

    Gigamon Inc.. Trademark Attributions Gigamon and the Gigamon logo are trademarks of Gigamon in the United States and/or other countries. Gigamon trademarks can be found at www.gigamon.com/legal- trademarks.

  • Page 3: Table Of Contents

    Fan Status LED Base Chassis Port Status LEDs GigaVUE-HC1PModules Bypass Modules (BPS-HC1-D25A60 SX/SR, BPS-HC1-D35C60 LX/LR) Module Status LEDs Inline Network Ports Using Bypass Modules for Gigamon Resiliency for Inline Protection SMT-HC1A-R  Module PRT-HC1-Q04X08 Module Features Module LED Port Status LED SMT-HC1-S (Gen 3 GigaSMART Card) Ports &...
  • Page 4 GigaVUE-HC1-PLUS Hardware Installation Guide Upgrading PLDs GigaVUE-HC1P Installation Roadmap First Steps – Getting Unpacked, Racked, Installed and Connected Next Steps Assembling the GigaVUE-HC1P Node Unpacking the GigaVUE-HC1P Shipment Rack-Mounting the GigaVUE-HC1P Chassis Safety Precautions Rack-Mounting on GigaVUE-HC1P Four-Post Rack Mounting Installing and Removing Modules Procedure Hot Swapping Modules Module Installation Procedure...
  • Page 5 GigaVUE-HC1-PLUS Hardware Installation Guide The Basic Commands Completing the Initial GigaVUE H Series Setup Enter the Configure Command-Line Mode Advantages of SSH2 Verifying Host Keys During Connection Changing Host Keys Enabling the GigaVUE H Series Web Server Connecting to the GigaVUE H Series Node from GigaVUE-FM Configuring GigaVUE H Series Time Options Setting Time Manually Performing One-Time NTP Server Synchronization...
  • Page 6 Class B Voltage Accessibility Equipment Grounding Systems Communication Equipment Grounding Connections Maintenance Additional Sources of Information Documentation How to Download Software and Release Notes from My Gigamon Documentation Feedback Contact Technical Support Contact Sales Premium Support The Gigamon Community Glossary...

  • Page 7: About The Gigavue H Series And Ta Series

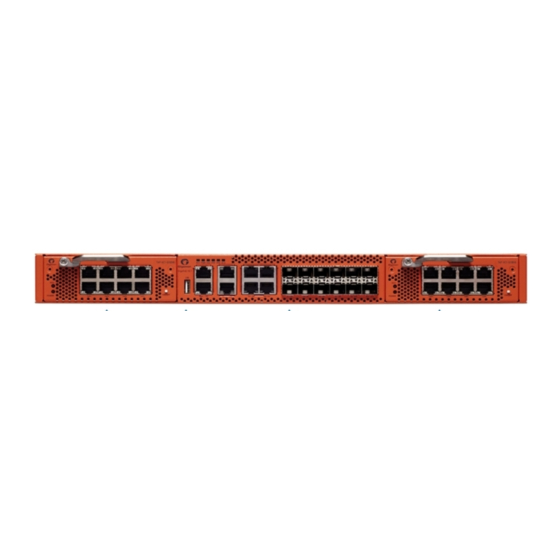

    GigaVUE-HC1-PLUS Hardware Installation Guide About the GigaVUE H Series and TA Series The Gigamon Visibility and Analytics Fabric provides 1Gb/10Gb/40Gb/100/400Gb support. The GigaVUE H Series and TA Series include the following models that run GigaVUE-OS: ■ GigaVUE-HC1 ■ GigaVUE-HC1P ■ GigaVUE-HC2 ■ GigaVUE-HC3 ■...

  • Page 8: Introducing The Gigavue-Hc1P Chassis

    GigaSMART Module. Supports Flex Inline in unprotected ■ ports with 100G/40G/10G/25G/4x10G/4x25G speed Nodes. Cluster with GigaVUE H Series and ■ GigaVUE TA Series. All ports, excluding BPS ports, of same ■ type and speed can be used to create GigaStream.
  • Page 9 GigaVUE-HC1-PLUS Hardware Installation Guide : The GigaVUE-HC1P chassis arrives from the factory with power supply modules and fans installed. The GigaVUE-HC1P modules are shipped separately. Refer to Unpacking the GigaVUE-HC1P Shipment for assembly instructions. Table 1: GigaVUE-HC1P Chassis Components Front Components on the GigaVUE-HC1P Chassis Module Bays The base chassis is in the center and numbered 1.

  • Page 10: Hardware Root Of Trust (Hrot)

    GigaVUE-HC1-PLUS Hardware Installation Guide Reset /Push Button Use the reset/ push button to reset the device. Rear Components on the GigaVUE-HC1P Chassis Power Supply Modules The GigaVUE-HC1P includes two separate power supply modules already installed at the rear of the node. Each power supply module can independently operate the GigaVUE-HC1P for 1+1 system redundancy and are hot swappable.

  • Page 11: Chassis Cooling

    GigaVUE-HC1-PLUS Hardware Installation Guide If there is a component failure in the primary flash, the GigaVUE-HC1P boots from a backup golden BIOS image in the secondary flash. An SNMP trap can be configured to be sent when the system has booted from the secondary flash. The trap may indicate that the primary flash component needs to be serviced.
  • Page 12 GigaVUE-HC1-PLUS Hardware Installation Guide HW Rev : A0 Status : on Capacity : N/A 12v voltage : 11.941 V ----------------------------------------------------------- Power Module 2 (N/A): Product Code : N/A Serial Num : N/A HW Rev : N/A Status : absent Capacity : N/A 12v voltage : 0.0 V...
  • Page 13 GigaVUE-HC1-PLUS Hardware Installation Guide oct0_vdd_sys_ddr1 voltage : 0.856V oct0_vdda_gser voltage : 1.074V oct0_vdd_ddr0 voltage : 1.199V oct0_vdd_ddr1 voltage : 1.199V oct0_vdd_core voltage : 0.947V oct0_vdd_sys voltage : 0.849V oct0_vdd_2.5v_vpp0 voltage : 2.503V oct0_vdd_2.5v_vpp1 voltage : 2.515V oct0_vddhv_gser voltage : 1.224V hotswap_control voltage : 11.918V vcc_fan_3v3 voltage...

  • Page 14: Air Flow Direction

    GigaVUE-HC1-PLUS Hardware Installation Guide Air Flow Direction The air flow direction is from the front of the GigaVUE H Series chassis to the rear. The rear- mounted fans pull air from the front to the back of the chassis. For environments with hot/cold aisles, install the chassis so the intake air at the front of the chassis is cold.

  • Page 15: Gigavue-Hc1P Base Chassis

    GigaVUE-HC1-PLUS Hardware Installation Guide GigaVUE-HC1P Base Chassis The base chassis HC1P-C04X08 is the heart of the GigaVUE-HC1P, providing both processing and switching fabric resources, as well as user access to the CLI via the Mgmt/console ports. Port Numbering The base chassis uses standard conventions for identifying network/ tool ports, both on the modules themselves, as well as in the CLI: Numbered with a leading C.

  • Page 16: Module Status Leds

    GigaVUE-HC1-PLUS Hardware Installation Guide Module Status LEDs The module status LEDs are as follows: RDY is the Ready LED. It has the following states: RED indicates the system is booting up GREEN indicates the system is ready POWER is the Power LED. It has the following state: GREEN indicates the module is receiving power System LED The system LED on the front of the chassis is as follows:...

  • Page 17: Fan Status Led

    GigaVUE-HC1-PLUS Hardware Installation Guide Off indicates that there is no link established on the port. Solid GREEN indicates that a valid link at 1000Mbps is established on the port. The ACT LED ( right side) status are as below: ■ Off indicates that there is no link is established on the port. Blinking GREEN indicates that the port is active and is transmitting or receiving packet.

  • Page 18: Bypass Modules (Bps-Hc1-D25A60 Sx/Sr, Bps-Hc1-D35C60 Lx/Lr)

    The rear GigaSMART line card with 2.0 GHz capability. The SMT-HC1A-R  Module SMT-HC1A-R ports in this module are compatible with all features that are supported by GigaVUE H Series platforms The PRT-HC1-Q04X08 line card module increases the port PRT-HC1-Q04X08 PRT-HC1-Q04X08 density and allows GigaVUE-HC1P to connect with...
  • Page 19 GigaVUE-HC1-PLUS Hardware Installation Guide Table 4: BPS-HC1-D35C60 Before installing a Bypass Module, the GigaVUE-HC1P must be running on the software version 6.00 or higher. For internal transceiver and loss summary specifications, refer to Bypass Module Specifications. The GigaVUE-HC1P offers physical and logical inline bypass. Physical bypass provides automatic failover protection in the case of a power failure.

  • Page 20: Module Status Leds

    GigaSMART module has one GigaSMART chip that supports 2 x 100G links. The ports in this module are compatible with all features that are supported by GigaVUE H Series platforms. The rear GigaSMART module is a fixed card and cannot be can be installed/removed.

  • Page 21: Prt-Hc1-Q04X08 Module

    GigaVUE-HC1-PLUS Hardware Installation Guide PRT-HC1-Q04X08 Module The PRT-HC1-Q04X08 line card consists of four (4) 100Gb/40Gb QSFP+ ports and eight (8) 1GB/10Gb/25 Gb /SFP/SFP+/SFP28 ports. This module increases the port density and allows GigaVUE-HC1P to connect with GigaVUE-TA Series and  GigaVUE HC Series nodes with higher-speed (100Gb) links.

  • Page 22: Module Led

    GigaVUE-HC1-PLUS Hardware Installation Guide For details about the supported transceiver, cable type, fan-out, inline ports, and clusters, refer to GigaVUE-OS Compatibility and Interoperability Matrix. Module LED The LEDs on the  modules indicate the current operational status. The operational states indicated by the color of Power (PWR) and Ready (RDY) LEDs are as described below. LEDs Color Description...

  • Page 23: Ports & Leds

    GigaVUE-HC1-PLUS Hardware Installation Guide Ports & LEDs Generation 3 GigaSMART Card (SMT-HC1-S) The maximum SMT-HC1-S number of modules per chassis is two.  Maximum Modules Per Chassis The LED indicates the operational status of the module as follows : Power LED (PWR) OFF means the module is not powered up. ●...

  • Page 24: Gigavue-Hc1P Installation Roadmap

    GigaVUE-HC1-PLUS Hardware Installation Guide BPS-HC1-D35C60 module ■ SMT-HC1A-R module ■ : The Legacy modules PRT-Q04X08 and SMT-HC1-S cards does not support PLD Upgrade. FPGA images are bundled with the software image and upgraded with the software image upgrade, however, the pld command provides the ability to upgrade each FPGA individually. After a PLD upgrade, the node requires a hard reboot.

  • Page 25: Next Steps

    GigaVUE-HC1-PLUS Hardware Installation Guide Figure 3 Getting Started Roadmap Next Steps Once you have performed the initial configuration of the GigaVUE-HC1P node, installing, connecting, and configuring the node, you are ready to get started mapping traffic between network and tool ports. Refer to the GigaVUE-OS CLI Reference Guide, GigaVUE Administration Guide, and online help for information.

  • Page 26: Assembling The Gigavue-Hc1P Node

    (each module is shipped in separate boxes). 4. Leave all protective filler panels in place in the chassis. DO NOT install the modules yet. Gigamon recommends rack-mounting the GigaVUE-HC1P chassis empty. Assembling the GigaVUE-HC1P Node Unpacking the GigaVUE-HC1P Shipment...

  • Page 27: Rack-Mounting The Gigavue-Hc1P Chassis

    GigaVUE-HC1-PLUS Hardware Installation Guide Rack-Mounting the GigaVUE-HC1P Chassis This section describes how to rack-mount the GigaVUE-HC1P chassis in a standard 1RU rack space using the hardware provided with the chassis. You can install the GigaVUE-HC1P chassis in two-post or four-post racks with a depth of 17 inch wide x 23.5 deep x 1.75 long. Safety Precautions Before you get started rack-mounting the GigaVUE-HC1P chassis, make sure you have read the following safety precautions:...

  • Page 28: Four-Post Rack Mounting

    GigaVUE-HC1-PLUS Hardware Installation Guide 2. Make sure you have not installed any modules in the chassis yet. Gigamon recommends rack-mounting the GigaVUE-HC1P chassis before installing modules to make it easier to handle the chassis during the installation. 3. Select a suitable location for the rack that will hold the GigaVUE-HC1P chassis. Choose a location that is clean, dust free, and well-ventilated.

  • Page 29: Installing And Removing Modules Procedure

    Removal). Install proper software versions prior to inserting any new modules. Gigamon often makes new modules available for GigaVUE-HC1P nodes. New modules are usually introduced starting with a new software release. Make sure you install the supporting software release before physically installing the new module.

  • Page 30: Module Removal And Replacement Procedure (Hot Removal)

    GigaVUE-HC1-PLUS Hardware Installation Guide Figure 6 Installing Modules 5. Install any additional modules by repeating the previous two steps. : The first time you install a module in the node, you need to configure the node to recognize it with the card command and save your changes with write memory.

  • Page 31: Fan Replacement Procedure

    GigaVUE-HC1-PLUS Hardware Installation Guide 3. Insert the new module of the different type. 4. Issue the following CLI command to make the card available for configuration: (config) # card slot <slot ID> Fan Replacement Procedure The replacement procedure would take less than 15 seconds. The fans provided are hot swappable . To remove a fan do the following : Press the black tab toward the center of the fan module handle to release the latch and then pull.

  • Page 32: Grounding The Gigavue-Hc1P Chassis

    GigaVUE-HC1-PLUS Hardware Installation Guide Command-Line Syntax – Entering Commands The Basic Commands ■ Completing the Initial GigaVUE H Series Setup ■ Grounding the GigaVUE-HC1P Chassis The GigaVUE-HC1P Chassis has the following warning as shown below. Locate the grounding holes near the left corner at the rear of the chassis (Figure 7Holes for Ground Screws shows the location on a GigaVUE-HC1P node).

  • Page 33: Removing A Power Supply Module

    GigaVUE-HC1-PLUS Hardware Installation Guide The procedure for connecting power to the GigaVUE-HC1P is similar to the other GigaVUE H Series nodes: GigaVUE H Series Chassis Number of Power Supply Type Modules GigaVUE-HC1P 1. Plug an approved C13 power cable into each of the power supply modules at the rear of the GigaVUE-HC1P chassis.

  • Page 34: Connecting -48V Dc Power Supply Modules

    GigaVUE-HC1-PLUS Hardware Installation Guide 2. Wait about 90 seconds for the node to stabilize. 3. Remove the power supply module. : Do not remove a power supply module while inputs are still connected. Connecting -48V DC Power Supply Modules The GigaVUE-HC1P is available with DC power supply modules. This section provides instructions for connecting a -48V DC power source to the DC power supply modules.

  • Page 35: Connecting Serial Console And Mgmt Ports

    Configuring Basic GigaVUE- H Series Settings This section describes how to perform the initial configuration of basic GigaVUE H Series node settings over a serial terminal connection to the console port. The system administrator must initially log in with a default admin account using a default password, and then must immediately change the password through the jump-start script.
  • Page 36 GigaVUE-HC1-PLUS Hardware Installation Guide Make the basic power and console cable connections described in Connecting Serial Console and Mgmt Ports and power on GigaVUE-HC1P. 2. Start a terminal application on the PC. Common terminal applications include TeraTerm, PuTTY, and Hyperterminal. 3.

  • Page 37: Run The Jump-Start Script

    Initial User Account Configuration. Run the Jump-Start Script Gigamon provides GigaVUE H Series nodes with a jump-start script that walks you through the process of configuring basic settings. Run this script as follows: Switch to Configure mode. The GigaVUE H Series provides three command entry modes, each with increasingly powerful rights –...
  • Page 38 Mgmt and Cluster Management port, keep in mind that NTP is also used over the eth0 Mgmt port on the GigaVUE H Series H Series node. In a case like this, you can only use one or the other.

  • Page 39: Configure Modules And Enable Ports

    GigaVUE-HC1-PLUS Hardware Installation Guide Box ID for the Node Supply a numerical box ID for the node. This box ID is used to identify network/tool ports in the node – the format is box ID/ slot ID/port ID. You will be prompted for a box ID only if clustering was not enabled in the previous step.
  • Page 40 GigaVUE-HC1-PLUS Hardware Installation Guide The system prompt changes from [hostname] # to [hostname] (config) #. 3. Reset the terminal settings to match the current window with the following command: (Config) # terminal resize 4. Use the following command to check module status: (Config) # show cards 5.

  • Page 41: Command-Line Basics

    GigaVUE-HC1-PLUS Hardware Installation Guide 9. Use the port command with the admin argument to enable ports on modules as well as ports on the base chassis. For example, the following command enables all ports on the 10Gb ports on the base chassis: (config) # port 1/1/x1..x8 params admin enable 10.
  • Page 42 GigaVUE-HC1-PLUS Hardware Installation Guide Figure 12 GigaVUE-OS Command-Line Modes Configuring Basic GigaVUE- H  Series Settings Command-Line Modes...

  • Page 43: Entering Commands In The Cli

    GigaVUE-HC1-PLUS Hardware Installation Guide : If you are working simultaneously with multiple GigaVUE H Series nodes, you may want to assign each a separate hostname so its easy to identify separate terminal sessions from the system prompt. Admin users can do this in Configure mode with the hostname <name>...

  • Page 44: Command-Line Syntax - Entering Commands

    Banner). Configure Mode Syntax Users of GigaVUE H Series nodes may be accustomed to entering the word config before many commands – config map, config port-filter, and so on. When using the GigaVUE-OS, the “config” part of the command is implied whenever you are working in Configure mode.

  • Page 45: Paging Through Cli Output

    GigaVUE-HC1-PLUS Hardware Installation Guide So, instead of entering config gigastream to set up a GigaStream consisting of multiple ports, you just enter gigastream followed by the necessary arguments. The config part is implied because you are already working in the Configure mode. For example: (config) # gigastream alias mystream port-list 1/1/x1..x4 Paging through CLI Output By default, the CLI returns output exceeding the configured terminal length in pages.

  • Page 46: Command-Line Syntax - Entering Commands

    GigaVUE-HC1-PLUS Hardware Installation Guide Figure 13 Viewing Paging Options Command-Line Syntax – Entering Commands Command-Line Syntax – Entering Commands...

  • Page 47: The Basic Commands

    GigaVUE-HC1-PLUS Hardware Installation Guide The Basic Commands The following table lists each of the top level commands for the GigaVUE-OS in Configure mode. As described in Entering Commands in the CLI, the commands available in Configure mode are a superset of those available in Standard and Enable modes. Most commands have multiple supported arguments.
  • Page 48 Configures authentication, authorization, and accounting setting apps Enables access to Gigamon Applications, such as Application Session Filtering (ASF), GTP backup, GTP whitelisting, inline SSL decryption, keystore, NetFlow, SIP whitelisting, and Passive SSL decryption. GigaSMART applications are not supported on GigaVUE TA Series.
  • Page 49 Activates features using license keys. Licensing is used for GigaSMART, Port, or Advanced Features License. logging Configures event logging. Configures maps and map rules to manage GigaVUE H Series traffic distribution. map-group Configures map groups for GTP forward listing and GTP flow sampling. map-passall Creates a pass-all map to send all traffic on a network port to a tool port irrespective of the other packet distribution in place on the port.
  • Page 50 GigaVUE-HC1-PLUS Hardware Installation Guide Command Description redundancy-profile Configures an inline redundancy profile on GigaVUE HC Series nodes. reload (reboot) Reboots or shuts down the node. rename Renames the map alias. reset Resets specified portions of the node configuration to their factory states. serial Sets options for the serial console port.

  • Page 51: Completing The Initial Gigavueh Series Setup

    Enter the Configure Command-Line Mode. ■ Configure SSH access to the node. Refer to SSH. ■ Enable the GigaVUE H Series Web server for Web-based GUI access. Refer to Enabling ■ the GigaVUE H Series H Series Web Server. Configure some basic user accounts. Refer to Initial User Account Configuration.

  • Page 52: Ssh

    Host keys uniquely identify a server, helping guarantee that the server you are connecting to is the server you think it is. GigaVUE H Series includes default RSA v1/v2 and DSAv2-encrypted public host keys (SSH2 supports both RSA and DSA encryption algorithms). The first time you connect to GigaVUE H Series with an SSH2 client, the client will warn you that the host keys are not in your local cache and show you the actual host key presented by the GigaVUE-HC1P.

  • Page 53: Verifying Host Keys During Connection

    Enabling the GigaVUE H Series Web Server GigaVUE-FM is Gigamon’s Web-based management interface for the GigaVUE H Series. Use GigaVUE-FM for many node configuration, management, and operations tasks. To use GigaVUE-FM with a GigaVUE H Series node, you must enable its Web server with the web enable command.

  • Page 54: Connecting To The Gigavue H Series Node From Gigavue-Fm

    GigaVUE-FM using either HTTP on port 80 or HTTPS on port 443. Use the following procedure to connect to a GigaVUE H Series node using GigaVUE-FM. : You can configure whether the GigaVUE H Series H Series node redirects all incoming HTTP connections to the HTTPS port with the web http redirect command.
  • Page 55 Windows Internet Explorer Apple Safari Google Chrome : Gigamon provides the GigaVUE H Series with self-signed certificates for use with GigaVUE-FM; you can also create and install a third-party certificate on these nodes. Add an exception in Firefox as follows: a.

  • Page 56: Configuring Gigavue H Series Time Options

    GigaVUE-HC1-PLUS Hardware Installation Guide Configuring GigaVUE H Series Time Options The GigaVUE H Series node includes a variety of features for setting the time, including: Method CLI Command For more information: System Clock clock set hh:mm:ss Setting Time Manually yyyy/mm/dd One-Time NTP ntpdate <ntpserver Performing One-Time NTP Server Synchronization Synchronization...

  • Page 57: Using Ntp Time Server For Clock Synchronization

    GigaVUE-HC1-PLUS Hardware Installation Guide Using NTP Time Server for Clock Synchronization The GigaVUE H Series node can optionally use one or more NTP servers for its time setting. Use the following procedure to add an NTP server to the GigaVUE H Series node’s list and enable the use of NTP.

  • Page 58: Configuring Automatic Email Notifications

    The GigaVUE H Series H Series node provides powerful email notification capabilities, automatically sending emails to specified addresses when any of a wide variety of events take place on the node. Gigamon strongly recommends that you configure this feature so you have immediate visibility of events affecting node health.

  • Page 59: Using A Custom Banner

    There are many other options for fine-tuning automatic email settings, including how to handle “dead letters” (emails that did not reach their recipient), how the email address of the GigaVUE H Series H Series node should appear, the port for the email server, the reply-to address, and so on. Refer to the GigaVUE-OS CLI Reference Guide for details.

  • Page 60: Saving Changes

    GigaVUE-HC1-PLUS Hardware Installation Guide The next time you log in or out of the GigaVUE H Series H Series node, you will see the customizable banner. Saving Changes It is a good idea to use the write memory command to save changes as you make them.

  • Page 61: Transceiver-Rules And Notes

    “GigaVUE-OS Compatibility and Interoperability Matrix”. Transceiver Installation Instructions Gigamon transceivers are keyed and can only be installed in one direction. Transceivers are hot-swappable – they can be installed or removed with the power on or off. Use the following procedures to install and remove SFPs from GigaVUE H Series modules.

  • Page 62: Removing Transceivers

    GigaVUE-HC1-PLUS Hardware Installation Guide Removing Transceivers Disconnect the cable (if any) from the transceiver. 2. If you are removing a fiber-optic transceiver, install dust caps in the transceiver to protect the optical interfaces. 3. Open the latch on the transceiver and gently remove it from the slot. 4.

  • Page 63: Connecting Gigavue-Hc1P Module Ports

    GigaVUE-HC1-PLUS Hardware Installation Guide Connecting GigaVUE-HC1P Module Ports Connecting network and tool ports on GigaVUE-HC1P base chassis ports and modules is generally as simple as connecting a cable between the source/destination device and the GigaVUE-HC1P port. You just need to make sure that the modules and ports on the GigaVUE-HC1P node are enabled and their parameters are configured correctly.
  • Page 64 GigaVUE-HC1-PLUS Hardware Installation Guide 5. If the Config Status does not show Configured for all modules after two minutes, take the action corresponding to your show cards output, as follows: show cards Corrective Action Output: Config Status does (config) # chassis box-id <integer>(config) # card all not show Configured for any cards (including...

  • Page 65: Setting Port Parameters Manually

    Specifies the port's duplex configuration. Only full duplex is supported. Starting in software version 5.2, half duplex support is removed from all GigaVUE H Series nodes. If half duplex was configured in a previous software version, it will remain intact following the upgrade to 5.2 or higher release.

  • Page 66: Forcelinkup And Enabling/Disabling Ports

    GigaVUE-HC1-PLUS Hardware Installation Guide Forcelinkup and Enabling/Disabling Ports The GigaVUE-HC1P node includes both forcelinkup and admin arguments for the port params command. The forcelinkup argument forces the link state on an optical tool port connected to a legacy tool that does not transmit the light required to bring the link up. The following table summarizes how traffic flows for different combinations of port params admin and port params forcelinkup applied to an optical tool port.

  • Page 67: Battery Caution

    GigaVUE-HC1-PLUS Hardware Installation Guide Node Height Width Depth Weight 19.0in 20.92 in (53.18cm) (48.35cm) BPS-HC1-D25A60 BypassModule 1.6in(4.10cm) 4.65in 10.13in(24.98cm) 1.5lb(0.68kg) (11.80cm) BPS-HC1-D35C60 Bypass Module 1.6in(4.10cm) 4.65in 10.13in(24.98cm) 2.2lb (11.80cm) (0.99kg) SMT-HC1-S 1.6in 4.65in 110.13in (24.98cm) 2.54lb (11.80cm) (1.15kg) PRT-HC1-Q04x08 1.6in(4.10cm) 4.65in 10.13in(24.98cm) 1.4lb...

  • Page 68: Class A Information Technology Equipment (Ite)

    GigaVUE-HC1-PLUS Hardware Installation Guide BSMI Taiwan ■ KCC Korea ■ EAC Russia ■ Class A Information Technology Equipment (ITE) Translation of Statement for Class A VCCI-certified Equipment: This is a Class A product based on the standard of the Voluntary Control Council for Interference by Information Technology Equipment (VCCI).

  • Page 69: Environmental

    GigaVUE-HC1-PLUS Hardware Installation Guide EN61000-4-6 ■ EN61000-4-8 ■ EN61000-4-11 ■ Environmental GigaVUE-HC1P is compliant with the following environmental regulations: EU RoHS 6, EU directive 2011/65/EU ■ NEBS Level 3. Refer to NEBS Level 3 Compliance. ■ Security Common Criteria (Certification pending). Refer to “Common Criteria” in the GigaVUE- ■...

  • Page 70: Standards And Protocols

    783 TFTP, RFC 791 IP, RFC 793, TCP, RFC 826 ARP, RFC 768 UDP, RFC 792 ICMP, SNMP v1/v2c, RFC 2131 DHCP client, RFC 1492 TACACS+, and support for IPv4 and IPv6. Warranty Gigamon offers a range of premium support and extended services. For details regarding warranty, visit: https://www.gigamon.com/support-and-services/warranty...

  • Page 71: Nebs Level 3 Compliance

    GigaVUE-HC1-PLUS Hardware Installation Guide The following table lists the pinouts for this connection. Console Port from RJ45-to-RJ45 Rollover RJ45-to-DB-9 Console GigaVUE-HC1P RJ45 Cable Terminal Adapter Device on PC Jack Signal RJ45 Pin RJ45 Pin DB-9 Pin Signal NEBS Level 3 Compliance This appendix provides installation instructions for GigaVUE-HC1P Network Equipment- Building System (NEBS) Level 3 compliance.

  • Page 72: Intrabuilding Or Intra-Connection

    GigaVUE-HC1-PLUS Hardware Installation Guide Intrabuilding or Intra-connection WARNING: The intra-building ports: BNC Coaxial PPS ■ RJ45: PTP-1588, Management port, Console port, Stack port ■ RJ45: 10/100/1000 ports ■ 1G/10G/25G SFP,SFP+,SFP28:X1-X8 ■ HC1P-C04X08 ■ 100G : C1-C4 25Gb/10Gb/1Gb : X1-X8 BPS-HC1-D25A60 ■...

  • Page 73: Connections

    GigaVUE-HC1-PLUS Hardware Installation Guide Connections a. The GigaVUE-HC1P shall be grounded via a copper ground conductor #6 AWG for CPE installation. b. All bare grounding connection points to the GigaVUE-HC1P shall be cleaned and coated with an antioxidant solution before connections are made. c.

  • Page 74: Additional Sources Of Information

    ■ Documentation This table lists all the guides provided for GigaVUE H Series software and hardware. The first row provides an All-Documents Zip file that contains all the guides in the set for the release. : In the online documentation, view...
  • Page 75 GigaVUE-HC1-PLUS Hardware Installation Guide GigaVUE H Series 6.0 Hardware and Software Guides GigaVUE-TA200 Hardware Installation Guide GigaVUE-TA400 Hardware Installation Guide GigaVUE-TA10 Hardware Installation Guide GigaVUE-TA40 Hardware Installation Guide GigaVUE-TA100 Hardware Installation Guide GigaVUE-TA100-CXP Hardware Installation Guide *GigaVUE-OS Installation Guide for DELL S4112F-ON...

  • Page 76: How To Download Software And Release Notes From My Gigamon

    GigaVUE-OS CLI (Command Line Interface) commands used to configure and operate GigaVUE H Series and TA Series devices GigaVUE-OS Cabling Quick Reference Guide guidelines for the different types of cables used to connect Gigamon devices GigaVUE-OS Compatibility and Interoperability Matrix compatibility information and interoperability requirements for Gigamon devices GigaVUE-FM REST API Reference in GigaVUE-FM User's Guide...

  • Page 77: Documentation Feedback

    Product: "GigaVUE-FM" and Release: "5.6," enter "pdf" in the search box, and then click GO to view all PDF documentation for GigaVUE-FM 5.6.xx. : My Gigamon is available to registered customers only. Newer documentation PDFs, with the exception of release notes, are all available through the publicly available online documentation.

  • Page 78: Contact Technical Support

    For information about Technical Support: Go to Settings > Support > Contact Support in GigaVUE-FM. You can also refer to https://www.gigamon.com/support-and-services/contact-support Technical Support hours and contact information. Email Technical Support at support@gigamon.com. Contact Technical Support How to Download Software and Release Notes from My Gigamon...

  • Page 79: Contact Sales

    ■ Download the latest product updates and documentation (Customers only) ■ The Gigamon Community is a great way to get answers fast, learn from experts and collaborate directly with other members around your areas of interest. Register today at community.gigamon.com...
  • Page 80 GigaVUE-HC1-PLUS Hardware Installation Guide Questions? Contact our Community team at community@gigamon.com. The Gigamon Community How to Download Software and Release Notes from My Gigamon...

  • Page 81: Glossary

    GigaVUE-HC1-PLUS Hardware Installation Guide Glossary decrypt list need to decrypt (formerly blacklist) decryptlist need to decrypt - CLI Command (formerly blacklist) drop list selective forwarding - drop (formerly blacklist) forward list selective forwarding - forward (formerly whitelist) leader leader in clustering node relationship (formerly master) member node follower in clustering node relationship (formerly slave or non-master) no-decrypt list...
  • Page 82 GigaVUE-HC1-PLUS Hardware Installation Guide nodecryptlist no need to decrypt- CLI Command (formerly whitelist) primary source root timing; transmits sync info to clocks in its network segment (formerly grandmaster) receiver follower in a bidirectional clock relationship (formerly slave) source leader in a bidirectional clock relationship (formerly master) Glossary...
