Mischa Coffee Table
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
dowel
screw
x8
x20
G
H
slide rail
slide rail
x2
x2
M
N
long
handle
screw x6
bolt x4
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
C
D
bolt
small
locking
screw x20
x14
nut x14
I
J
slide rail
small bolt
long bolt
x2
x16
O
P
handle
felt
leg bracket
x2
pad x4

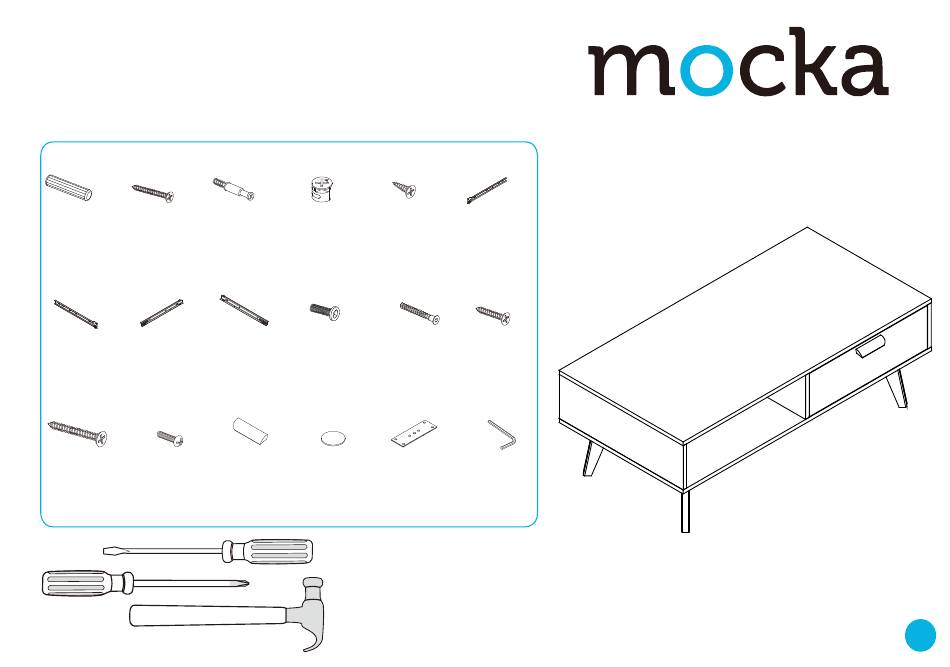

Hardware Supplied
Phillips & Flathead screwdrivers
and hammer required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
E
F
slide rail
x2
K
L
screw
x8
x4
Q
R
Allen key
x4
x1
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mocka Mischa Coffee Table
Summary of Contents for Mocka Mischa Coffee Table
- Page 1 Hardware Supplied Phillips & Flathead screwdrivers and hammer required For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 2 Attach 2x slide rails (G) to panels [3] and secure with 6x small screws (E). Attach 2x slide rails (F) to panel [4] with 6x small screws (E). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 3 Assembly Instructions Attach panels [3] and [4] to panels [5] with 4x dowels (A) as shown. Attach panels [3] and [4] to panels [5] with 4x dowels (A) as shown. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 4 Insert 6x bolts (C) into panels [1]. Tighten with a screwdriver. Attach panels [3] and [4] to panel [1] with 6x locking nuts (D) and 6x dowels (A). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 5 (K). Tighten with a screwdriver and an Allen key (R). Attach each leg [6] to panel [2] using 4x small bolts (J) as shown. Tighten with the Allen key (R). Attach 4x felt pads (P) to the ends of the legs. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 6 Insert 8x bolts (C) into panels [7]. Tighten with a screwdriver. Attach panels [8] and [9] to panels [7] and secure with 8x locking nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 7 Slide panels [10] down along the grooves between the panels [8] Attach panels [8], [9] and [11] as shown using 8x screws (B). Tighten with a screwdriver. and [9] as shown. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 8 Attach 2x handles (O) to panels [7] and secure with 4x handle bolts (N). as shown. Secure with 8x small screws (E) and tighten with a screwdriver. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 9 Mischa Coffee Table Assembly Instructions Insert the assembled drawers into the corresponding compartments You’re done, enjoy! as shown. Ensure the drawers slide easily along the rails. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
