Mischa Bedside Table
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
dowel
screw
bolt
x4
x12
x12
I
H
J
slide rail
slide rail
small bolt
x1
x1
x16
O
P
handle
felt
leg bracket
x1
pad x4
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
D
E
small
slide rail
locking
screw x10
nut x12
K
L
wedge
screw
long screw
x4
x4
Q
R
S
Allen key
long bolt
x4
x1
x4

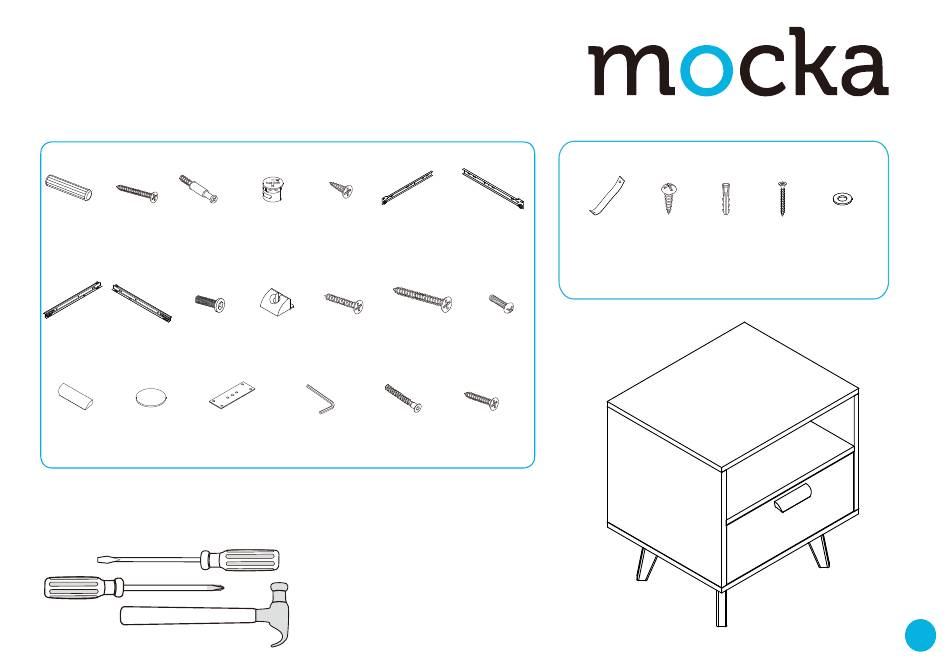

Hardware Supplied
Phillips & Flathead screwdrivers
and hammer required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
F
G
slide rail
safety
x1
x1
M
N
handle
x4
bolt x2
T
screw
x8
V
W
X
wall
screw
anchor
screw
strap
x1
x1
x1
Wall Strap
Y
Z
wall
washer
x2
x1
1
