Mischa Entertainment Unit
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
dowel
screw
bolt
x4
x20
x16
I
J
K
slide rail
small bolt
wedge
x1
x16
x8
Q
R
S
leg
Allen key
long bolt
bracket
x1
x4
x4
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
D
E
F
small
slide rail
locking
screw x10
x1
nut x16
L
M
N
long
screw
handle
screw x8
x8
bolt x6
T
U
A1
screw
timber
hinge
x8
screw x24
x4

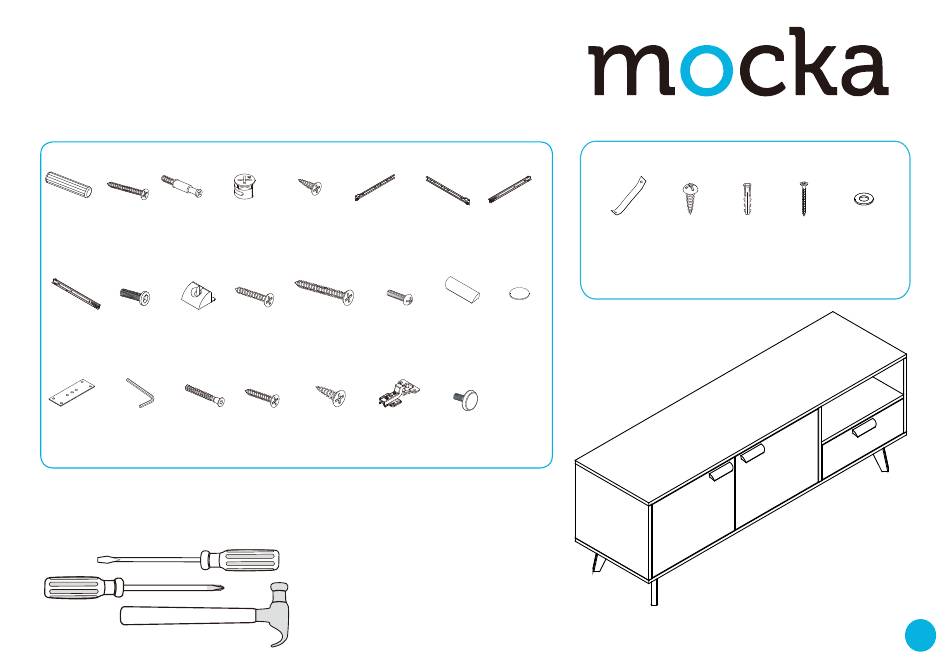

Hardware Supplied
Phillips & Flathead screwdrivers
and hammer required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
G
H
slide rail
slide rail
x1
x1
O
P
felt
handle
pad x4
x3
A2
height
adjuster
x2
V
W
X
wall
safety
screw
anchor
strap
x1
x1
x1
Wall Strap
Y
Z
wall
washer
screw
x2
x1
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Mischa and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mocka Mischa

Summary of Contents for Mocka Mischa

  • Page 1 Phillips & Flathead screwdrivers and hammer required For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 2 Attach 1x slide rail (G) to panel [4] and secure with 3x small screws (E). and 4x dowels (A). Tighten with a screwdriver. Tighten with a screwdriver. Insert 4x bolts (C) into panel [4] and [6]. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 3 Insert 8x bolts (C) into panel [1]. Tighten with a screwdriver. Attach panels [3], [4], [5] and [6] to panel [1] and secure with 8x locking nuts (D) and 8x dowels (A). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 4 Attach panel [2] to the rest of the unit using 8x dowels (A). form the back of the unit. Secure with 8x long screws (M) and tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 5 (R). Attach 4x felt pads (P) to the ends of the legs.Attach 2x support leg [11] to panel [2] as shown. screw the 2x height adjusters (A2) onto the support leg [11]. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 6 Attach door hinges on panels [3] and [6] to the unit using 16x screws Insert 4x bolts (C) into panels [14]. Tighten with a screwdriver. (U). Tighten with a screwdriver. Ensure the doors open and close easily. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 7 Attach panels [15] and [16] to panel [14] and secure Slide panel [17] along the grooves between the panels [15] and [16] to form the base of the drawer. with 4x locking nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 8 Attach slide rails (I) and slide rails (H) to the underside of the side panels Tighten with a screwdriver. as shown. Secure with 4x screws (E) and tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 9 Attach 1x handles (O) to panels [14] and secure with 2x handle bolts (N). Insert the assembled drawers into the corresponding compartments Tighten with a screwdriver. as shown. Ensure the drawers slide easily along the rails. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 10 1x washer (Z), 1x wall anchor (X) and 1x screw (Y). Ensure unit is 1x screw (W). Tighten with a screwdriver. balanced and steady before use. You’re done, enjoy! mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
