Page 1
BTL-1100 BTL-1200 U S E R ’ S M A N U A L V 1 0 0 z 1 T N 2 4 / 0 2 / 2 0 0 3 E N...
Page 2
M e d i c a l T e c h n o l o g i e s s . r . o . B T L - 1 2 0 0 CONTENTS USER‘S MANUAL ...............................3 Outward appearance of the BTL-1100 and BTL-1200 ..................3 Configurations of the BTL-1100 and BTL-1200 couches ..................3 The BTL-1100 couch configuration with folding frame..................3 Control units ..............................4 Cleaning and maintenance ..........................4...
Page 3

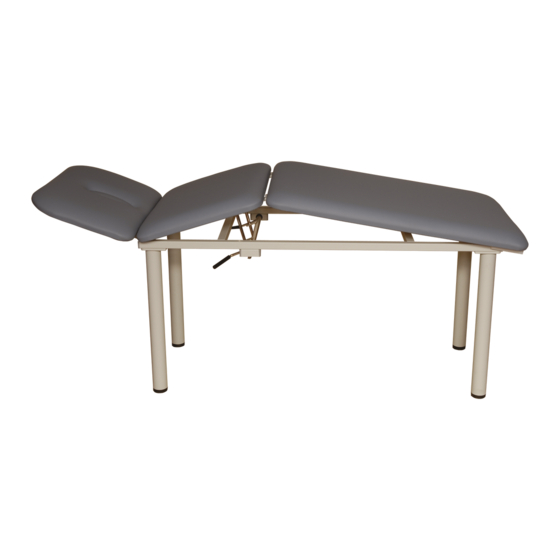

T H E B T L - 1 1 0 0 C O U C H C O N F I G U R A T I O N W I T H F O L D I N G F R A M E The BTL-1100 couch with folding frame is the same as the above-given model. The only difference is that during the transport, the spacing bar between couch legs is removed, and thus the legs are folded towards the frame.
Page 4
The product is warranted against defects in materials and workmanship for a period of 24 months from the date of shipment. In case of any malfunction, contact your BTL distributor. The manufacturer will at its option repair or replace components which prove to be defective during the warranty period provided that the product is used in accordance with the manual.
Page 5
Extended width: 80 cm Standard height:70 cm Height: 60 cm Height: 80 cm Folding frame (only for the BTL-1100) Mid-section elevation: 0 – 22 cm (with the 3-section configuration) Head section adjustment: +45°/ -30° Weight: 25 – 35 kg (according to the model) Load capacity: 170 kg x –...
Page 6
Medical Technologies s.r.o. Heleny Malirove 11 169 00 Prague 6 Czech Republic tel/fax: +420 233 355 584 Representative: BTL Industries Limited Suite 401 Albany House 324-326 Regents Street London WIB 3BL United Kingdom tel: +4420 8371 2267 fax: +4420 8371 2270 email: btl@cobus.net...
