BTL -09 User Manual & User's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

user manual
&
user's guide
v3.20z8JD10/03/2005EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BTL-09 and is the answer not in the manual?

Questions and answers

Related Manuals for BTL BTL-09

Summary of Contents for BTL BTL-09

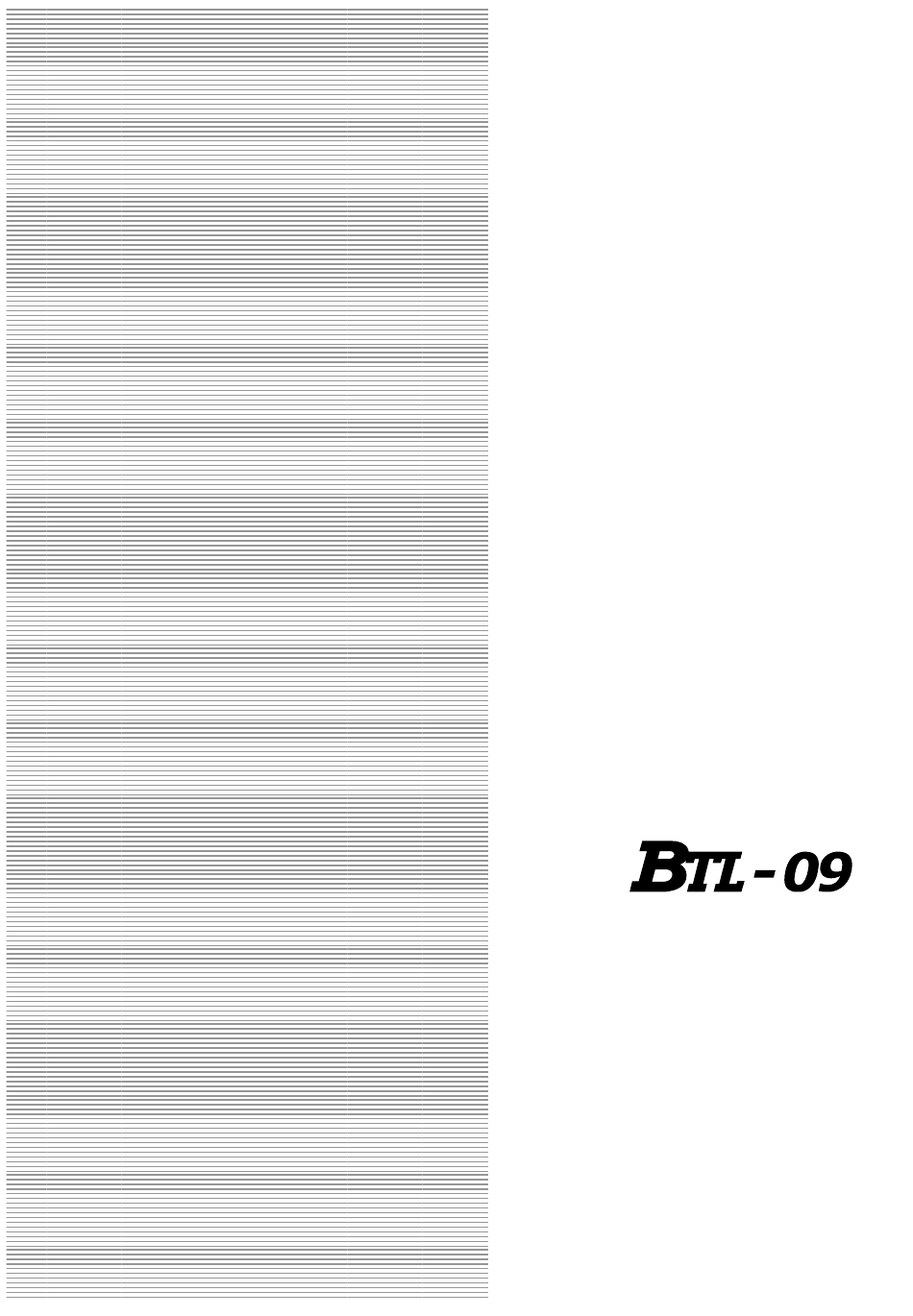

  • Page 1 user manual & user's guide v3.20z8JD10/03/2005EN...

  • Page 2: Table Of Contents

    BTL - 09 user manual & user's guide Content: USER MANUAL ............................... 3 Controls and displays............................... 3 Outward appearance..............................3 Principles of safety operation ........................... 3 Initial switching-on..............................4 Connecting applicators............................. 4 Description ................................4 Setting channels ..............................4 Program setting................................ 5 Frequency setting ..............................

  • Page 3: User Manual

    OUTWARD APPEARANCE BTL-09 is built in a lacquered metal box. Signals, displays, controls and connectors for applicators or adapter plug are located on the front panel. The mains connector, power switch, fuses and cooling ventilator are located on rear panel.

  • Page 4: Initial Switching-On

    ⇒ Do not use the instrument if the cooling fan does not work properly! When BTL-09 is switched on, the channel A is set: led diode A (6) is on. Program No. 9 is set – "Program / Frequency" display (4) shows "P-09". Therapy time for both channels is set at 30 min. -- Time display /8/ shows "30". Intensity display (12) shows "..."...

  • Page 5: Program Setting

    1 Hz. BTL-09 enables you to generate pulses with fixed and varying frequency. Average value of generated frequency is seen on "Program/Frequency" display (4). If you wish to generate pulses of stable frequency, continue directly to set therapy time.

  • Page 6: To Start And Interrupt Therapy

    BTL - 09 user manual & user's guide The table below shows the transfer of set intensity of magnetic induction (in %) to mT value for an individual applicator: Intensity set Big solenoid Small solenoid Ring Single cover Double cover...

  • Page 7: Trouble Shooting

    BTL - 09 user manual & user's guide TROUBLE SHOOTING This section will try to anticipate potential problems that you may encounter in the day-to-day use of the product. Included is information which should help you solve these problems. If after trying suggested solutions, the product still does not function properly, please contact your service center.

  • Page 8: Warranty

    BTL - 09 user manual & user's guide ERROR A or ERROR B red indicators Error indication: 0 / 1 ON/OFF switch marking: 2 spare fuses Standard accessories: Magnetic applicators (not incl. in price) user manual Useful addresses The product is manufactured in accordance with the EU Medical Devices Directive by : BTL Industries Ltd.

  • Page 9: Applicators

    BTL - 09 user manual & user's guide APPLICATORS INSTRUCTIONS FOR USE • Connect / disconnect applicators only when the unit is switched off. • Avoid direct contact between patient and applicator. • Do not strain mechanically movable inlet cable and connector.

  • Page 10: Big Solenoid (1)

    BTL - 09 user manual & user's guide BIG SOLENOID (1) Dimensions: 500x330 mm diam. Weight: 6.1 kg Inductance: 48 mH Resistance: 7.8 Ω Max. voltage: 80 V Max. current: Max. power: 100 VA Max. temperature: 45 C Insulation: class II...

  • Page 11: Small Solenoid (2)

    BTL - 09 user manual & user's guide SMALL SOLENOID (2) Dimensions: 300x330 mm diam. Weight: 5.2 kg Inductance: 23 mH Resistance: 5.3 Ω Max. voltage: 80 V Max. current: Max. power: 85 VA Max. temperature: 45 C Insulation: class II...

  • Page 12: Ring (3)

    BTL - 09 user manual & user's guide RING (3) Dimensions: 300x60 mm diam. Weight: 2.7 kg Inductance: 36 mH Resistance: 4.2 Ω Max. voltage: 80 V Max. current: Max. power: 33 VA Max. temperature: 45 C Insulation: class II...

  • Page 13: Disc (4)

    BTL - 09 user manual & user's guide DISC (4) Dimensions: 240x240 mm Weight: 2.1 kg Inductance: 29 mH Resistance: 3.2 Ω Max. voltage: 80 V Max. current: Max. power: 22 VA Max. temperature: 45 C Insulation: class II Environment: standard The applicator is constructed as self-supporting flat coil built-in to both-side upholstered pillow.

  • Page 14: Double Cover (5)

    BTL - 09 user manual & user's guide DOUBLE COVER (5) Dimensions: 240x170x20 mm Weight: 3.7 kg Inductance: 33 mH Resistance: 4.6 Ω Max. voltage: 80 V Max. current: Max. power: 30 VA Max. temperature: 45 C Insulation: class II...
  • Page 15 BTL - 09 user manual & user's guide max. intensity if adapter plug is used max. intensity Fig. 1c: Double cover Fig. 2: Double cover page 15 of 42...

  • Page 16: Triple Cover (6)

    BTL - 09 user manual & user's guide TRIPLE COVER (6) Dimensions: 590x280x20 mm Weight: 5.5 kg Inductance: 51 mH Resistance: 6.6 Ω Max. voltage: 80 V Max. current: Max. power: 45 VA Max. temperature: 45 C Insulation: class II...

  • Page 17: User's Guide

    This guide does not provide the reader with legal qualification to diagnose patients or to use a pulse magnetic field instrument. BTL-09 was developed as the result of Company's own experience as well as international research on the effects of a pulse magnetic field on the human organism.

  • Page 18: Orthopedics

    BTL - 09 user manual & user's guide • epicondylitis • myopathy • post-injury joint and muscle pain • edema following injury • post-sport injuries • LS and LIS syndrome • spondylosis and spondylartis • paresis of peripheral nerves •...

  • Page 19: Applicators

    Diprophos rather than Kenalog, the resultant beneficial effect is much longer. Methodology BTL-09 offers a wide range of possibilities for the choice of an optimal therapeutic procedure, whether it be the wide selection of pre-programmed settings or the ability to directly set the pulse magnetic field frequency. The flexibility of BTL-09 is very much appreciated by pulse magnetotherapy specialists.
  • Page 20 BTL - 09 user manual & user's guide completed -- following 2 to 3 weeks of a daily dose of 30 minutes that is not to be shortened -- all complications will not necessarily disappear immediately. Instead, symptoms may fade away gradually after therapy has been completed.

  • Page 21: Basic Indicators And Comments On Therapy

    BTL - 09 user manual & user's guide BASIC INDICATORS AND COMMENTS ON THERAPY List of giagnoses Alloplastica Alopecie Arthritis rheumatica Arthrodesis Arthrosis Arthrosis chronica Atherosclerosis Coxalgia Coxarthrosis Decubitus Degeneratio spinalis Dermatitis atopica Dermatosis pruritus Distensio Distorsio Eczema atopicum Enuresis...

  • Page 22: Stomatology

    BTL - 09 user manual & user's guide STOMATOLOGY Appicitidis Dolor postextractionem Parodontosis Periostitis Alloplastica Program: 29. Duration: 60 minutes a day for a period of 2-3 months, possibly repeatedly, larger doses. Application: max. 4mT for UL and LL small solenoid, max. 7mT for other applicators.
  • Page 23 BTL - 09 user manual & user's guide Atherosclerosis (vein diseases, including diabetic angiopathy) Program: 19. Duration: Daily, 10-50 therapy sessions of 10-30 minutes long. Application: 3-10mT, small solenoid. Place applicator on localized area. Coxalgia (without an X-ray finding) Program: 15 or 9.
  • Page 24 BTL - 09 user manual & user's guide 15. Distorsio Program: 17. Duration: 30 minutes. Application: 12mT for each applicator other than solenoids; 8mT for solenoids. Apply to affected area. Comment: First, apply ice immediately follow by program 8 or 44. With this treatment, edema often will not occur. If it is a knee joint with obvious exudate but a blood haemorrhage is not suspected, drain under sterile condition, and continue with a tightly wrapped icy application.
  • Page 25 BTL - 09 user manual & user's guide 24. Metatarsalgia Program: 14. Duration: 30 minutes a day. Application: 7mT, with small solenoid. Use big solenoid if both hands are affected. 25. Migraena (if EEG is not pathological) Program: 29. Duration: 15 therapy sessions of 30 minutes per session.
  • Page 26 BTL - 09 user manual & user's guide 33. Osteoplastica (implantation of a bone graft - for speeding up the healing) Program: 29. Duration: 20 - 60 minutes a day for a period of 2-3 months, possibly repeatedly, larger doses.
  • Page 27 BTL - 09 user manual & user's guide 41. Pseudoarthrosis Program: 17. Duration: Lengthy, up to several hours per day. For example, 3 therapy sessions per day max. for 90 minutes per session. Application: 3-5mT. Alternate both programs. Comment: It is always necessary to remove sequesters and evacuate hollows with a pus content. A plaster or metal implants do not affect therapy.
  • Page 28 BTL - 09 user manual & user's guide 49. Sy. cervicobrachialis Program: 15 or 29. Duration: 14-21 times, 30 minutes a day. Application: 15mT. Apply to the C part of the spine and both shoulders. Comment: In all cases, it is necessary to see an X-ray. It is suitable to give myo-relaxants, gentle manual massage of the spinal C muscles and the upper rim of mm.

  • Page 29: Use Of Applicators

    BTL - 09 user manual & user's guide STOMATOLOGY 57. Appicitidis Program: 1. Duration: 10-21 daily therapy sessions for 30 minutes per session. Application: max. 15mT for 15 minutes or max. 12mT for 30 minutes for disc, max. 15mT for 15 minutes or max. 14mT for 30 minutes for ring.

  • Page 30: List Of Programs

    BTL - 09 user manual & user's guide LIST OF PROGRAMS Program 1: pulses 20ms with 20ms break (frequency 25Hz) Program 2: 20x pulse 10ms with 10ms break, break 100ms Program 3: 10x pulse 20ms with 20ms break, 150ms break...
  • Page 31 BTL - 09 user manual & user's guide Program 6: 20ms pulses with 30ms break (frequency 20Hz) Program 7: 20x 5ms pulse with 5ms break, 100ms break, 40ms pulse with 100ms break Program 8: 30ms pulse with 60ms break (frequency 11.1Hz)
  • Page 32 BTL - 09 user manual & user's guide Program 12: 10x 80ms pulse with 200ms break (frequency 3.6Hz), 10x 5ms pulse with 212ms break (frequency 4.6Hz), 10x 60ms pulse with 81ms break (frequency 7.1Hz), 10x 10ms pulse with 60ms break (frequency 14.3Hz) Program 13: 2x 142ms pulse with 142ms break (frequency 3.5Hz), 4x 71ms pulse with 71ms break (frequency 7Hz),...
  • Page 33 BTL - 09 user manual & user's guide Program 17: 10x 20ms pulse with 20ms break (frequency 25Hz), 217ms, 12x 5ms pulse with 212ms break (frequency 4.6Hz) Program 18: 3x 35ms pulse with 115, 150 break, 15x 5ms pulse with 145ms break (frequency 6.6Hz) Program 19: 15ms pulse with 40ms break (frequency 18.2Hz)
  • Page 34 BTL - 09 user manual & user's guide Program 22: 10x 20ms pulse with 20ms break, 476 break, 8x 5ms pulse with 471ms break, 4x 40ms pulse with 30ms break, 40ms pulse with 298ms break, 10x 5ms pulse with 298ms break...
  • Page 35 BTL - 09 user manual & user's guide Program 27: 15x 8ms pulse with 112ms break (frequency 8,3Hz), 14x 15ms pulse with 135ms break (frequency 6.6Hz) Program 28: 15ms pulse with 28ms break (frequency 23.25Hz) Program 29: 5x 5ms pulse with 5ms break (frequency 100Hz),80ms Program 30: 20ms pulse with 200ms break (frequency 4.5Hz)
  • Page 36 BTL - 09 user manual & user's guide Program 33: 3x 15ms pulse with 105ms break (frequency 8.3Hz), 3x 8ms pulse with 112ms break (frequency 8.3Hz) Program 34: 3x 20ms pulse with 20ms break (frequency 25Hz), 406ms, 3x 16ms pulse with 510ms break (frequency 1.9Hz) Program 35: 3x 20ms pulse with 20ms break (frequency 25Hz), 183ms break, 4x 5ms pulse with 298ms break (frequency 3.3Hz)
  • Page 37 BTL - 09 user manual & user's guide Program 39: 10ms pulse with 30ms break (frequency 25Hz) Program 40: 46x 5ms pulse with 145ms break (frequency 6.6Hz), 73x 10ms pulse with 80ms break (frequency 11.1Hz), 92x 20ms pulse with 50ms break (frequency 14.2Hz), 144x 5ms pulse with 55ms break (frequency 16.6Hz), 137x 9ms pulse with 40ms break (frequency 20.4Hz), 157x 20ms pulse with 23ms break (frequency 23.3Hz), 189x 7ms pulse...
  • Page 38 BTL - 09 user manual & user's guide Program 43: 9x 10ms pulse with 70ms break, 15x 5ms pulse with 75ms break (frequency 12.5Hz) Program 44: 17ms pulse with 44ms break (frequency 16.4Hz) Program 45: 5x 6ms pulse with 4ms break, 20ms break...
  • Page 39 BTL - 09 user manual & user's guide Program 49: 80ms pulse with 200ms break (frequency 3.6Hz) Program 50: 10ms pulse with 60ms break (frequency 14.2Hz) Program 51: 5x 20ms pulse with 30ms break (frequency 20Hz), 476ms break, 3x 5ms pulse with 471ms break (frequency 2.1Hz) Program 52: 10x 5ms pulse with 10ms break (frequency 66.6Hz), 100ms, 60ms pulse with 80ms break, 60ms pulse with 100ms...
  • Page 40 BTL - 09 user manual & user's guide Program 55: 2x 65ms pulse with 235ms break (frequency 3.3Hz), 6x 5ms pulse with 295ms break (frequency 3.3Hz) Program 56: 10ms pulse with 155ms break (frequency 6.1Hz) Program 57: 5x 20ms pulse with 100ms break (frequency 8.3Hz), 1065ms break...
  • Page 41 BTL - 09 user manual & user's guide Program 61: 5ms pulse with (5-162)ms break (frequency 6 - 100Hz), 120s period Program 62: 5ms pulse with 15ms break (frequency 50Hz) Program 63: 100x 5ms pulse with 35ms break (frequency 25Hz), 100x 5ms pulse with 5ms break (frequency 100Hz)
  • Page 42 The contents of this document is provided "as is". Except as required by applicable law, no warranties of any kind, either expressed or implied, are made in relation to the accuracy, reliability or contents of this document. BTL Industries Limited reserves the right to revise this document or withdraw it at any time without prior notice.
