- Page 1 User Manual v100z2TN24/02/2003EN...
-
Page 2: Table Of Contents
BTL - 1500 User Manual CONTENTS 1 BASIC FEATURES ..............................3 2 USER MANUAL ............................... 4 Appearance (Three-motor Configuration) ......................4 Chair Assembly and Initiation........................... 5 Control Units ..............................5 2.3.1 Hand Switch (standard)............................ 5 2.3.2 Foot Switch (optional) ............................5 3 ACCESSORIES ............................... -
Page 3: Basic Features
User Manual BASIC FEATURES The BTL-1500 gynaecological chair is manufactured in four configurations: one-motor, two-motor, three-motor, and a three-motor chair with memory. The one-motor chair comes with electrically adjustable height while the positions of the seat and the back-rest are fixed. The two-motor configuration has electrically adjustable height and back-rest. The three-motor configuration offers electrical adjustment of all three parts - height, back-rest, and seat. -
Page 4: User Manual

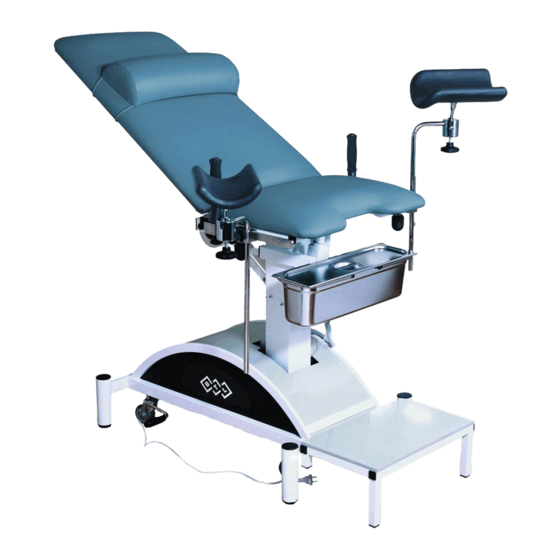

BTL - 1500 User Manual USER MANUAL Appearance (Three-motor Configuration) The seat and back-rest leatherette upholstery is available in a wide range of colours. The frame is metal and varnished. back-rest seat handgrips leg supports (under heels) fixing screw stainless steel trash bin... -
Page 5: Chair Assembly And Initiation
In case of any questions, please contact your BTL service technician or BTL Service Department. Connect the chair directly to the power source and check its functions by using the control unit. -
Page 6: Accessories
BTL - 1500 User Manual ACCESSORIES One-motor Configuration Standard: Hand switch for one motor Holder for sanitary paper (seat cover) Leg supports (under heels) Handgrips Stainless steel trash bin (50 x 15 x 15) Additional: Retractable castors with a lifting mechanism... -
Page 7: Maintenance And Safety
BTL - 1500 User Manual MAINTENANCE AND SAFETY • Wash the upholstery with detergent. For disinfection use for example 10% Persteril. Do not use acetone-based substances! • It is recommended to check the chair thoroughly once a month in order to detect loose cables, damaged cable insulation, etc. -
Page 8: Technical Parameters
BTL - 1500 User Manual TECHNICAL PARAMETERS Identification manufacturing commercial 1.1.Product type BTL-65 BTL-1500 1.2.Product name gynaecological chair gynaecological chair 1.3.Configurations 1-motor 1-motor 2-motor 2-motor 3-motor 3-motor 3-motor with memory 3-motor with memory 1.4.Field of use medical equipment Operating conditions 2.1.Temperature... - Page 9 BTL - 1500 User Manual Electrically adjustable features Feature Range Step Seat tilt 0 - 45° continuous Back-rest tilt 5° - 50° continuous Height adjustment 86 - 106 cm continuous Classification Class according to 60601-1 Applied part B type Class according to NV 180 (93/42/EEC) 10.
- Page 10 BTL - 1500 User Manual Manufacturer: Medical Technologies s.r.o. Heleny Malirove 11 169 00 Prague 6 Czech Republic tel/fax: +420 233 355 584 Representative: BTL Industries Limited Suite 401 Albany House 324-326 Regents Street London WIB 3BL United Kingdom tel: +4420 8371 2267 fax: +4420 8371 2270 email: btl@cobus.net...
