Summary of Contents for Stephill SSDK12M

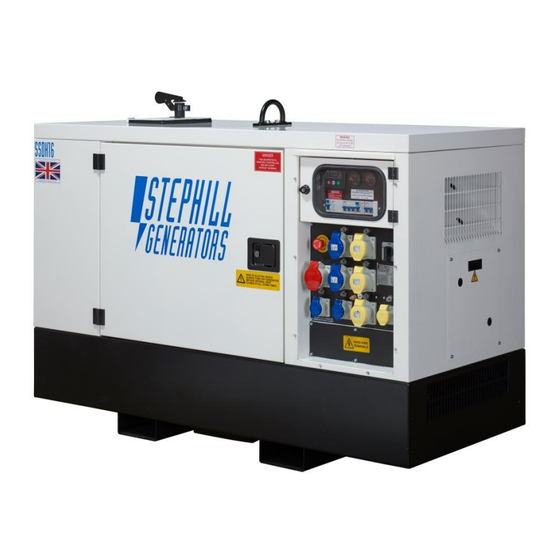

- Page 1 Issue 4 SSDK12M – SSDK16M – SSDK20M 12 to 20kVA Multi-Phase Generators Handbook & Operation Manual +44 (0) 1933 677911 www.stephill-generators.co.uk...
-
Page 2: Table Of Contents
SSDK12M - SSDK16M - SSDK20M Contents 3 Introduction 13 Operating Instructions 13 Pre-starts Checks 3 Warranty Statement 13 Check Battery Isolator Key & Location 13 Check Oil Level - How to 3 Amendments 14 Adding Engine Oil 15 Check Coolant Level... - Page 3 SSDK12M - SSDK16M - SSDK20M 27 Service and Maintenance 27 Pre-service 27 Engine Service 27 Oil System Service 27 Oil System Location(s) 28 Oil System Service Procedure 28 Alternator Service 28 Road Tow Trailers 28 Trailer Information 29 Safety Precautions...
-
Page 4: Introduction
No warranty claim will be considered by Stephill Generators Ltd unless any defective parts are available for inspection by us, or our nominees, to determine the reason or cause of failure, and Stephill Generators Ltd is given the option of repair or replacement. -
Page 5: Identification
SSDK12M - SSDK16M - SSDK20M Identification Each Stephill generator will have a Serial/Data plate fitted to the set. In most cases this can be found on the control/socket panel of a SSDK-Range generator. Below is an example of the Serial/Data plate. -
Page 6: Specification
ISO 8528-1 under the agreed operating conditions with the maintenance intervals and procedures being carried out as prescribed by the manufacturers. AC Output Protection As standard all SSDK-Range Stephill generators are configured as a multiphase generator with both single phase (1Ph) and three phase (3Ph) outputs. 400V 3Ph MCB overload/short circuit protection - RCD earth leakage protection. -
Page 7: Running Hours
SSDK12M - SSDK16M - SSDK20M Model Type Running Hours SSDK12(M) SSDK16(M) SSDK20(M) 25% Load 133 hours @ 0.9 L/h 109 hours @ 1.1 L/h 86 hours @ 1.4 L/h 50% Load 67 hours @ 1.8 L/h 54 hours @ 2.2 L/h 43 hours @ 2.8 L/h... -
Page 8: Control Panel Identification
SSDK12M - SSDK16M - SSDK20M Control Panel Identification Fig.2 shows a typical standard multiphase control panel configuration found on all K-Range Stephill generators. The control panel is made up of engine and generator controls (DC) and the generator output (AC). - Page 9 SSDK12M - SSDK16M - SSDK20M Fig.4 Item No. Description Item No. Description 230V 16A 1Ph Socket Outlet 400V 32A 3Ph Socket Outlet (only operates in 400V setting) Emergency Stop 230V 16A 1Ph Socket Outlet 30A Reset Button - Fitted to all Brass Earth Stud 32A 1Ph socket outlets.
-
Page 10: Generator Safety
SSDK12M - SSDK16M - SSDK20M Generator Safety Before using this equipment and to avoid personal injury, all warnings shown on the machine should be observed. The warning signage should be checked for legibility and any that have become damaged should be replaced. -
Page 11: Personal Safety
SSDK12M - SSDK16M - SSDK20M f) Located near the control panel. g) Located near the control panel. h) Located below the control panel. Personal Safety • Do not climb on the generator - dents may cause overheating of the acoustic lining. -
Page 12: Operating Environment
The standard reference condition for total barometric pressure is 1 bar. This corresponds to an altitude of approximately 100m. Above 100m the rated power must be reduced. Flammable Environment Stephill generators must not be used in a flammable environment. Saline Environment Operation of the machine in a saline environment will require additional corrosion protection. -
Page 13: Bunded Fuel Tank
Earth Connection All Stephill products are fitted with an earth stud on the control panel this must be connected to an earthing system or spike. Any earth spike required is dependant on the local conditions of use. The size is determined by reference to current IEE regulations or to a competent electrician. -
Page 14: Hot Parts
Do not operate the generator unless all guards are in place. There is a risk of burns or serious mechanical injury. Operating Instructions STEPHILL GENERATORS LTD STRESS THAT THE ULTIMATE RESPONSIBILTY FOR THE SAFE USE OF THE GENERATOR RESTS WITH THE USER. Pre-start Checks Before any attempt to start the generator please follow these important guidelines. -
Page 15: Adding Engine Oil
SSDK12M - SSDK16M - SSDK20M Fig.7 & Fig.8 show the oil fill and oil dipstick locations for each of the Kubota engines used within the Stephill K-Range generators. SSDK12 - Kubota V1505 Fig.7 (1) Oil filler plug(s) (2) Oil level gauge - Dipstick (A) Ensure the engine oil level within this range SSDK16 - Kubota D1703 &... -
Page 16: Check Coolant Level
SSDK12M - SSDK16M - SSDK20M Check Coolant Level It is recommended to check the water/coolant level of the radiator BEFORE EVERY START OPERATION - Ref. Fig.9. The radiator is provided with a recovery tank (expansion vessel) , check the water/coolant is between the "FULL"... -
Page 17: Applying Load
SSDK12M - SSDK16M - SSDK20M Applying Load Now the generator is ready to receive load. Select the desired AC voltage with the AC voltage switch. Plug the load into the relevant AC voltage socket on the control panel. Switch the main MCB to "ON" (switch up) position on the control panel. -
Page 18: Hard Wire Terminals - Connection & Location
Warning The plate MUST be fitted when running the generator - Risk of Electric Shock. Long Term Storage For storage or long periods of inactivity, Stephill Generators recommend the following: Generators should be stored with oil filled to the correct capacity; Storage periods of 18 months and over may require special lubricants and treatments. -
Page 19: Dse 3110 Control Module - Overview
SSDK12M - SSDK16M - SSDK20M DSE 3110 Control Module - Overview Page Order Engine Speed Generator Volts (AC) Generator Frequency Engine Run Time Battery Volts (DC) Fig.14 Fig.15 DSE 3110 Operation The DSE 3110 control module is used to start/stop and monitor key elements of the engine and main AC alternator. -
Page 20: Viewing The Instruments
SSDK12M - SSDK16M - SSDK20M Viewing the Instruments It is possible to scroll to display the different pages of information by repeatedly operating the navigation button. Fig.15 (above) shows the page order when pressing the navigation button. Once selected the page will remain on the LCD display until the user selects a different page or after an extended period of inactivity, the module will revert to the status display. -
Page 21: Standard 12V Lift Pump
An alternative method to help pull the fuel from an external fuel source to the engine is to uprate the standard 12V fuel lift pump on the engine. Stephill Generators can supply a replacement fuel lift pump that has head lift of around 1.5M. -
Page 22: Fault Finding
SAFE USE OF THE GENERATOR RESTS WITH THE USER. Monitoring Systems All standard Stephill K-Range generators use a DSE 3110 control module to operate/monitor the engine and generator. The SSDK16 & SSDK20 also have a separate Engine Control Unit (ECU). Both of the above systems can shut down the generator independently. - Page 23 DSE 3110 Control Module wiring. The SSDK12 Kubota engine (V1505) has an adjustable governor that can increase and decrease the engine speed. This is factory set by Stephill during testing. It is not recommended to adjust the engine speed unless absolutely necessary - The correct no- load frequency for this engine is 52.5Hz.
- Page 24 SSDK12M - SSDK16M - SSDK20M Fault Icon Possible Cause Check High Hz/Frequency could indicate the engine is running too fast. ● Using the fuel pump prime button, prime the fuel system Fuel System to expel any trapped air within. High Hz/Frequency If none of the above solve the issue then a closer inspection of the engine would be advised e.g.
-
Page 25: Fault Finding - Kubota Ecu
SSDK12M - SSDK16M - SSDK20M Fault Icon Possible Cause Check ● Check oil level and top-up to the correct level if Low Oil Level necessary. ● Check the oil pressure switch operation - Switch normally Oil Pressure Switch closed when engine is at rest and open when engine Low Oil Pressure running - Remove, clean or replace if necessary. - Page 26 SSDK12M - SSDK16M - SSDK20M Below are the blinking patterns and the associated fault/issue.
-
Page 27: Fault Finding - General
SSDK12M - SSDK16M - SSDK20M Fault Finding - General Fault Description Checks/Causes ● Check/test the main MCB and RCD. Generator starts and runs but will not take load ● Check/test the voltage selector switch. ● Check the wiring behind the control panel. -
Page 28: Service And Maintenance
You can find the basic service intervals at www.stephill-generators.co.uk Oil System Service To ensure both the oil pressure switch and oil pressure sender continue to operate correctly, Stephill Generators recommends that both components may require/benefit from a periodic "service" (annually is recommended). -
Page 29: Oil System Service Procedure
Alternator Service Brushless alternators employed on Stephill Generators are maintenance free. Service must be carried out by competent qualified personnel strictly in accordance with the instructions given in the handbook. Any spare parts required should be of genuine manufacturer’s origin. For further information please consult alternator manufacturer’s website. -
Page 30: Safety Precautions
The UK industry standard size number plate is 520 mm × 111 mm (20½" × 4⅜"). Hitch Type Fig.22 & 23 show standard hitch types provided by Stephill Generators. BALL Ball Hitch Fig.22... -
Page 31: Hitching Method
At the same time the transmission lever swings back and compensates for the entire travel. STEPHILL GENERATORS LTD STRESS THAT THE ULTIMATE RESPONSIBILTY FOR THE SAFE USE, SERVICE AND CONDITION OF THE TRAILER IS WITH THE OWNER/USER. -
Page 32: Spares
SSDK12M - SSDK16M - SSDK20M Spares Kubota Consumable Service Spares Basic Kubota engines service kits are available form Stephill Generators, below are the individual parts complete with part numbers. SSDK12(M) SSDK16(M) SSDK20(M) Description Kubota V1505 Kubota D1703 Kubota V2203 Oil Filter... -
Page 33: Engine Accessories
SSDK12M - SSDK16M - SSDK20M General Spares - cont. Fuel Sender Unit 210mm 023-1082 Fuel Tank Hose 3" 023-1044 Isolator Switch - c/w Red Key - Battery 045-0020 Handle Flush - Radiator Plate 014-1004 Polycarbonate Window - Con. Panel Door... - Page 34 023-0307 SSDK25 V2003T Radiator plate 023-0151 SSDK12-25 Engine end panel plate 023-0122 SSDK12-25 Base 023-0270 SSDK12-25 Kubota expansion tank bracket 023-0137 SSDK12-25 1000Kg lifting beam Drawing Number Description STEPHILL GENERATORS Issue Date Revision Colour 23-264 THIRD SSDK12-25 Canopy exploded view...
- Page 35 023-0133 SSDK16-25 1 7/8" Down pipe 10 023-0212 SSDK16-25 1 3/4" Straight tail pipe 11 023-1016 SSDK16-25 Rain cap 44-46mm Drawing Number Description Issue Date Revision Colour STEPHILL GENERATORS 23-132 THIRD SSDK12-25 Silencers Black 19/06/15 Description and part numbers changed. Phone : +44 (0)1933 677911...
- Page 39 Blank Page...
- Page 40 Stephill Generators Ltd. Wallis Close, Park Farm South, Wellingborough, Northants, NN8 6AG. Copyright 2022 © Stephill Generators Ltd...
