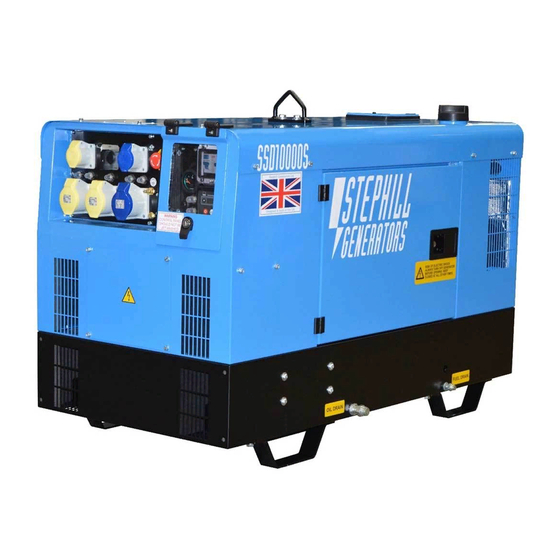

SSD8500 - SSD10000 - SSD10000S - SSD10000W
Handbook Deep Sea 3110
Stephill Generators Ltd
Wallis close
Park Farm South
Wellingborough
Northants
NN8 6AG
Tel : +44 (0)1933 677911
Fax : +44 (0)1933 677916
E-mail :
info@stephill-generators.co.uk
Web :
www.stephill-generators.co.uk
DO NOT OPERATE THE GENERATOR BEFORE READING THIS MANUAL AND ENGINE
MANUFACTURER'S OWNER'S MANUAL AND WARNINGS.
THIS STEPHILL GENERATOR HAS BEEN DESIGNED TO PROVIDE SAFE AND EFFICIENT SERVICE
IF OPERATED AND MAINTAINED CORRECTLY.
MANY ACCIDENTS OCCUR THROUGH FAILURE TO ADHERE TO FUNDAMENTAL SAFETY
PROCEDURES.
Issue 3
17/06/2015
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Stephill SSD8500
Summary of Contents for Stephill SSD8500
- Page 1 DO NOT OPERATE THE GENERATOR BEFORE READING THIS MANUAL AND ENGINE MANUFACTURER’S OWNER’S MANUAL AND WARNINGS. THIS STEPHILL GENERATOR HAS BEEN DESIGNED TO PROVIDE SAFE AND EFFICIENT SERVICE IF OPERATED AND MAINTAINED CORRECTLY. MANY ACCIDENTS OCCUR THROUGH FAILURE TO ADHERE TO FUNDAMENTAL SAFETY PROCEDURES.
-
Page 2: Table Of Contents
Contents Page SPECIFICATION GENERAL SAFETY Warning signs Safety hazards POTENTIAL HAZARDS Auxiliary power Operating environment Temperature range Reference relative humidity Reference barometric pressure Flammable environment Saline environment SAFETY CONSIDERATIONS General Fuel Lubricating oil Safe lifting Earth connection Fumes Noise Battery acid Fire 4.10 Hot parts... -
Page 3: Specification
1 Specification Standard Set Voltage: 230v Neutral bonded to earth & 115v Neutral bonded to earth. SSD10000S SSD8500S SSD10000 Dba@7M Engine Kubota D722 Kubota Z602 Kubota D722 Alternator NSM M 112 SB/2 NSM M 112 SB/2 NSM M 112 SB/2 (c/w RCM2 AVR) Wet Weight Skid 330Kg... -
Page 4: General Safety
2 General Safety 2.1 Warning signs Warnings shown on the machine should be observed at all times. The warning signs should be checked for legibility and any that have become damaged should be replaced. The following are shown on the generator: WARNING BEFORE STARTING. -
Page 5: Reference Barometric Pressure
4.5 Earth connection All Stephill products are fitted with an earth stud on the control panel this must be connected to an earthing system or spike. Any earth spike required is dependant on the local conditions of use. The size is determined by reference to current IEE regulations or to a competent electrician. -
Page 6: Noise
Always turn load off before stopping generator. 5.4 Long term storage For storage or long periods of inactivity, Stephill Generators recommend the following: Generators should be stored with oil filled to the correct capacity; Storage periods of 18 months and over may require special lubricants and treatments. If so please seek further advice from the engine manufacturer. -
Page 7: Deep Sea 3110 Operating Instructions
6 DEEP SEA 3110 OPERATING INSTRUCTIONS 6.1 Description of controls 6.2 Starting the engine To begin the starting sequence, press the button. icon is displayed to indicate Manual mode and the manual LED flashes. button must be pressed once more to begin the start sequence. 6.3 Starting sequence If a start request is present, the fuel relay is energised and the engine will be cranked. -
Page 8: Waiting In Auto Mode
6.7 Waiting in auto mode If a starting request is made, the starting sequence will begin. Starting requests can be from the following sources: Activation of an auxiliary input that has been configured to remote start. 6.8 Viewing the instruments It is possible to scroll to display the different pages of information by repeatedly operating the scroll button Once selected the page will remain on the LCD display until the user selects a different... -
Page 9: Fault Finding 3110
GENERATOR The generator output voltage has fallen below the pre-set pre-alarm UNDER setting after the Safety On timer has expired. VOLTAGE GENERATOR OVER The generator output voltage has risen above the pre-set pre-alarm VOLTAGE setting. GENERATOR The generator output frequency has fallen below the pre-set pre- UNDER alarm setting after the Safety On timer has expired. -
Page 10: Fault Finding General
Starter motor Check wiring to starter solenoid. inoperative Check battery supply. Check battery supply is present on the Starter output of module. Ensure oil pressure switch or sensor is indicating the “low oil pressure” state to the 6000 series controller. Engine runs but Check MCB is switched on. -
Page 11: Service And Maintenance
Battery not Check the fan belt is not damaged, broken or loose. (Refer to handbook) charging Note you may experience low charge if fan belt is loose. Check for loose wires on charge alternator. Check for loose wires on the DC connector plug and socket. Check continuity of all wires from charge alternator. -
Page 12: Engine Service
7.2 Alternator service Brushless alternators employed on Stephill Generators are maintenance free. Service must be carried out by competent qualified personnel strictly in accordance with the instructions given in the handbook. Any spare parts required should be of genuine manufacturer’s origin. -
Page 13: Control Panel Spares
024-1003 Finger pull 024-1006 Fuel sender 027-0016 Mount Engine/Alternator M10 027-1017 Mount Radiator Bottom M10 027-0048 Mount Radiator M6 Top (SSD8500) 027-0003 Mount Radiator M8 027-0047 Mount Engine/Alternator M10 (SSD8500) 027-0048 Mount Radiator Bottom M10 (SSD8500) 023-1029 Hinge radiator flap... -
Page 14: Warranty
- Operation with incorrect fuel, lubricating oil or coolant. - Improper repair or use of parts not supplied by STEPHILL GENERATORS LTD. - Lack of or incorrect maintenance. - Fair wear and tear, misuse, negligence, accidental damage, improper storage and incorrect starting / warm-up / run-in or shutdown. -
Page 17: Ssd10000 Canopy Exploded View
024-0137 SSD10000 Fuel filter bracket 024-0199 SSD10000 Z602 Air filter plate 024-0198 SSD10000 Alternator channel NSM Drawing Number Issue Date Revision Colour Description STEPHILL GENERATORS 24-167 THIRD 21/09/10 New drawing SSD8500S/10000/10000S Canopy ANGLE Phone 01933 677911 31/01/08 New drawing Drawn... -
Page 18: Ssd10000 Roof Exploded View
Hinge 023-1019 Cam 28mm 023-1020 Insert slot 023-1021 Housing Drawing Number Issue Colour Description Date Revision STEPHILL GENERATORS 24-168 21/09/10 Drawing updated. THIRD SSD8500S/10000S/10000 Roof ANGLE Phone 01933 677911 Drawn 09/01/08 Part numbers added. exploded view Material PROJECTION Fax 01933 677916...
