- Page 1 BTL-6000 TR-THERAPY USER’S MANUAL...
- Page 3 BEFORE YOU START Dear Customer, Thank you for purchasing BTL technology. All of us at BTL wish you every success with your new device. We pride ourselves on being as responsive as possible to our customers’ needs. Your suggestions and comments are...
-
Page 4: Table Of Contents
7 TECHNICAL PARAMETERS ..........................26 Essential Performance of the Device ........................ 27 Cable Routing..............................27 Interconnection with Other Devices ........................27 Electromagnetic Compatibility (EMC) ........................ 28 8 MANUFACTURER ..............................31 BTL-6000 TR-THERAPY – USER’S MANUAL I PAGE 4 OF 32... -
Page 5: Basic Characteristics Of The Device

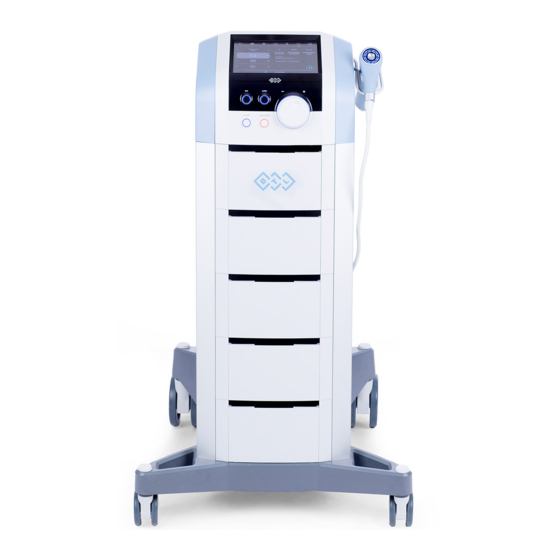

BTL-6000 TR-Therapy is a professional physiotherapy device. The device is available in two models BTL-6000 TR-Therapy Elite and BTL-6000 TR-Therapy Pro. It is equipped with a colour touch screen, which considerably simplifies its operation. The on-screen information will guide the user step-by-step through the entire therapy process. -
Page 6: Contraindications
Peripheral nerves close under the skin surface Small infants 1.4 POSSIBLE SIDE EFFECTS Possible side effects for contact radiofrequency current: Unpleasant sensation can temporarily occur in the treated area, moderate skin irritation. BTL-6000 TR-THERAPY – USER’S MANUAL I PAGE 6 OF 32... -
Page 7: Safety Precautions
Do not try to open or remove the protective covers or disassembly the device for any reason. There is a danger of electric shock and serious injury. All service actions must be done by an authorized BTL service only; otherwise BTL bear no responsibility for further operation of the device. - Page 8 If any faults or anomalies in the device function are found, stop using the device immediately and contact the authorized BTL service. In case that the device or the accessories are used despite the deviations, the user will be solely responsible for the damages caused by the device.
-
Page 9: Specific Safety Precautions For Btl-6000 Tr-Therapy
The device emits energy at approximately 500 kHz. Do not use the device in an environment where the 500 kHz electromagnetic signal can disturb other devices or can cause hazardous situation. Can cause local burns. BTL-6000 TR-THERAPY – USER’S MANUAL I PAGE 9 OF 32... -
Page 10: Symbols And Markings
Symbol marking a connector sensitive to electrostatic discharge (ESD) Temperature limitation Keep away from sunlight Use by / Expiration date Dispose of waste properly Batch code Catalogue number CE mark BTL-6000 TR-THERAPY – USER’S MANUAL I PAGE 10 OF 32... -
Page 11: Instructions For Operation
The USB Port: Located in the space used for gripping and lifting the device. For use only in compliance with IEC 60950-1. The USB port is used ONLY for technician service purposes such as the uploading of firmware. It is not designed for therapy use! BTL-6000 TR-THERAPY – USER’S MANUAL I PAGE 11 OF 32... -
Page 12: Front Panel Of Btl-6000 Tr-Therapy Pro
The USB Port: Located in the space used for gripping and lifting the device. For use only in compliance with IEC 60950-1. The USB port is used ONLY for technician service purposes such as the uploading of firmware. It is not designed for therapy use! BTL-6000 TR-THERAPY – USER’S MANUAL I PAGE 12 OF 32... -
Page 13: Rear Panel
10. output connector for the resistive applicator / patient cable for resistive electrode / patient cable for static application (blue) 11. mains power switch 12. mains cable connector 13. fuse box 14. fuse box BTL-6000 TR-THERAPY – USER’S MANUAL I PAGE 13 OF 32... -
Page 14: Putting The Device Into Operation
Unpack the device and place it on a firm and stable horizontal surface, which is suitable for its weight, or place it on an original BTL trolley. Place the device in accordance with the instructions listed in the Chapters Technical Parameters and the Safety Precautions (operating conditions, undesirable interference with other devices etc.) -
Page 15: Connecting The Electrodes
4 sizes of resistive electrodes (diameter 20, 30, 50 and 70 mm): 4 sizes of capacitive electrodes (diameter 20, 30, 50 and 70 mm): Neutral electrode: BTL-6000 TR-THERAPY – USER’S MANUAL I PAGE 15 OF 32... - Page 16 The connectors are equipped with a locking tongue which sets the correct connector position when connecting it. a) guiding groove of the output connector on the rear panel of the device b) locking tongue on the accessories connector BTL-6000 TR-THERAPY – USER’S MANUAL I PAGE 16 OF 32...
- Page 17 Applicators / patient cables for capacitive and resistive electrodes end with connectors, to which the electrodes can be connected. Patient cable for capacitive / resistive electrode: Capacitive / resistive applicator: BTL-6000 TR-THERAPY – USER’S MANUAL I PAGE 17 OF 32...
-
Page 18: Description Of The Device Control
The buttons on the screen can be pressed with a finger or any stylus without a sharp point (do not use pencils or pens, for example). The BTL-6000 TR-Therapy Elite and the BTL-6000 TR-Therapy Pro devices have a bar with device control buttons at the upper edge of the touch screen:... -
Page 19: Quick Therapeutic Protocol Selection - Quick
Quick Therapeutic Protocol Selection – QUICK 4.6.2 After pressing the quick button on the BTL-6000 TR-Therapy Elite touch screen the device displays the therapeutic protocol quick-selection screen – QUICK. The QUICK screen serves as a quick starting point of a therapy without the need to browse the entire list of all preset therapeutic protocols. - Page 20 This screen does not allow starting the therapy directly; it is necessary to confirm the set parameters by pressing the enter button (3) and return to the MANUAL therapy parameter screen with the start button. BTL-6000 TR-THERAPY – USER’S MANUAL I PAGE 20 OF 32...
-
Page 21: Process Of Treatment
Dynamic Impedance Control The tab on the left bottom edge of the screen indicates the running time value and the value of the set power. BTL-6000 TR-THERAPY – USER’S MANUAL I PAGE 21 OF 32... -
Page 22: User Settings / Database
(available only when the function “user accounts” is enabled) touch panel calibration display contrast button backlight service functions dialog history setting of HW key BTL-6000 TR-THERAPY – USER’S MANUAL I PAGE 22 OF 32... -
Page 23: Specific Settings
Selecting the specific settings item displays a menu with items referring to following functions: QUICK screen protocols check contact during therapy contact loss signalization default therapy setting test of the applicator BTL-6000 TR-THERAPY – USER’S MANUAL I PAGE 23 OF 32... -
Page 24: Accessories
Transportation case Set of holders for the applicators Set of holders for the patient cables Stand for electrodes … standard … optional BTL-6000 TR-THERAPY – USER’S MANUAL I PAGE 24 OF 32... -
Page 25: Maintenance
BTL. Do not repair the device. All service actions must be done by an authorized BTL service only and only original parts can be use for repair, otherwise BTL bear no responsibility for further operation of the device. -
Page 26: Technical Parameters
Max 125 V ± 20 % Output voltage Max 324 W ± 20 % Max 156 W ± 20 % Output power 100 Ω Nominal load impedance Working frequency 480 to 520 kHz BTL-6000 TR-THERAPY – USER’S MANUAL I PAGE 26 OF 32... -
Page 27: Essential Performance Of The Device
7.1 ESSENTIAL PERFORMANCE OF THE DEVICE The BTL-6000 TR-Therapy has no essential performance according to IEC 60601-1. 7.2 CABLE ROUTING To avoid unwanted electromagnetic emission into mains which may influence close-by electronic equipment, please don’t route patient cables and power cord simultaneously. Correct position is with power cord and patient cables routed in opposite directions from the unit. -
Page 28: Electromagnetic Compatibility (Emc)
Guidance and Manufacturer’s Declaration – Electromagnetic Emissions The BTL-6000 TR-Therapy is intended for use in the electromagnetic environment specified below. The customer or the user of the BTL-6000 TR-Therapy shall ensure that it is used in such an environment. Electromagnetic environment – guidance... - Page 29 Guidance and Manufacturer’s Declaration – Electromagnetic Immunity The BTL-6000 TR-Therapy is intended for use in the electromagnetic environment as specified below. The customer or user of the BTL-6000 TR-Therapy device shall ensure that it is used in such environment. Electromagnetic environment –...
- Page 30 To assess the electromagnetic environment for fixed HF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location, in which the BTL-6000 TR-Therapy is used, exceeds the applicable HF compliance level as stated above, the BTL-6000 TR-Therapy should be observed to verify normal operation.
-
Page 31: Manufacturer
The content of this document is provided "as is". Except as required by applicable law, no warranties of any kind, either expressed or implied, are made in relation to the accuracy, reliability or contents of this document. BTL Industries Limited reserves the right to revise this document or withdraw it at any time without prior notice. - Page 32 049-80MANEN103...
