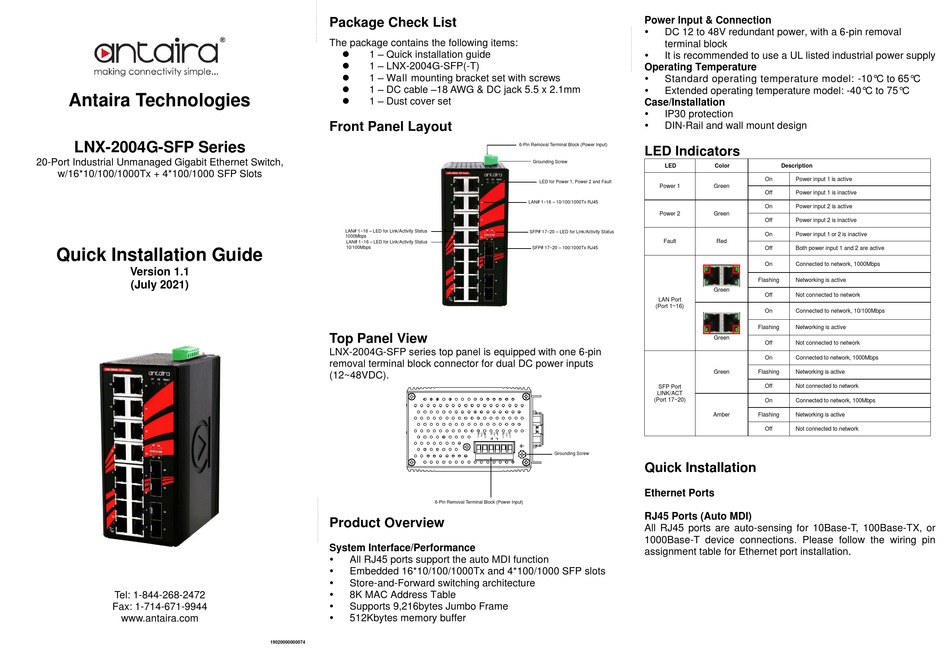

ANTAIRA LNX-2004G-SFP Series Quick Installation Manual

Antaira Technologies

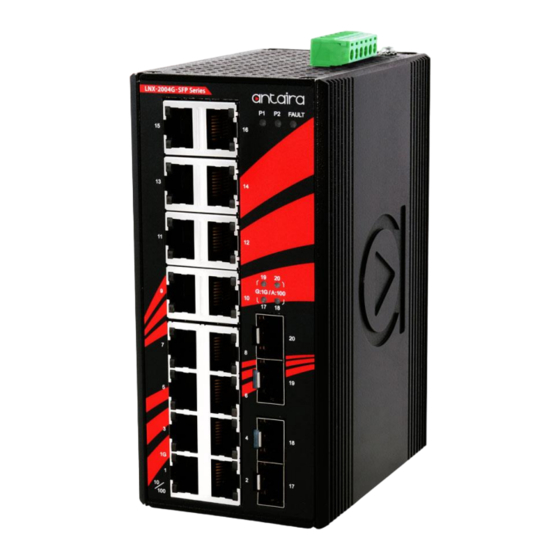

LNX-2004G-SFP Series
20-Port Industrial Unmanaged Gigabit Ethernet Switch,
w/16*10/100/1000Tx + 4*100/1000 SFP Slots
Quick Installation Guide
Version 1.1
(July 2021)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com
Package Check List
The package contains the following items:
⚫ 1 – Quick installation guide
⚫ 1 – LNX-2004G-SFP(-T)
⚫ 1 – Wall mounting bracket set with screws
⚫ 1 – DC cable –18 AWG & DC jack 5.5 x 2.1mm
⚫ 1 – Dust cover set
Front Panel Layout
LAN# 1~16 – LED for Link/Activity Status
1000Mbps
LAN# 1~16 – LED for Link/Activity Status
10/100Mbps
Top Panel View
LNX-2004G-SFP series top panel is equipped with one 6-pin
removal terminal block connector for dual DC power inputs
(12~48VDC).
6-Pin Removal Terminal Block (Power Input)
Product Overview
System Interface/Performance

All RJ45 ports support the auto MDI function

Embedded 16*10/100/1000Tx and 4*100/1000 SFP slots

Store-and-Forward switching architecture

8K MAC Address Table

Supports 9,216bytes Jumbo Frame

512Kbytes memory buffer
19020000000074
Power Input & Connection

DC 12 to 48V redundant power, with a 6-pin removal
terminal block

It is recommended to use a UL listed industrial power supply
Operating Temperature

Standard operating temperature model: -10°C to 65°C

Extended operating temperature model: -40°C to 75°C
Case/Installation

IP30 protection

DIN-Rail and wall mount design
6-Pin Removal Terminal Block (Power Input)
LED Indicators
Grounding Screw
LED
LED for Power 1, Power 2 and Fault
Power 1
LAN# 1~16 – 10/100/1000Tx RJ45
Power 2
SFP# 17~20 – LED for Link/Activity Status
Fault
SFP# 17~20 – 100/1000Tx RJ45
LAN Port
(Port 1~16)
SFP Port
LINK/ACT
(Port 17~20)
Grounding Screw
Quick Installation
Ethernet Ports
RJ45 Ports (Auto MDI)
All RJ45 ports are auto-sensing for 10Base-T, 100Base-TX, or
1000Base-T device connections. Please follow the wiring pin
assignment table for Ethernet port installation.
Color Description
On Power input 1 is active
Green
Off Power input 1 is inactive
On Power input 2 is active
Green
Off Power input 2 is inactive
On Power input 1 or 2 is inactive
Red
Off Both power input 1 and 2 are active
On Connected to network, 1000Mbps
Flashing Networking is active
Green
Off Not connected to network
On Connected to network, 10/100Mbps
Flashing Networking is active
Green
Off Not connected to network
On Connected to network, 1000Mbps
Green Flashing Networking is active
Off Not connected to network
On Connected to network, 100Mbps
Amber Flashing Networking is active
Off Not connected to network
