- Page 1 UICK NSTALLATION H2TU-R-402 L EMOTE...

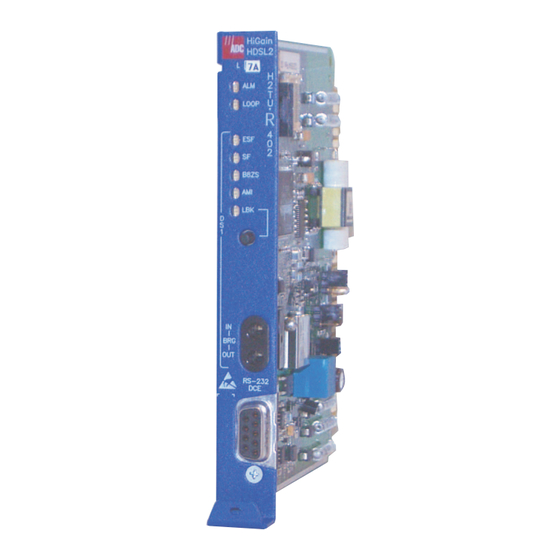

- Page 2 H2TU-R-402 L The H2TU-R-402 List 7A (H2TU-R) functions as the remote end of a repeaterless T1 ® ® transmission system when connected to a HiGain , Soneplex , or LoopStar HDSL2 line unit (H2TU-C). Setting new standards for interoperability and efficiency, HiGain HDSL2 modules transmit 1.544 Mbps T1 payload on one unconditioned copper pair over the full Carrier Service Area (CSA) range.
- Page 3 NSTALLATION Sealing Current Jumper SCURR H0205-A H0205-B Line/Local Power Jumper LINE LOCAL LINE LOCAL -2 3 Remote enclosure H2TU-R-402 Wear an antistatic wrist strap when installing the H2TU-R. Avoid touching components on the circuit board. Configure the H2TU-R for line or local power, as follows: •...
- Page 5 H2TU-C. Once logged on, you can view system settings and inventory, initiate loopbacks, monitor performance, and configure the circuit. Monitor Performance Event Log Config Inventory Report Rlogon Help +------------------------------------------------+ ADC DSL Systems, Inc. HiGain HDSL2 Voice: 800.366.3891 ext 73223 714.730.2400 +------------------------------------------------+ ID: xxxx--xxxx--xxxx--xxxx 01/24/2003 06:38:12 H2TU-C System: OK...
- Page 6 Downloading status and performance monitoring data to file. For more information about the HDSL2 line unit maintenance screens, refer to the H2TU-C line unit user manual. Copies of ADC line unit user manuals can be downloaded from the ADC website at www.adc.com.
- Page 7 Service for details. Modifications Any changes or modifications made to this device that are not expressly approved by ADC DSL Systems, Inc. voids the user's warranty. All wiring external to the products should follow the provisions of the current edition of the National Electrical Code.
