Description
Demonstration circuit 2120A features the LT3048-15, a
Boost DC/DC Converter with integrated Schottky diode and
LDO in a 2mm × 2mm DFN package. This demo board is
designed to convert a 2.7V to 4.8V input to a 15V output
at 19mA to 35mA with low output ripple and noise. The
LT3048-15 is programmed for 2MHz switching frequency.
This demonstration board can be used to evaluate other
fixed output voltage versions of the LT3048.
performance summary
PARAMETER
Input Supply Range
Output Voltage Range
Switching Frequency
Output Ripple
Arrow.com.
Downloaded from

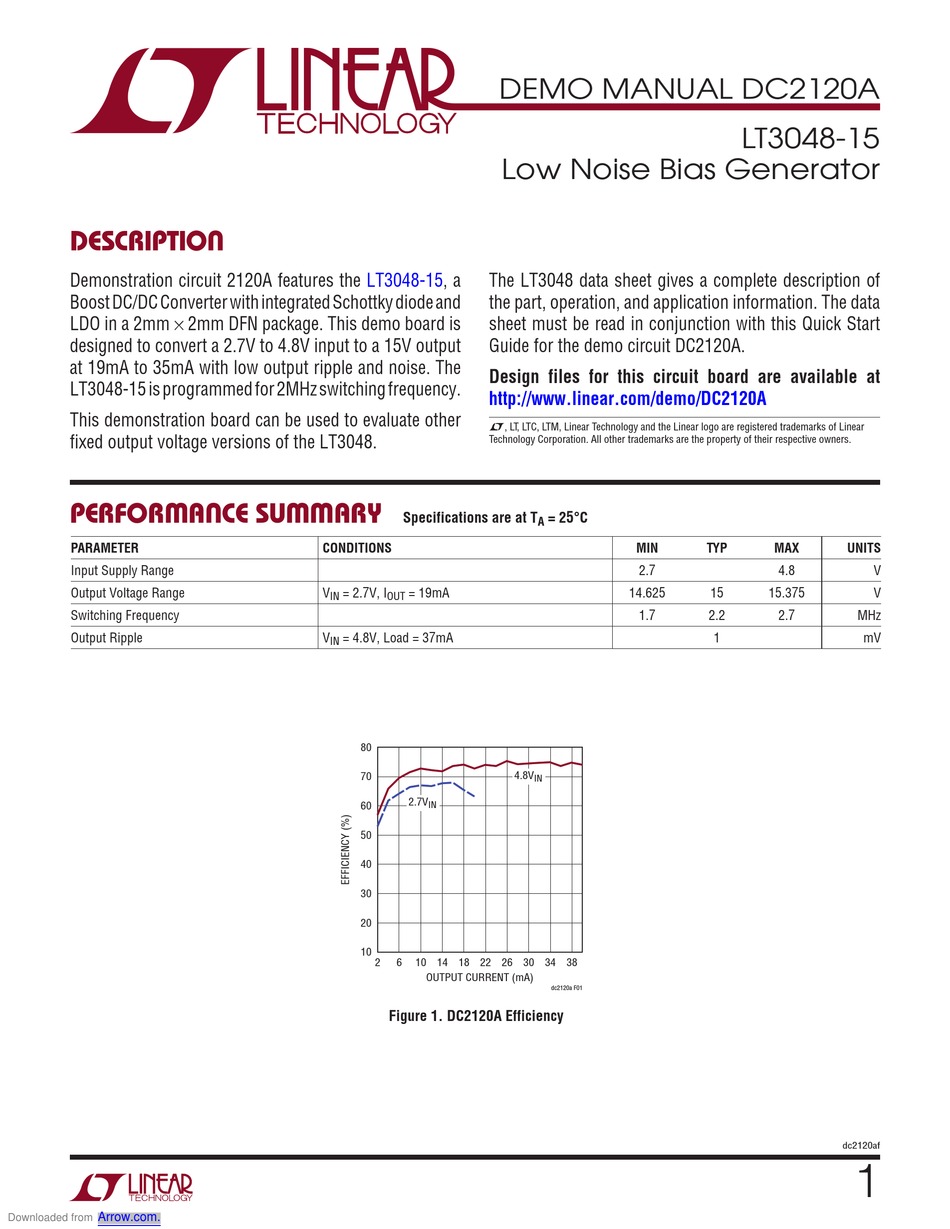

DEMO MANUAL DC2120A
Low Noise Bias Generator
The LT3048 data sheet gives a complete description of
the part, operation, and application information. The data
sheet must be read in conjunction with this Quick Start
Guide for the demo circuit DC2120A.
Design files for this circuit board are available at
http://www.linear.com/demo/DC2120A
L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear
Technology Corporation. All other trademarks are the property of their respective owners.
Specifications are at T
CONDITIONS
V
= 2.7V, I
= 19mA
IN
OUT
V
= 4.8V, Load = 37mA
IN
80
70
2.7V
60
IN
50
40
30
20
10
2
6
10
14
18
22
26
OUTPUT CURRENT (mA)
Figure 1. DC2120A Efficiency
= 25°C
A
MIN
2.7
14.625
1.7
4.8V
IN
30 34
38
dc2120a F01
LT3048-15
TYP
MAX
UNITS
4.8
V
15
15.375
V
2.2
2.7
MHz
1
mV
dc2120af
