DESCRIPTION
The DC2294A Linduino™ Shield is an adapter board enabling
use of Linduino PSM (Power System Management) soft-
ware with off the shelf Linear Technology PSM demonstra-
tion boards. For a complete list of compatible demo boards,
click this link: http://www.linear.com/search/search.
php?q=dc&col=doc-dm&start=&sort=&order=&ci=1800.
Linduino PSM software is a set of libraries meant to facilitate
learning and software development for PMBus devices. The
portability and flexibility of the Linduino platform makes
it ideal for demonstrating a wide variety of applications.
Linduino is an Arduino compatible board with an isolated
2
I C interface and a ribbon connector that supports com-
munication with many LTC
The DC2294A Linduino Shield extends this capability to
the PSM demonstration circuits. For more information
on Linduino, see:
http://www.linear.com/solutions/linduino
PROGRAMMING: REQUIRED HARDWARE
Varies based on application, but in general:
Arduino Software Supported PC with USB
n
Linduino One (DC2026A)
n
USB cable
n
PROGRAMMING: REQUIRED SOFTWARE
Arduino IDE
n
LTC Linduino Sketchbook (http://www.linear.com/so-
n
lutions/Linduino) – See the QuickStart Tab
demonstration circuit boards.
®
DEMO MANUAL DC2294A
Power System Management
Linduino One Shield

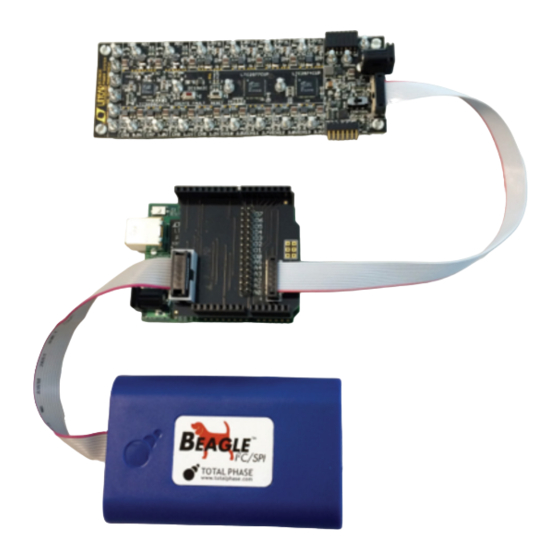

DEMONSTRATION: REQUIRED HARDWARE
Varies based on application, but in general:
DC2026 Linduino One
n
DC2294A Linduino Shield
n
Target Demo Board (DC1962, etc.)
n
DEMONSTRATION: NICE TO HAVE
2
Total Phase Beagle I
n
Total Phase Data Center Software
n
For this getting started manual, we will use the DC1962.
The DC1962 demo board has 14 power supply rails:
2X LTC3880, 4X LTC2974 and 8X LTC2977.
SHIELD FEATURES
12 Pin PSM Ribbon Cable Connector
n
10 Pin Total Phase Beagle Connector
n
LTC4313 Bus Buffer
n
Observe PMBus and SPI with a Beagle
n
LINDUINO PSM FEATURES
A Library of Common PMBus Commands that Sup-
n
ports the Most Recent PMBus Features, Including
Group Protocol and Page Plus
Demonstration Sketches for the Linduino
n
Design files for this circuit board are available at
http://www.linear.com/demo/DC2294A
L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks and
Linduino is a trademark of Linear Technology Corporation. All other trademarks are the property
of their respective owners.
C Protocol Analyzer
