DESCRIPTION
Demonstration circuit 2430A is a Linduino
Expander Shield. The DC2430A shield routes SPI and
2
I
C signals from one DC2026 to one of eight selectable
QuikEval™ connector sites. When a DC2430A QuikEval
connector site is selected, an LED will illuminate next to
the active site. The DC2430A shield comes with a mounted
DC2026 as shown Figure 1.
DC2430A site selection can be controlled manually or
through software. By default, Manual Site Select mode
is enabled, which is controlled by the on-board rotary
switch. LED D8 illuminates when Manual Site Select mode
is enabled. For Software Site Select mode, example code
is provided in the LTSketchbook.
J0, QuikEval
CONNECTOR SITE
J1, QuikEval
CONNECTOR SITE
J2, QuikEval
CONNECTOR SITE
Arrow.com.
Downloaded from
SPI 1:8
®
J3 QuikEval
CONNECTOR SITE
JP3, J20 TO J22
LINEAR TECHNOLOGY ParallelSync
SUPPORT CIRCUITRY

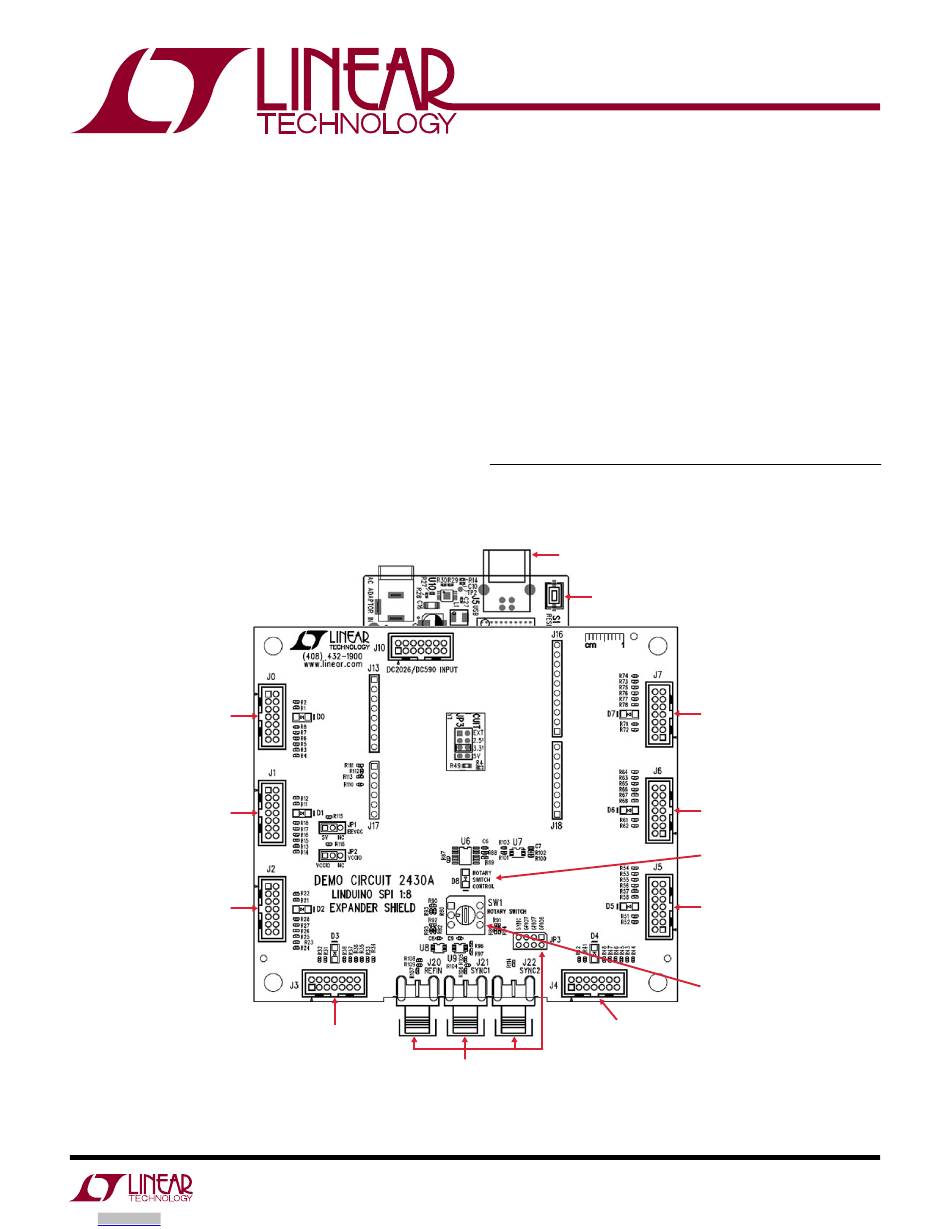

Figure 1. DC2430A Connections
DEMO MANUAL DC2430A
Linduino SPI 1:8
Expander Shield
The DC2430A provides ParallelSync™ support circuitry
which aligns an asynchronous digital signal to the rising
edge of a reference clock. This circuitry will allow for an
easy demonstration of ParallelSync with Linear Technol-
ogy's clock generation and distribution products, such
as the LTC6951.
Design files for this circuit board are available at
http://www.linear.com/demo/DC2430A
L, LT, LTC, LTM, Linear Technology, the Linear logo and Linduino are registered trademarks
and QuikEval and ParalleSync are trademarks of Linear Technology Corporation. All other
trademarks are the property of their respective owners.
Linduino USB
CONNECTION TO PC
Linduino (DC2026)
MOUNTED TO DC2430
J4 QuikEval
CONNECTOR SITE
J7, QuikEval
CONNECTOR SITE
J6, QuikEval
CONNECTOR SITE
D8, LED, ROTARY
SWITCH ENABLED
INDICATOR
J5, QuikEval
CONNECTOR SITE
SW1, ROTARY
SWITCH MANUAL
SITE SELECT MODE
dc2430af
1
