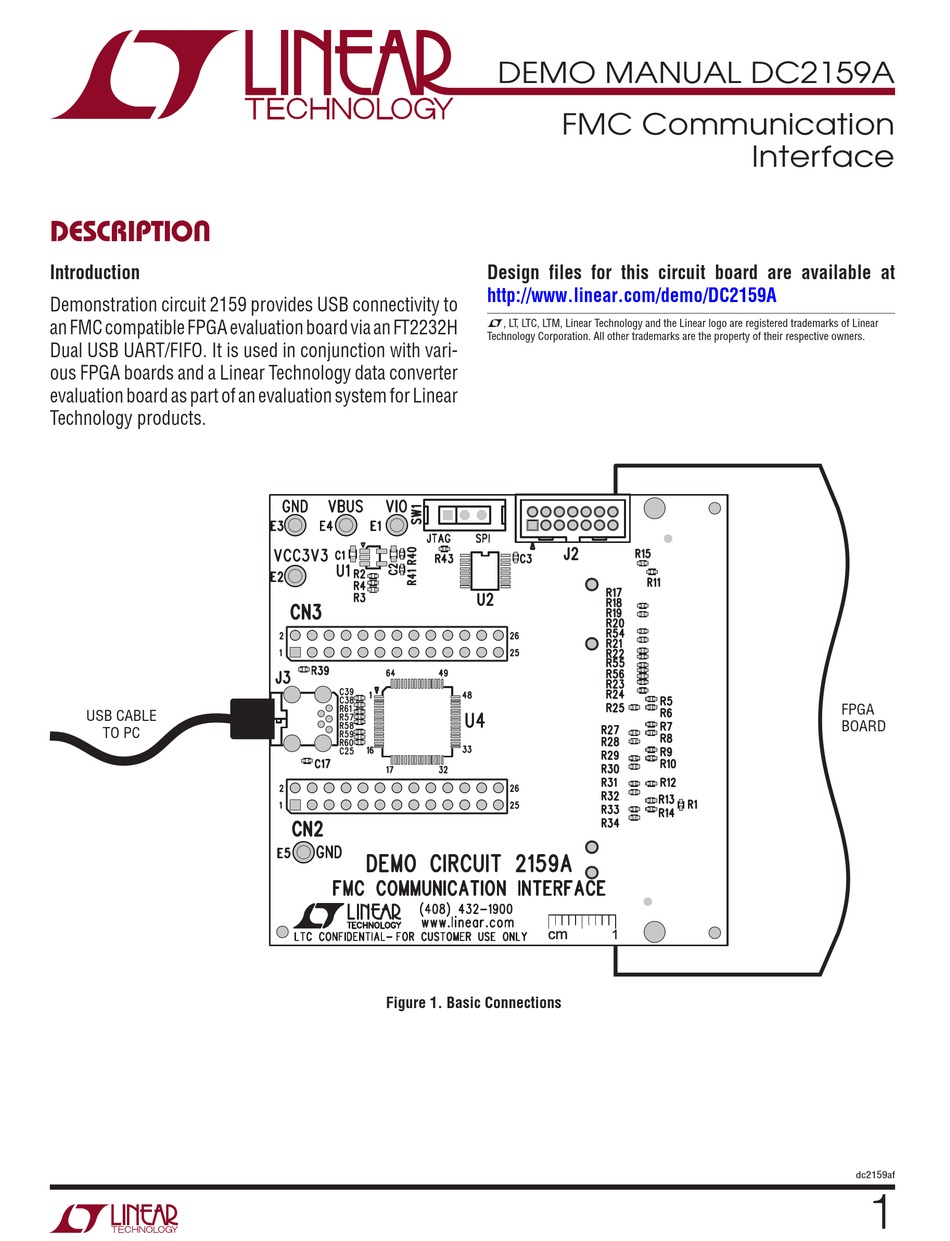

DESCRIPTION
Introduction
Demonstration circuit 2159 provides USB connectivity to
an FMC compatible FPGA evaluation board via an FT2232H
Dual USB UART/FIFO. It is used in conjunction with vari-
ous FPGA boards and a Linear Technology data converter
evaluation board as part of an evaluation system for Linear
Technology products.
USB CABLE
TO PC
DEMO MANUAL DC2159A
FMC Communication
Design files for this circuit board are available at
http://www.linear.com/demo/DC2159A
L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear
Technology Corporation. All other trademarks are the property of their respective owners.
Figure 1. Basic Connections
Interface
FPGA
BOARD
dc2159af
1
Advertisement
Related Manuals for Linear Technology DC2159A
Summary of Contents for Linear Technology DC2159A
- Page 1 Demonstration circuit 2159 provides USB connectivity to an FMC compatible FPGA evaluation board via an FT2232H L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear Technology Corporation. All other trademarks are the property of their respective owners.
-
Page 2: Quick Start Procedure
DEMO MANUAL DC2159A QUICK START PROCEDURE Make sure FPGA board power is OFF and no USB cable FPGA board is powered up; inserting the USB cable without is connected. Seat the FMC connector on the back side I/O power causes incorrect identification of the FT2232.) -
Page 3: Parts List
DEMO MANUAL DC2159A PARTS LIST ITEM REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER Required Circuit Components CN2, CN3 SOCKET, 2X13-100, HD2X13-100 SAMTEC, BCS-113-L-D-TE C1, C2 CAP., X5R, 10µF 6.3V, 20%, 0603 AVX, 06036D106MAT2A C3, C5-C14, C24, C25 CAP., X7R, 0.1µF, 10V, 10%, 0402... - Page 4 DEMO MANUAL DC2159A SCHEMATIC DIAGRAM dc2159af...
-
Page 5: Schematic Diagram
Information furnished by Linear Technology Corporation is believed to be accurate and reliable. However, no responsibility is assumed for its use. Linear Technology Corporation makes no representa- tion that the interconnection of its circuits as described herein will not infringe on existing patent rights. - Page 6 Linear Technology Corporation (LTC) provides the enclosed product(s) under the following AS IS conditions: This demonstration board (DEMO BOARD) kit being sold or provided by Linear Technology is intended for use for ENGINEERING DEVELOPMENT OR EVALUATION PURPOSES ONLY and is not provided by LTC for commercial use. As such, the DEMO BOARD herein may not be complete in terms of required design-, marketing-, and/or manufacturing-related protective considerations, including but not limited to product safety measures typically found in finished commercial goods.
- Page 7 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Analog Devices Inc. DC2159A...
