OTC Mounting System–Low-Profile Height Service Body, Flip Top Lid Model
Pages 2-4
Packaging Contents
Pages 5–8
FBM Mounting
Page 9
Mounting to OTC Channels
Pages 9–11
Installing Mount Braces
PRIME DESIGN, A SAFE FLEET BRAND
Address: 580 Opperman Drive, Eagan, MN 55123 ▪ Toll Free: 1.8.PRIME.RACK
Fax: 651-552-1799 ▪ Email: info@primedesign.net ▪ Website: www.primedesign.net
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Safe Fleet Prime Design FBM-1063
Summary of Contents for Safe Fleet Prime Design FBM-1063

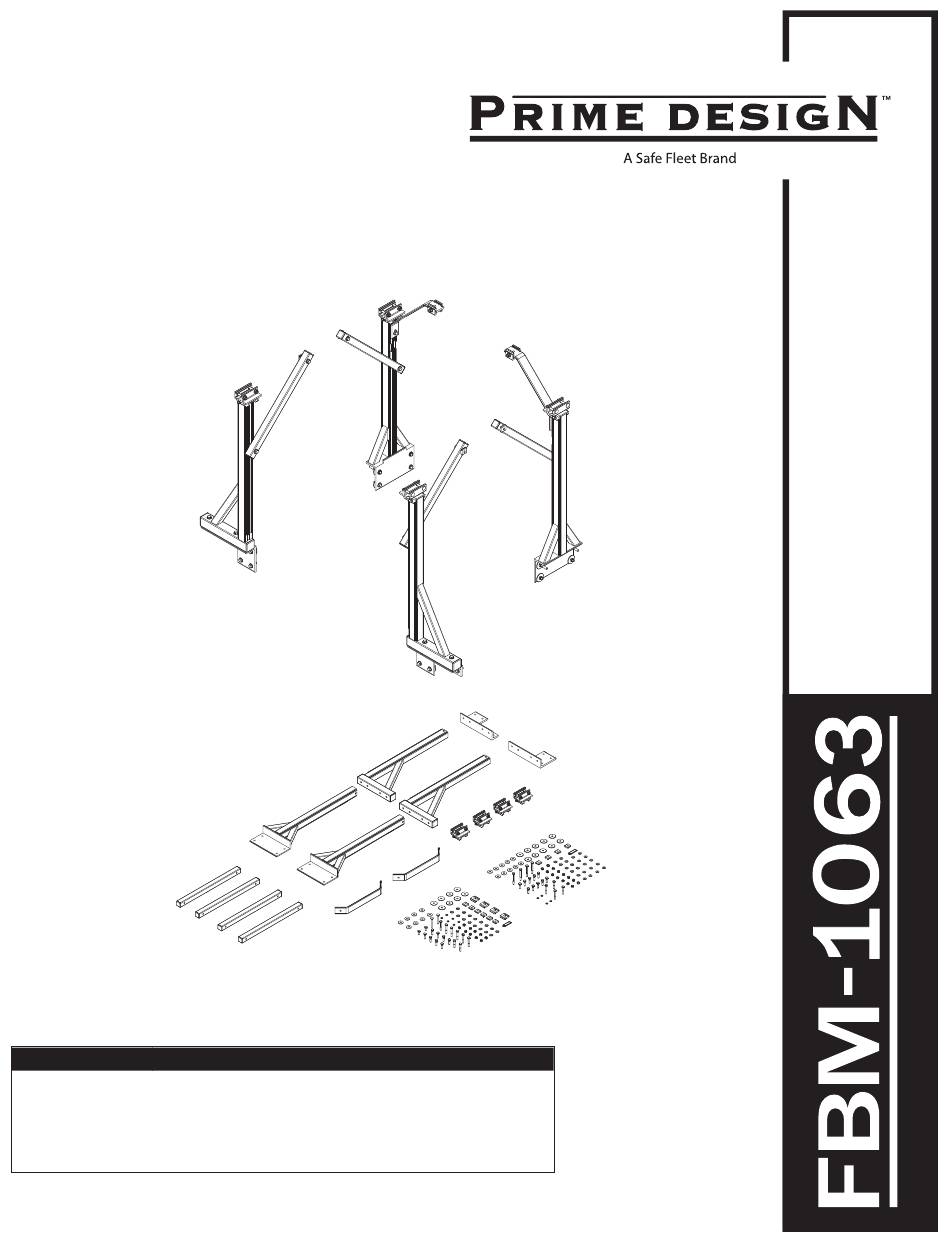

- Page 1 Pages 5–8 FBM Mounting Page 9 Mounting to OTC Channels Pages 9–11 Installing Mount Braces PRIME DESIGN, A SAFE FLEET BRAND Address: 580 Opperman Drive, Eagan, MN 55123 ▪ Toll Free: 1.8.PRIME.RACK Fax: 651-552-1799 ▪ Email: info@primedesign.net ▪ Website: www.primedesign.net...
- Page 2 CONTENTS OVERVIEW Front Base Mounting Leg........(Qty 2) Rear Base Mounting Leg ........(Qty 2) Mounting Leg Connector Assembly ..... (Qty 4) Rear Mounting Leg Bracket ........(Qty 2) Crossbar Mounting Brace ........(Qty 2) Channel Mounting Brace ........(Qty 4) Prime Design Limited Warranty.
- Page 3 HKT-8065 Front Mount Hardware Kit M8 x 60MM Carriage Bolt (2X) M8 x 55MM (6X) M8 x 20MM (2X) M8 x 30MM (8X) M8 x 45MM (2X) M8 Lock Nut (10X) " Flat Washer (16X) Lock Washer (6X) M8 Nut Bracket (6X) Fender Washer (8X) Rubber Washer...
- Page 4 HKT-8064 Rear Mount Hardware Kit M8 x 30MM (10X) M8 x 45MM (2X) M8 x 55MM (2X) M8 x 70MM (4X) M8 Lock Nut (14X) " Flat Washer (22X) Lock Washer (4X) Rubber Washer Fender Washer (10X) (10X) M8 Nut Bracket (4X) Anti-Seize Prime Design Limited Warranty.
- Page 5 OVERVIEW: MOUNTING TO OTC CHANNELS NOTE: Channels and Crossbars in this Overview are shown for reference only. Specific configurations are determined by Service Body size, and Crossbar preferences. REAR MOUNTING LEG BRACKETS LEG CONNECTORS Install Rear Mounting Leg Brackets onto the Rear Mounting Install Mounting Leg Connectors onto the Base Mounting Legs as shown and torque to 90 in-lbs.
- Page 6 FRONT MOUNTING LEG PLACEMENT Re-install Mounting Leg Connector Hardware as shown. Install Front Mounting Legs onto the front inside corner of your service body as shown. Right and Left Front Legs Aligned NOTE: Depending on the application, isolation tape (not included) may be required to prevent the chance of bimetallic corrosion.
- Page 7 FASTENING FRONT MOUNTING LEGS Install Hardware with the appropriate bolt size needed for your service body. Torque to 90 in-lbs. M8 x 30MM M8 x 55MM (Upper) (Upper) Flat Washer Flat Washer M8 x 30MM M8 x 30MM (Lower) (Lower) Rubber Washer Rubber Washer Fender Washer...
- Page 8 REAR MOUNTING LEGS NOTE: Refer to OEM recommendations for the instllation of a support or backing plate behind the mounts. Install Rear Mounting Legs onto the outside rear of your service body as shown. Align Front and Back Legs Avoid Rear Light NOTE: Depending on the application, isolation tape (not included) may be required to prevent the chance of...
- Page 9 MOUNTING TO CHANNELS Crossbars must be installed directly over the the rear and front mounts. Loosen all indicated Nuts to install the Channels. Do not tighten until Step 5.3. Torque all Mounting Bracket bolts to 90 in-lbs REAR MOUNTING FOOT FRONT MOUNTING FOOT NUT BRACKETS NUT BRACKETS...
- Page 10 MOUNTING LEG–CHANNEL Install Braces into the inside of the Channels as shown. BRACE INSTALLATION M8 x 45MM Lock Washer Flat Washer Keep Nut Bracket loose for installation into inner Channel sides ADDITIONAL FRONT MOUNTING Install the lower end of the Braces into the Mounting FOOT NUT BRACKETS Foot channels using the Nut Brackets installed...
- Page 11 MID CROSSBAR Install the mid Crossbar Braces as shown. Do not torque until Step 9.3. BRACE INSTALLATION M8 x 60MM Carriage Bolt Flat Washer Locknut Finger-tighten Install the mid Crossbar Brace Hardware into the top Nut Bracket from Step 8 as shown. Torque all Hardware to 90 in-lbs.
- Page 12 USAM-FBM1063-US01 Rev-A 0920...
