Band-it C00269 Quick Start Manual

Operating
Instructions
1

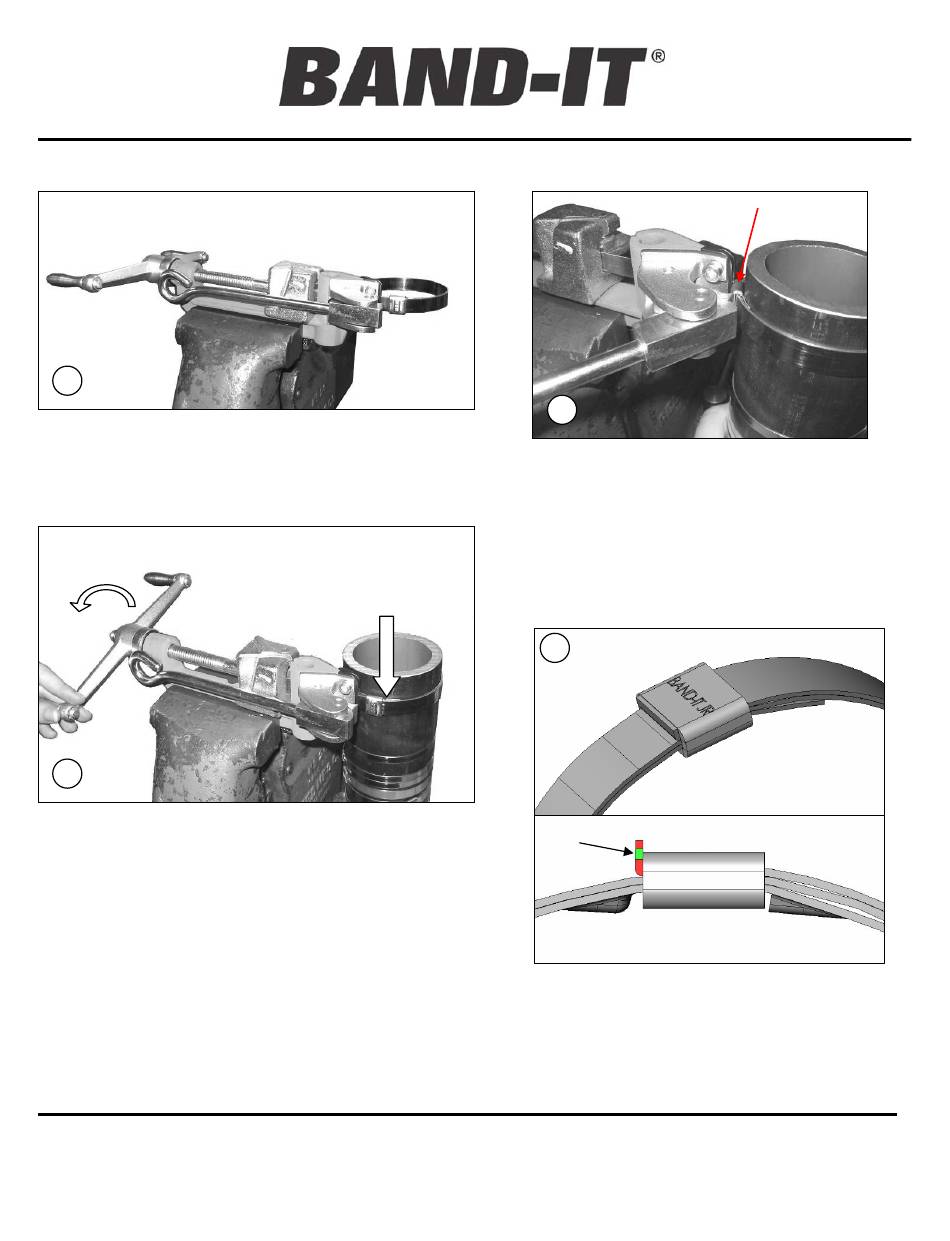

Place BAND-IT tool in vise. Insert clamp in tool and
grip end of band by Band Gripper Lever.
The spring load of the band gripper is not
intended to secure and prevent the band from
slipping during the tension process.
2
Insert hose in clamp. Take up clamp by turning the
handle of BAND-IT TOOL clockwise while holding
band gripper tight against band. To feel movement of
band, place finger on BAND-IT BAND at buckle edge
(shown by arrow) while tensioning with tool handle.
When you no longer feel band moving through
buckle, MAXIMUM
EXERTED BY BAND-IT BAND.
NOTE: USE OF VISE IS OPTIONAL
FOR BAND WIDTHS OF ½" OR
LESS. WE STRONGLY SUGGEST
SECURING THE TOOL IN A VISE
FOR CLAMPS WIDER THAN ½".
BAND-IT-IDEX, Inc.
A Unit of IDEX Corporation
4799 Dahlia Street
Denver, CO 80216-3070 USA
P: 1-800-525-0758
F: 1-800-624-3925

To Install a BAND-IT Junior Clamp:

NOTE:
PRESSURE HAS BEEN
www.BAND-IT-IDEX.com
3
A. Roll hose over approximately 30°,
BACKING OFF TENSION HANDLE ½ to 1
turn only through course of rollover,
depending on type and size of hose.
B. Grip buckle with hook in nose by
pushing cutter handle. Push cutter handle
farther to cut the band completing BAND-
IT JR. Clamp.
4
CORRECT
The finished BAND-IT JR. Smooth I.D. Clamp.
Lip lock will be bent upward 90° and have a
cut-off edge (shown in green) that is flush to
the edge of the buckle. Edges shown in red
are too high or too low and may result in lower
lock strength or sharp edges.
Page 1 of 3
C00269
JR. Hand Tool
B
Document # P45087 Rev. I
© Copyright
BAND-IT-IDEX, Inc. 2012
All rights reserved
