CHAPTER 2

SW4, SW5, SW7, and JP1

2.1
SW4 and SW5 are a DIP switch to select an operation mode.
SW7 is a slide switch to select an operation mode.
JP1 is a jumper to select a power source.
2.1.1

Flash Programming Mode

Flash EEPROM on the 78K0/KF1+ MCU can be programmed using the attached software "PG-FPL" in
your PC, which is connected to the MCU board via USB cable, if the following switch and jumper
setting is made.
12
SWITCHES, JUMPERS, AND LEDS

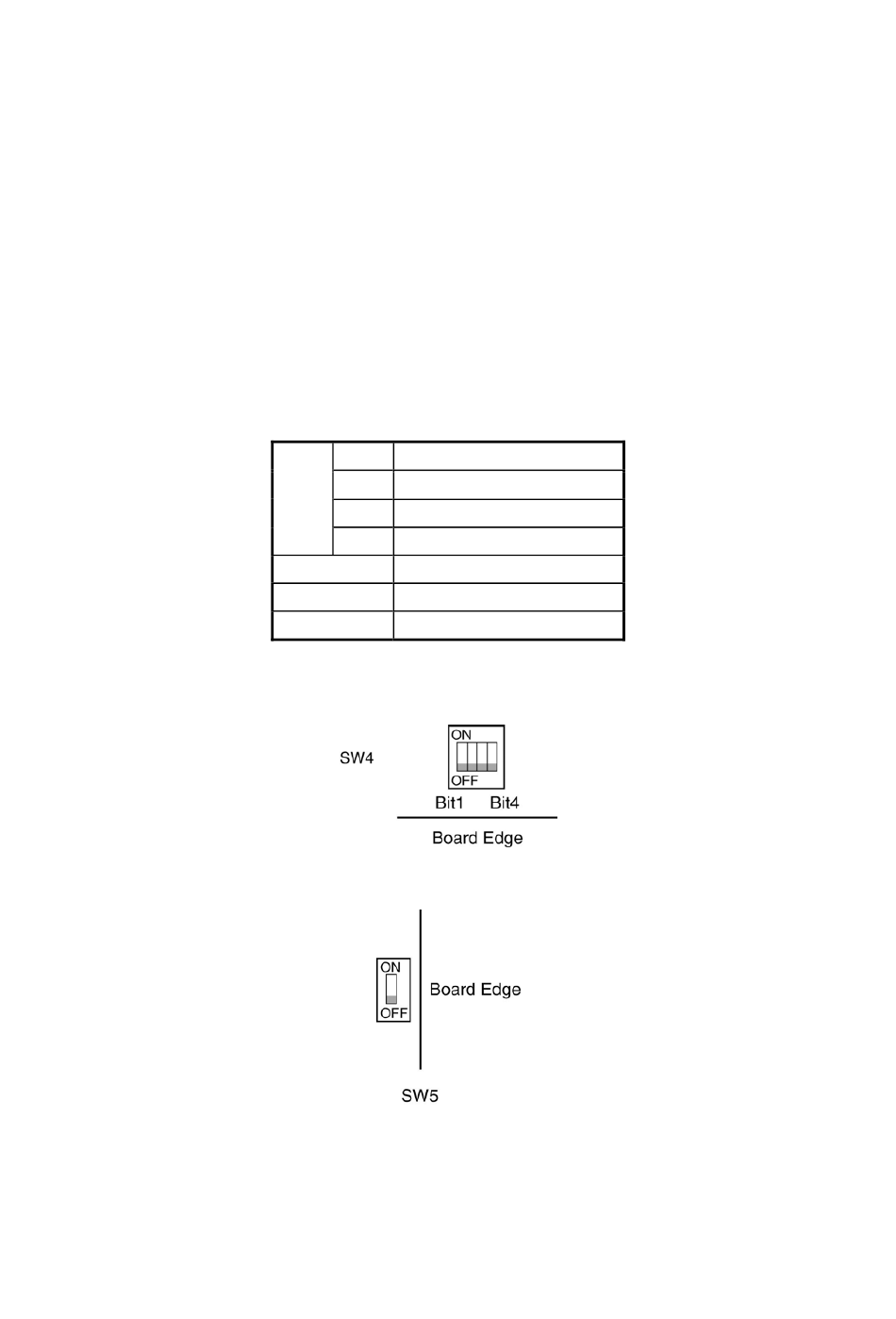

Flash Programming Mode
SW4
Bit 1
OFF
Bit 2
OFF
Bit 3
OFF
Bit 4
OFF
SW5
ON
SW7
UART
JP1
USB
UM U17586EE1V0UM00
