INSTRUCTION PAPER

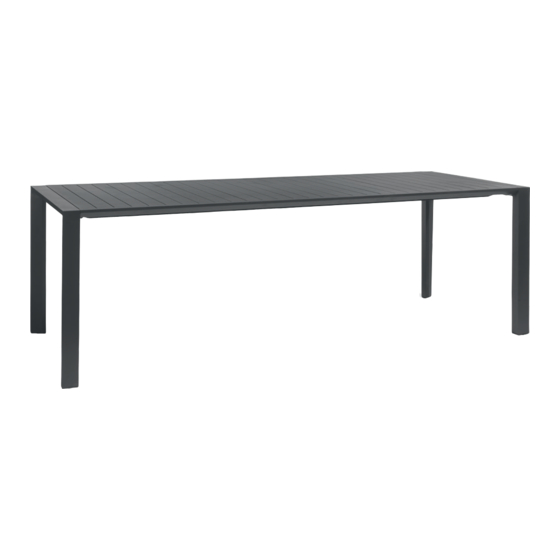

METRIS | Dining table 226x90
Start by unpacking everything carefully. Make sure to cover the floor to prevent any damage or scratching (you can use the cardboard box for this).
CONTENT
A
8x bolt (M8x40mm)
E
4x bolt (M6x15mm)
I
1x alu table top
STEP 1: CONNECT ALUMINIUM LEGS
Use the hex keys (D,H) to assemble the aluminium legs (J) onto the table top (I) as shown in the picture. Make sure you follow the correct order
as indicated by the letters in the picture. Repeat this action for the other side.
B
8x washer (M8)
F
4x washer (M6)
J
2x alu legs
C
8x spring washer (M8)
G
4x spring washer (M6)
F
B
C
A
H E G
D
1x hex key (6)
H
1x hex key (5)
D
1/2
