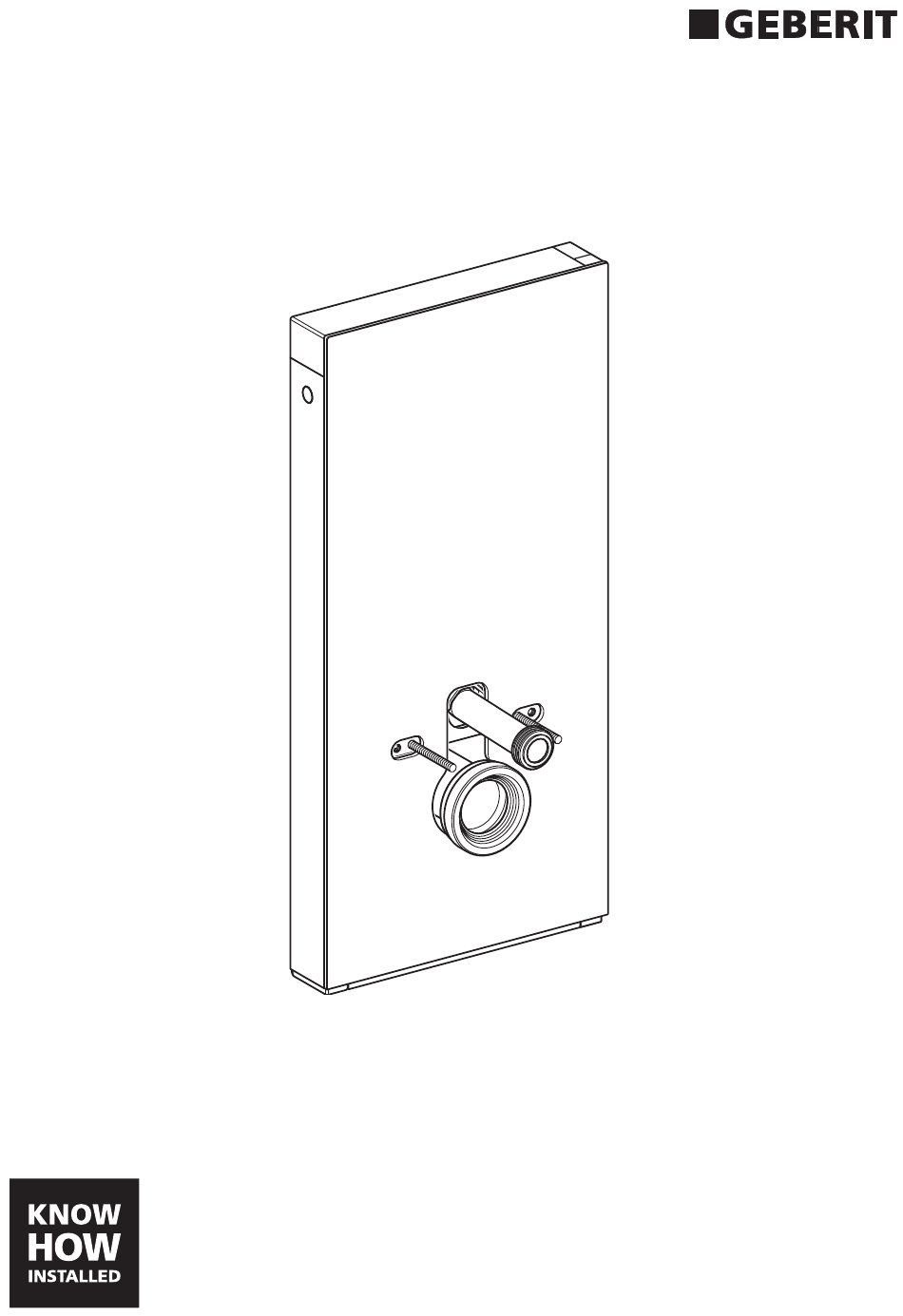

- Page 1 Installation Manual Montageanleitung Instructions de montage Istruzioni per il montaggio...
- Page 2 16.88 9.75 18.50 17.38 10.25 18.75 17.63 10.50 Installation Requirements To install Geberit Monolith, a 2 x 6" or 2 x 4" wood frame or metal frame construction is required. Studs must be placed where Geberit Monolith will be positioned.
- Page 3 Drainage elbow installation Water supply installation Stub out water supply line. Angle stop valve to be Centerline of new installed later. Geberit Monolith Top view installation 8 ½ " Center of HDPE 90 degree elbow (supplied) Front view 5" 1"...
- Page 4 Frame installation Option 1: Tile wall 8 ½ " ø 3/8 '' ½ " 5" 0 F . F . (2) 2 x 4 to ceiling OR (1) 2 x 6 to ceiling with centers as shown Strap drainage elbow to studs to prevent from 13 mm falling back into wall.
- Page 5 Be sure this mark is lined up at elevation "X". It should also be equal to center of drainage elbow. T 20 Fine leveling adjustment. Raise or lower sides as needed. 5 mm CAUTION Do not overtighten. 13 mm...
- Page 6 Option 2: Painted wall ø 3/8 '' ø 11/64 '' ø 3/8 '' CAUTION F . F . F . F . Do not overtighten. 13 mm 13 mm ≥ To complete the installaton continue on page 8.
- Page 7 Be sure this mark is lined up at elevation "X". It should also be equal to center of drainage elbow. T 20 Fine leveling adjustment. Raise or lower sides as needed. 13 mm ≥ CAUTION Do not overtighten. 13 mm...
- Page 8 Common installation steps (tile and painted wall) CAUTION ø 11/64 '' Do not overtighten. 13 mm CAUTION Do not overtighten. CAUTION 13 mm Do not overtighten. 13 mm...
- Page 9 CAUTION Do not forget sealing washer.
- Page 10 00:00:45 For water supply on right, filling valve can remain in position as supplied. For water supply on left, filling valve must be repositioned (see next steps).
- Page 11 Use ceramic or data sheet to find dimension T1. Hand tight + 1/4 turn. Larger diameter end Smaller diameter...
- Page 12 CAUTION Check that inserts are fully unlocked before inserting into Geberit Monolith. Glass must have even offset all around. PH 3 180°...
- Page 15 19 mm “Click”...
- Page 16 Geberit 2100 Clearwater Drive, Des Plaines, IL 60018-5999 Phone: (847) 803 5000 • Fax: 847/803-5454 For Technical Assistance 800 / TEC-TRUE (800-832-8783) www.geberit.us Geberit International AG Schachenstrasse 77 CH-8645 Jona dokumentation@geberit.com www.geberit.com 965.866.00.0 (00) D54139-001 © 04-2012...
