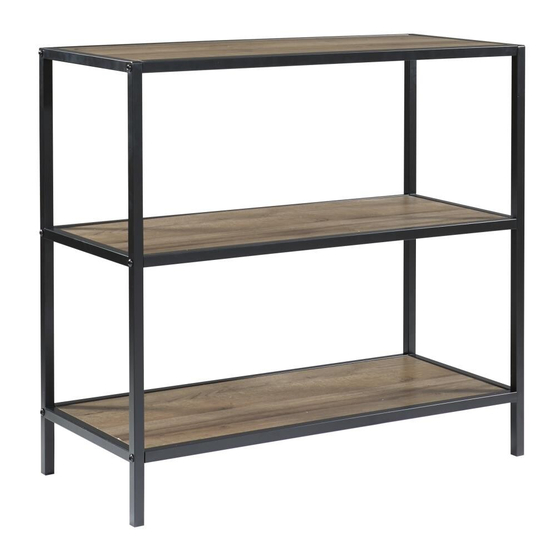

3 shelf bookcase

Advertisement

August, 2019
BRY527
BRAYDON 3 SHELF BOOKCASE

Assembly Instructions - Important:

Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when
assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or
information on other products, please visit our website: www.officestar.net or call or write us.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BRAYDON BRY527 and is the answer not in the manual?

Questions and answers

Summary of Contents for OSP Home Furnishings BRAYDON BRY527

  • Page 1 August, 2019 BRY527 BRAYDON 3 SHELF BOOKCASE Assembly Instructions - Important: Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or information on other products, please visit our website: www.officestar.net or call or write us.
  • Page 2 LIMITED WARRANTY OSP Home Furnishings™ warrants to the original purchaser that this product will be free from defects in material and workmanship as described below. OSP Home Furnishings™ will repair or replace, at its option, without charge to the original purchaser only, defective products or parts for one (1) year from the date of purchase.
  • Page 3 PARTS (A) Frame (2 PCS) (B) Shelf (3 PCS) (C) Support (6 PCS) HARDWARE LIST DRAWING DESCRIPTION SIZE QUANTITY Screw #8 x 13mm 18 PCS + 2 EXTRA Bolt M8 x 40mm 12 PCS + 1 EXTRA Allen Wrench 1 PC Phillips Screwdriver also needed for assembly (not provided).
  • Page 4 STEP 1 DO NOT FULLY TIGHTEN SCREWS (1). REPEAT FOR TWO REMAINING SHELVES. STEP 2 DO NOT FULLY TIGHTEN BOLTS (2).
  • Page 5 STEP 3 APPLY FIRM PRESSURE TO ALIGN & FULLY TIGHTEN ALL BOLTS (2) USING ALLEN WRENCH (3) AND SCREWS (1) USING PHILLIPS SCREWDRIVER (NOT PROVIDED).
