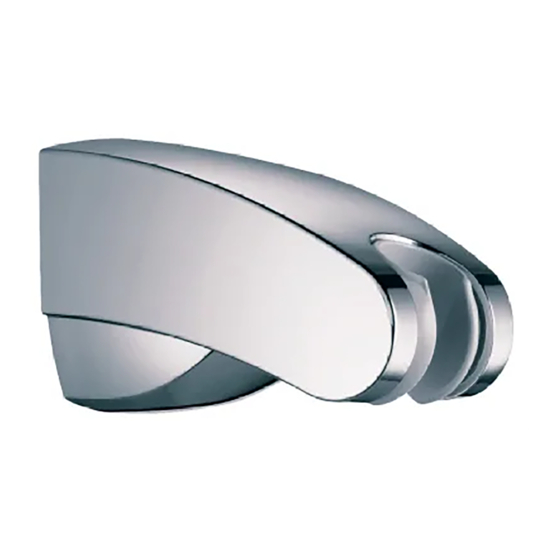

- Page 1 Installation Instructions / Warranty Porter’E Handshower Holder 27504XXX Porter‘E Handshower Holder with Outlet 27508XX1...
-
Page 2: Installation
Porter’E Handshower Holder 27504XXX Installation Drill the holes with a 6 mm bit suitable Mark the wall surface for the screw for the wall surface. holes, using the mounting piece as a template. IMPORTANT: Swivel the pivot ball as Install the anchors. Seal around the shown in the diagram. - Page 3 Porter’E Handshower Holder with Outlet 27508XXX Installation: Install a ½” male nipple, extending 5/8” outside the surface of the finished wall. Seal the wall around the nipple with a compatible, non-staining, waterproof sealant. Wrap the threads on the nipple with a good quality plumbers’ thread tape.
-
Page 4: Backflow Prevention
Attach the hose with black rubber washer to the outlet of the Porter”E. User Instructions: Place a screen washer in the end of the conical hose end connector. Screw the hose onto the handshower. Guide the hose into the pivot ball on the Porter’E. -
Page 5: Cleaning Procedures
Cleaning Recommendation for Hansgrohe Products Modern faucetry and shower products utilize a combination of materials to comply with the needs of the market with regard to design and functionality. To avoid damage, it is necessary to use some caution when cleaning. Damage caused by improper treatment is not covered under the Hansgrohe warranty. -
Page 6: Limited Lifetime Consumer Warranty
Limited Lifetime Consumer Warranty This product has been manufactured and tested to the highest quality standards by Hansgrohe, Inc. (“Hansgrohe”). This warranty is limited to Hansgrohe products which are purchased by a consumer in the United States after March 1, 1996, and installed in either the United States or Canada. WHO IS COVERED BY THE WARRANTY This warranty extends to the original consumer purchaser only. -
Page 7: Exclusions And Limitations
When warranty service is completed, any repaired or replacement product or part will be returned to you postage prepaid. EXCLUSIONS AND LIMITATIONS REPAIR OR REPLACEMENT (OR, IN LIMITED CIRCUMSTANCES, REFUND OF THE PURCHASE PRICE) AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE PURCHASER. - Page 8 Hansgrohe Inc. 1490 Bluegrass Lakes Pkwy Alpharetta GA 30004 Phone: 770 360 9880 Internet: www.hansgrohe-USA.com...
