Emerson Spence Max-Flo Series Instruction Manual

Instruction Manual
VCIMD-14919
November 2021
Spence Max-Flo Series High Capacity
Steam Traps
▲
Failure to follow these instructions or
to properly install and maintain this
equipment could result in an explosion,
fire and/or chemical contamination
causing property damage and personal
injury or death.
Max-Flo Series steam trap must be
installed, operated and maintained
in accordance with federal, state and
local codes, rules and regulations and
Emerson instructions.
If leak develops in the system, service
to the unit may be required. Failure
to correct trouble could result in a
hazardous condition.
Installation, operation and maintenance
procedures performed by unqualified
personnel may result in improper
adjustment and unsafe operation. Either
condition may result in equipment
damage or personal injury. Only a
qualified person shall install or service
the Max-Flo Series steam trap.
Introduction
Scope of the Manual
This manual provides instructions for installation,
maintenance and parts ordering for the Max-Flo Series.
Product Description
Max-Flo Series are float and thermostatic steam
traps. Float actuates the valve via a hinged lever
and linkage. Air vent is balanced-pressure design
with stainless steel welded encapsulated bellows
capable of discharging air and non-condensable gases
continuously for heavy load process.. Trap is cast iron
bodied suitable for pressures to 175 psi / 12.1 bar with
NPT connection.
WARNING
Principle of Operation
On startup, air and non-condensible gases enter
the trap and are automatically vented through an
accurate balanced-pressure internal thermostatic air
vent. As condensate enters the trap, the float and
lever mechanism is raised, lifting the valve off the
seat, discharging the condensate. Condensate will
continue to be discharged at the same rate at which it
is entering. Any air or non-condensible gas that may
accumulate will be continually and efficiently passed
by the thermostatic air vent.
Installation
Personal injury, property damage,
equipment damage or leakage due
to escaping steam or bursting of
pressure containing parts may result
if this equipment is over pressured or
is installed where service conditions
could exceed the limits given in the
www.SpenceValve.com www.SpenceValve.com
Max-Flo Series

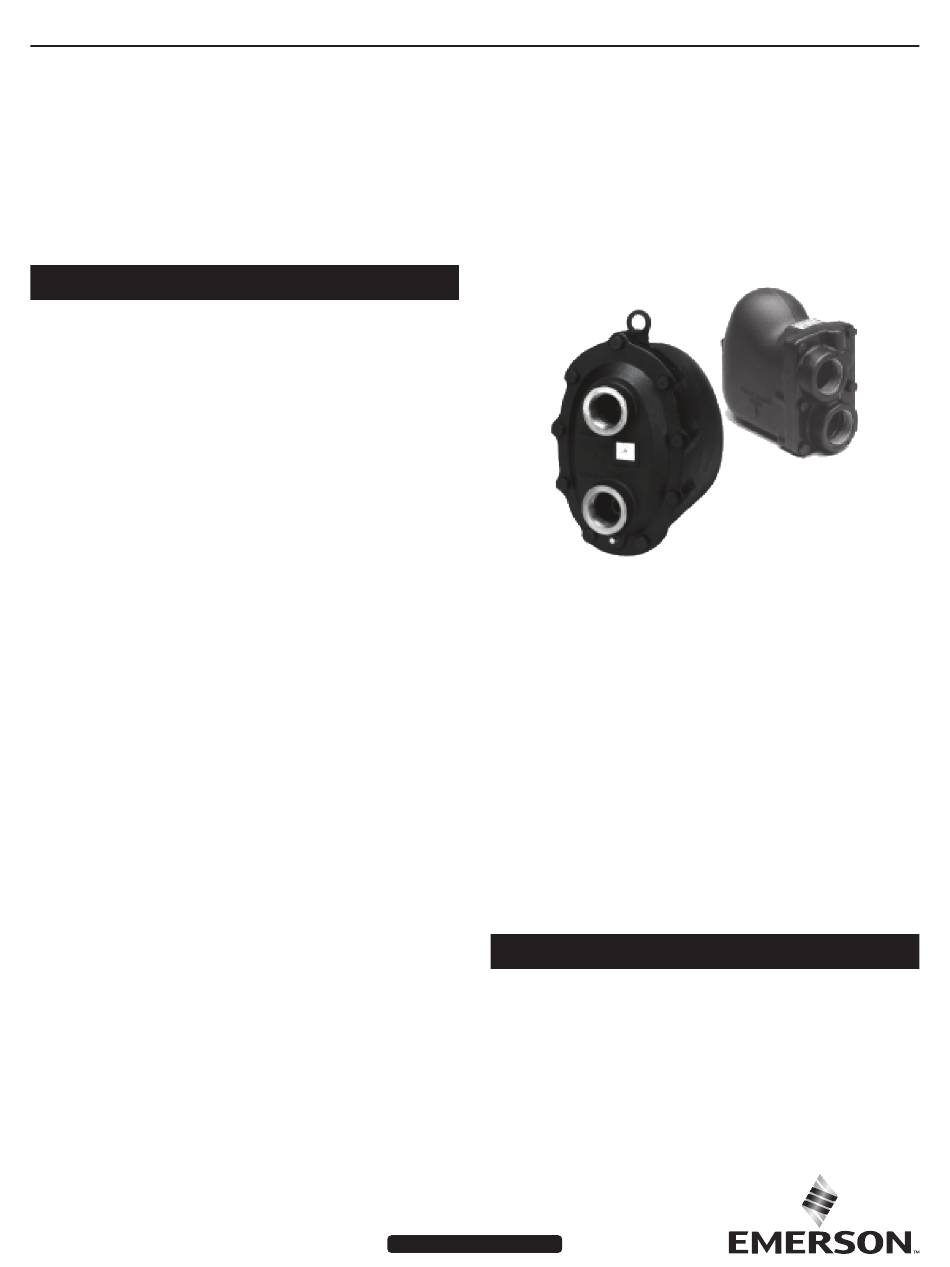

Figure 1. Max-Flo Series Steam Trap
▲
WARNING
