Emerson TARTARINI SA/2 Instruction Manual

Instruction Manual
D103653X012
January 2015
Type SA/2 Pressure Stabilizer
SUMMARY
Introduction ........................................................................ 1
Characteristics ................................................................... 1
Labelling ............................................................................ 2
Dimensions and Weight ..................................................... 2
Installation .......................................................................... 3
Periodic Checks ................................................................. 3
SEP Statement .................................................................. 3
ATEX Requirements .......................................................... 3
Maintenance ...................................................................... 3
Waste Disposal Requirements ........................................... 3
Parts Lists .......................................................................... 4
Schematic Assemblies .......................................................

INTRODUCTION

Scope of Manual
This manual provides installation, maintenance, and spare parts
for the Type SA/2 pressure stabilizer.
Product Description
Type SA/2 is a pressure stabilizer unit equipped with a
5μ filtering degree filter and is suitable for heating.
Type SA/2 unit is installed on the feeding line to the
PRX Series pilots.
This product has been designed to be used with fuel gases of
1st and 2nd family according to EN 437, and with other non
aggressive and non fuel gases. For any other gases, other than
natural gas, please contact your local sales agent.

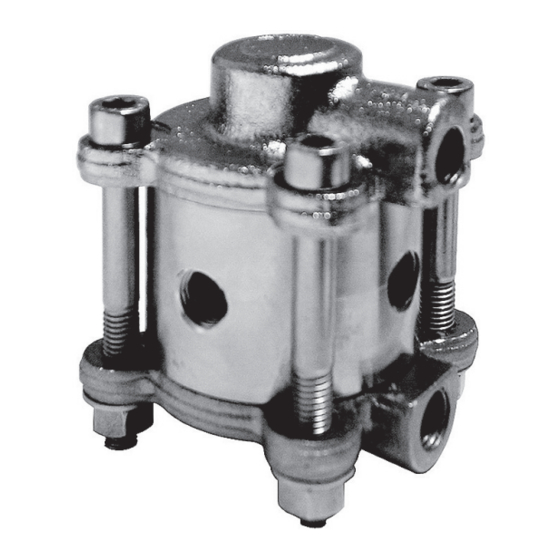

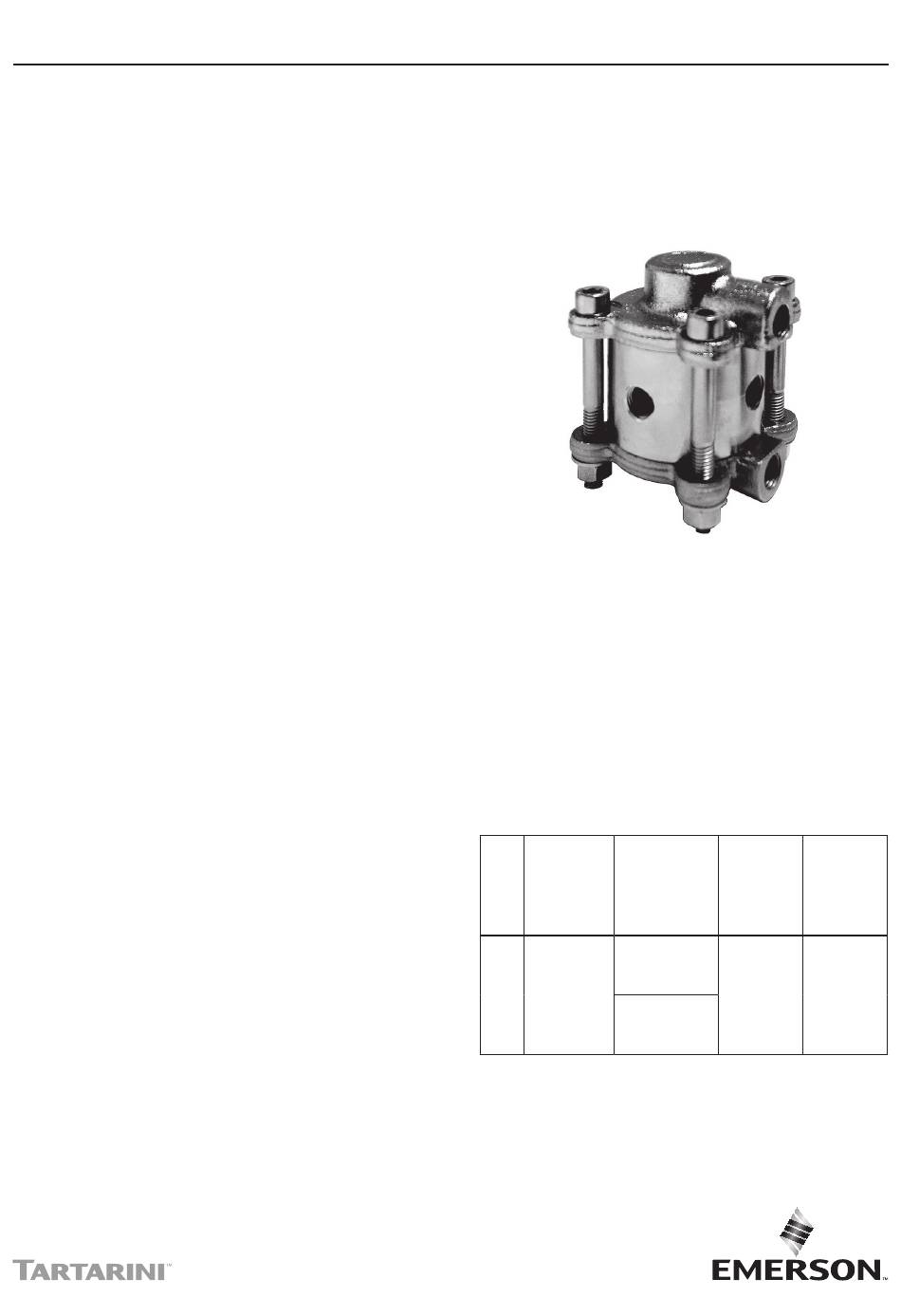

Figure 1. Type SA/2 Pressure Stabilizer
5

CHARACTERISTICS

ALLOWABLE
TYPE PRESSURE
PS, bar
SA/2 100
1/4 NPT female threaded connections.
Type SA/2
Table 1. Technical Features
ALLOWABLE
TEMPERATURE SUPPLIED
RANGE PRESSURE
TS
Class 1
-10 to 60°C
3 bar +
Downstream
pressure
Class 2
-20 to 60°C
BODY AND
COVERS
MATERIAL
Steel
