- Page 1 Shenzhen Linshang Technology Co., Ltd. LS126C UV Light Meter User Manual V2.01 Scan the QR code download and install the App Please read this manual carefully before using and reserve it for reference. 6-3-2021 Page 1 of 11...
-
Page 2: Product Introduction

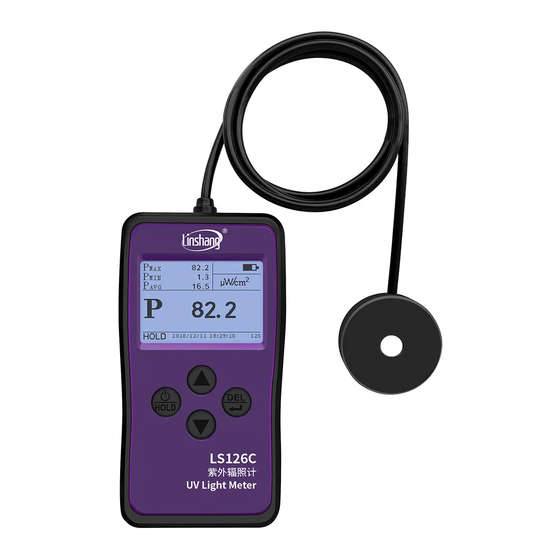

The UVC is also known as short-wave sterilization ultraviolet light. 253.7nm wavelength ultraviolet radiation from low pressure mercury lamp is widely used in ultraviolet sterilization industry. LS126C UV light meter is specially designed to measure UVC intensity and energy values, which is widely applied in hospitals, CDC, pharmaceutical companies, FDA, etc. -
Page 3: Spectral Response Curve
IV. Product features Specially designed for 253.7nm UV germicidal lamps (low-pressure mercury lamps). Self-equipped with Bluetooth, Mobile phone APP can get data from LS126C through Bluetooth Wireless Transmission. Self-equipped with a real-time clock that can be used to trace the accurate time of the measurement result. -
Page 4: Power On/Off
Shenzhen Linshang Technology Co., Ltd. Advanced digital probe technology, by which analog signal conversion to digital signal on the probe. V. Operations 1. Power on/off Power on: Press “ ” to power on the instrument. After powering on, the instrument displays the information of the calibration date, production date, version number and serial number. - Page 5 Shenzhen Linshang Technology Co., Ltd. A. Select whether automatically power off or not (Auto Off: ON/OFF) Short press the “ ” or “ ” button to select ON/OFF Selecting ON indicates that the instrument automatically powers off as long as no operation within the set time.
-
Page 6: Measurement Mode
Shenzhen Linshang Technology Co., Ltd. Short press “ ” or “ ” button to set the storage interval, short press “ ” button to confirm the setting. D. Set RTC Time: ON/OFF Short press the “ ” or “ ” button to select ON/OFF Select ON to set the RTC. - Page 7 Shenzhen Linshang Technology Co., Ltd. In the measurement mode, if the backlight is off, press the “ ” button to light the backlight; if the backlight is already lit, short press the “ ” button, and the “HOLD” icon will be displayed in the lower left corner of the interface.
- Page 8 Shenzhen Linshang Technology Co., Ltd. 5. APP operation The instrument provides the Bluetooth wireless transmission function and a mobile phone APP, through which the user can remotely view measurement data. The App supports Android operating system 5.0 and above. You can use your mobile browser or WeChat to scan the QR code on the cover page.
- Page 9 Shenzhen Linshang Technology Co., Ltd. 2. The radiation intensity of the new 30W straight tube ultraviolet lamp is greater than 100μW/cm2 as qualified. 3. The radiation intensity of the 30W straight tube ultraviolet lamp in use is greater than 70μW/cm2 as qualified.
-
Page 10: Packing List
Shenzhen Linshang Technology Co., Ltd. the UV lamp (the disinfection time is generally much longer than 10 minutes, and the instrument has been automatically shut down at this time). The tester enters the site to turn on the instrument, and the data displayed on the instrument is the last measuring data. - Page 11 Provide users with spare parts and lifelong maintenance services Provide the users with the meter calibration service Free technical support for long term Manufacturer: Shenzhen Linshang Technology Co., Ltd. Website: www.linshangtech.com Service hotline: 086-755-86263411 Email: sales21@linshangtech.com...
