VERSION # 21-04-05
1 / 13
MODEL #
CM3498PT
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America Heidelberg CM3498PT
Summary of Contents for Furniture of America Heidelberg CM3498PT

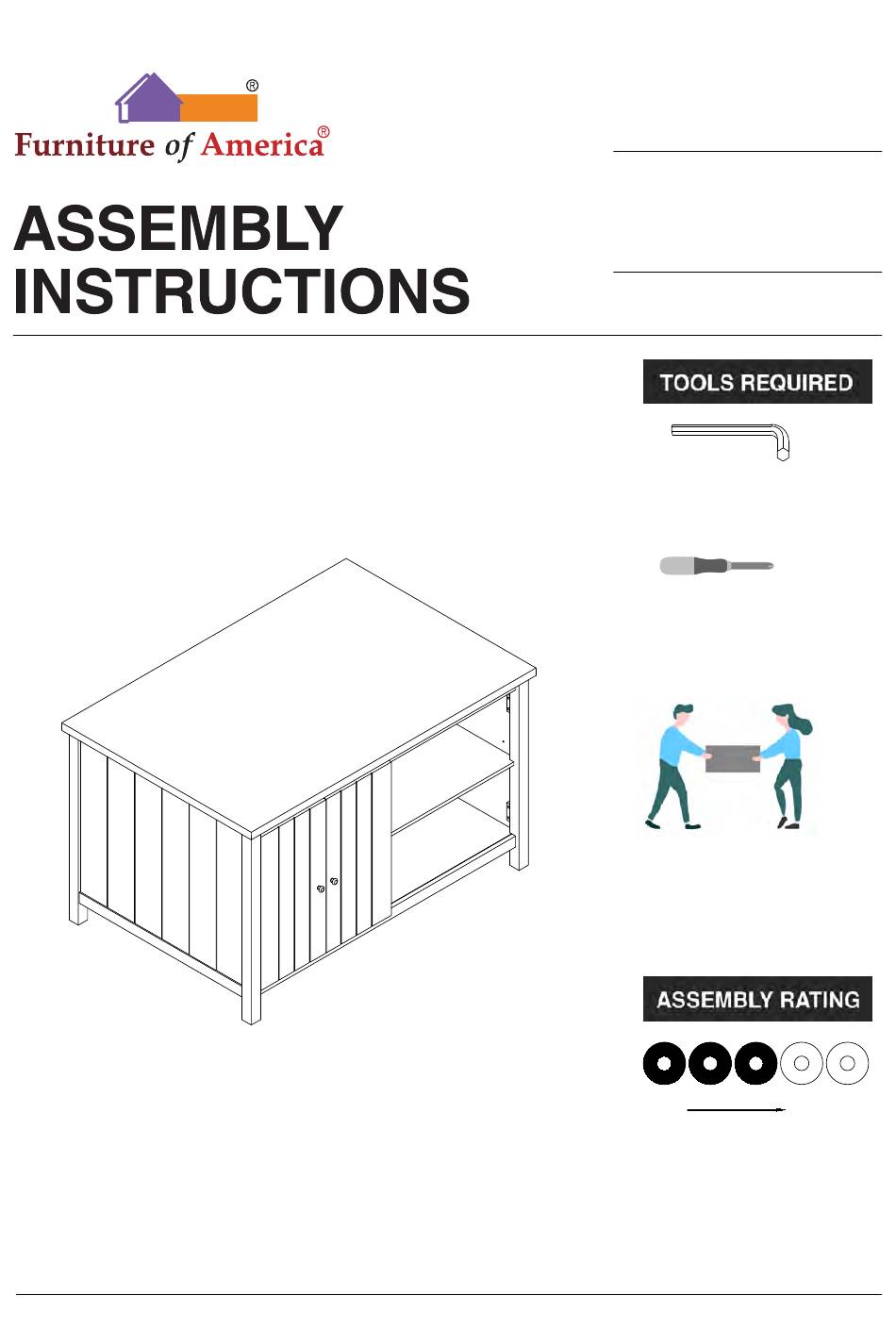

- Page 1 MODEL # CM3498PT Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / 13...
- Page 5 TABLE CM3498PT #1 1pc #2 1pc #3 1pc Left Frame Table Top Right Frame #4 1pc #5 1pc #6 1pc Bottom Panel Back Panel Bottom Divider #7 2pcs #8 1pc #9 2pcs Door(L&R) Shelf Support Leg 30x30x104mm #B 23pcs #C 23pcs #A 23pcs #D 2pcs Lock Washer...
- Page 6 #E 2pcs #G 8pcs #H 8pcs #F 24pcs Right door hinge Shelf Support Screw #3 x 12mm Screw #3 x 15mm #K 2pcs #M 16pcs #I 2pcs #L 3pcs Wooden Dowel Bolt Ø5/32" x 22mm Handle Screw #8 x 25mm Ø8 x 30mm #N 1pc Allen Wrench M4...
- Page 7 CM3498PT is packed in 2 cases Disignation Part Hardware Carton #A x 23pcs #B x 23pcs Top Table #C x 23pcs #D x 2pcs #E x 2pcs Bottom Panel #F x 24pcs CM3498PT-1 #G x 8pcs #H x 8pcs Back Panel #I x 2pcs #K x 2pcs #L x 3pcs...
- Page 8 ASSEMBLY INSTRUCTIONS Align panel (#6) to panel (#5), then secure by using bolts (#A) with washers (#B,C). Insert Part #5 x1pc dowels (#M) onto panels (#5,6). Part #6 x1pc Hardware #A x2pcs Hardware #B x2pcs Hardware #C x2pcs Hardware #M x8pcs Part #4 x1pc Hardware...
- Page 9 ASSEMBLY INSTRUCTIONS Part #8 x1pc Hardware #L x3pcs Secure by using screws (#L). Attach support leg (#8) onto the unit. #N #A #B #C Part #2 x1pc Part #3 x1pc Hardware #A x4pcs Hardware #B x4pcs Hardware #C x4pcs Hardware #M x4pcs Align side panels (#2,3) to the unit, then secure by using bolts...
- Page 10 ASSEMBLY INSTRUCTIONS Hardware #A x4pcs Secure by using bolts (#A) with Hardware #B x4pcs washers (#B,C). Hardware #C x4pcs #A #B Part #1 x1pc Hardware #A x10pcs Hardware #B x10pcs Hardware #C x10pcs Align panel (#1) to the unit, then secure by using bolts (#A) with washers (#B,C).
- Page 11 ASSEMBLY INSTRUCTIONS Insert shelf pins (#G) according to the desired height of the shelves Part #9 x2pcs (#9), then secure the shelf pins (#G) to the shelves (#9) by using Hardware #G x8pcs screws (#H). Hardware #H x8pcs Part #7 x2pcs Hardware #D x2pcs Hardware...
- Page 12 ASSEMBLY INSTRUCTIONS Hardware #F x 16pcs Align hinges (#D,E) to the unit, then secure by using screws (#F). Hardware #I x2pcs Hardware #K x2pcs Align knobs (#I) to the doors, then secure by using screws (#K). 12 / 13...
- Page 13 ASSEMBLY INSTRUCTIONS 13 / 13...
